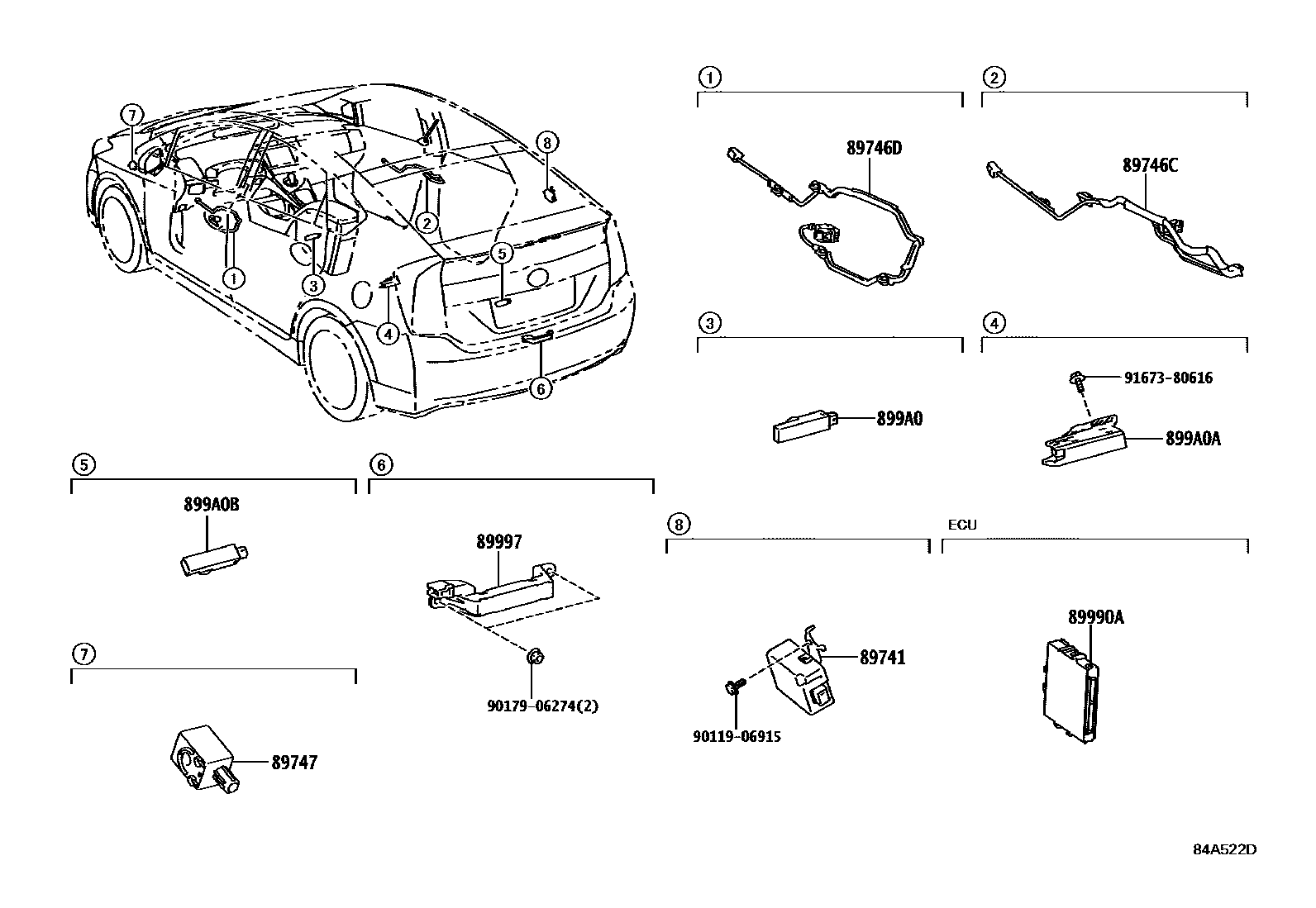

WIRELESS DOOR LOCK
89741RECEIVER, DOOR CONTROL
sub89740-47051
89746CHARNESS, ELECTRICAL KEY WIRE, NO.1
MEXICO SPEC&MEXICO UPPER PACKAGE
KOREA SPEC&KOREA UPPER PACKAGE
WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)
SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON)
89746DHARNESS, ELECTRICAL KEY WIRE, NO.2
89747BUZZER, WIRELESS DOOR LOCK
89990ACOMPUTER ASSY, SMART KEY
sub89990-47051
sub89990-47052
WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)
sub89990-47061
WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)
sub89990-47062
89997ANTENNA, ELECTRICAL KEY
MEXICO SPEC&MEXICO UPPER PACKAGE
KOREA SPEC&KOREA UPPER PACKAGE
WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)
SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON)
899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
9011906915
main90119-06915
9017906274
main90179-06274
9167380616
main91673-80616
12 parts on this diagram · 1 diagram in section
