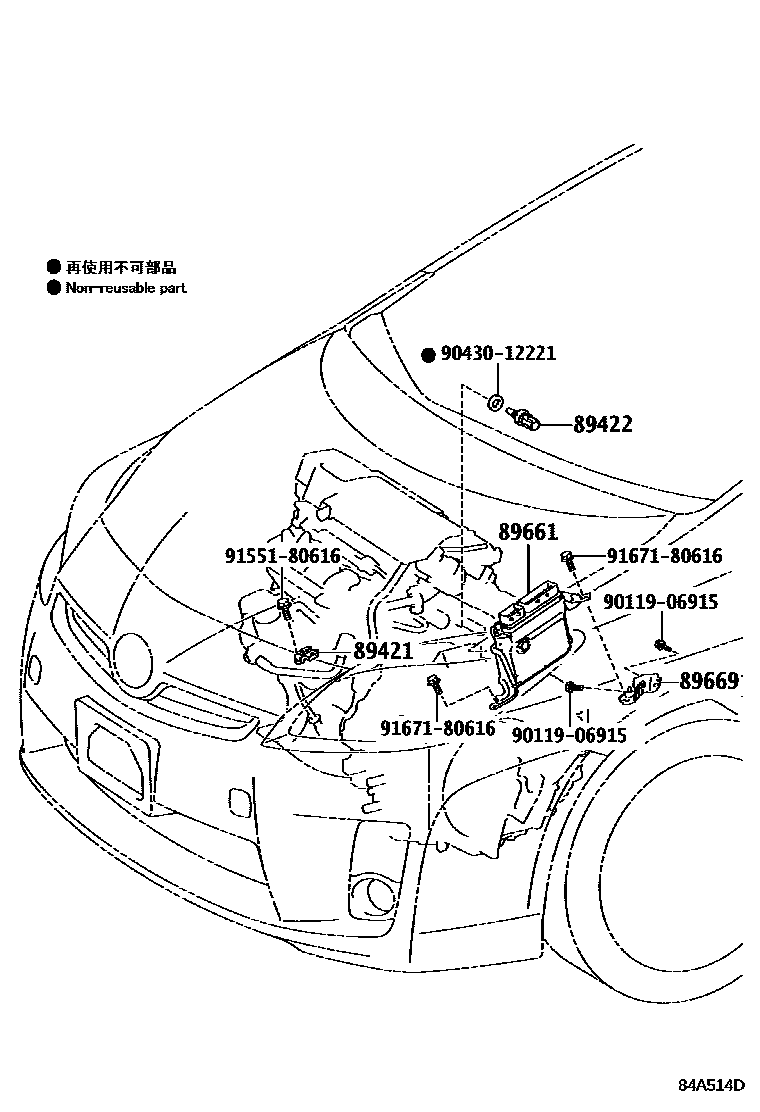

ELECTRONIC FUEL INJECTION SYSTEM

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-47010iZVW30200911-201112

main89421-52010iZVW30200904-200910

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZVW30200904-201112

89661COMPUTER, ENGINE CONTROL

main89660-47300iZVW30200904-200909

sub89660-47301

main89660-47301iZVW30200909-201011

sub89660-47302

main89660-47430iZVW30201011-201112

sub89660-47431

main89660-47510iZVW30201112-201302

sub89660-47511

main89660-47511iZVW30201303-201310

sub89660-47512

main89660-47750iZVW30201310-201411

sub89660-47751

main89660-47751iZVW30201412-201510

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-47070iZVW30200904-201112

9011906915

main90119-06915

9043012221

main90430-12221

9155180616

main91551-80616

9167180616

main91671-80616

8 parts on this diagram · 1 diagram in section
