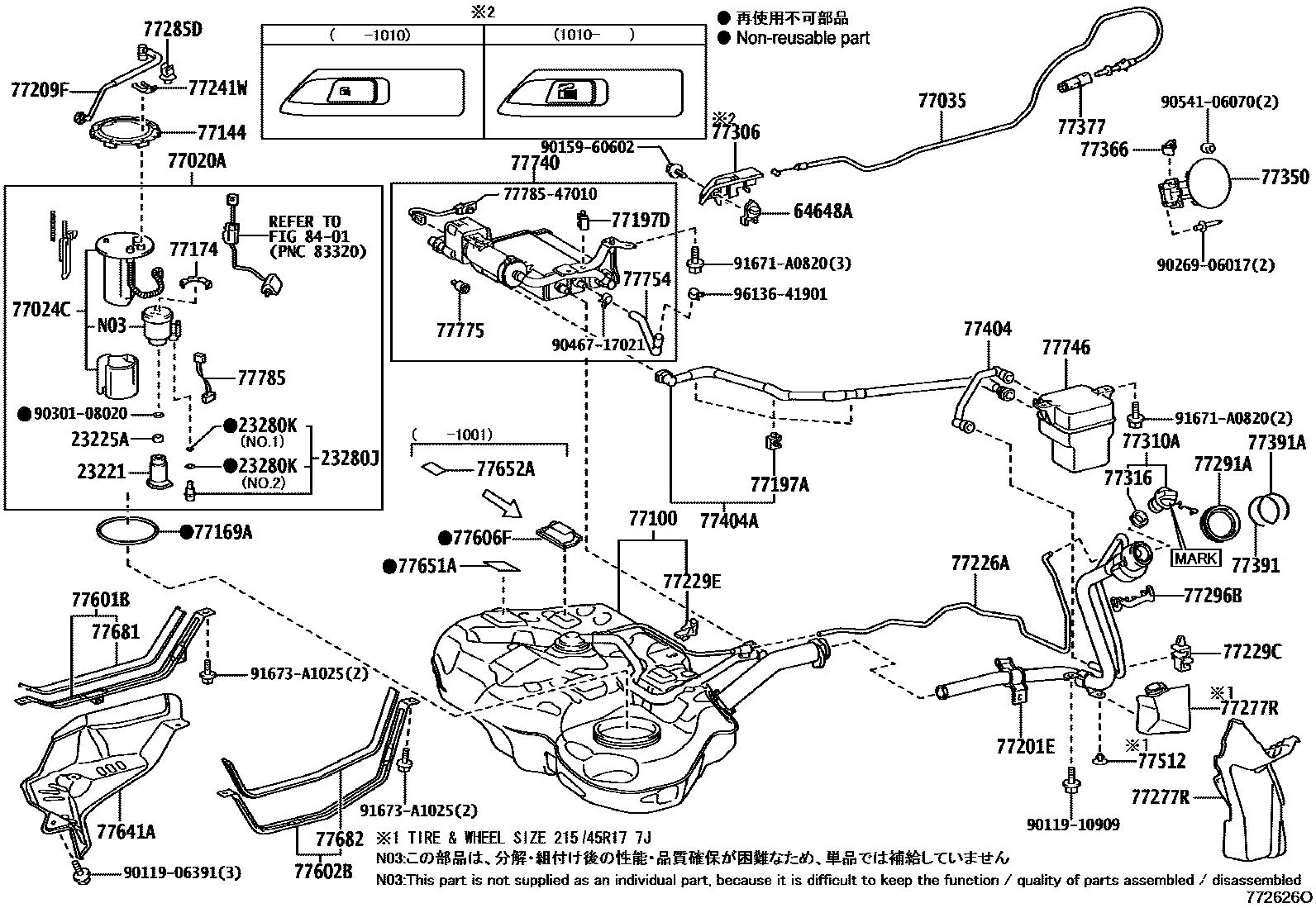

FUEL TANK & TUBE
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.2
64648AGROMMET, LUGGAGE DOOR LOCK OPENER
77024CPLATE SUB-ASSY, FUEL SUCTION W/FUEL FILTER
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100TANK ASSY, FUEL
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77197ACLAMP, EVAPORATION VENT TUBE, NO.2
77197DCLAMP, EVAPORATION VENT TUBE, NO.2
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77229CCLAMP, BREATHER TUBE
77229ECLAMP, BREATHER TUBE
77277RPROTECTOR, FUEL TANK FILLER PIPE
77291ASHIELD, FUEL TANK FILLER PIPE
77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310ACAP ASSY, FUEL TANK
MARK B:REFER ILLUST.
MARK V:REFER ILLUST.
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77404HOSE SUB-ASSY, FUEL TANK VENT
77404AHOSE SUB-ASSY, FUEL TANK VENT
77512BRACKET, FUEL TANK, REAR
main77512-35140
77606FCASE SUB-ASSY, FUEL TANK COVER VENT
77641APROTECTOR, FUEL TANK, NO.1
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
77740CANISTER ASSY, CHARCOAL
77746FILTER, CHARCOAL CANISTER, NO.2
77754HOSE, CHARCOAL CANISTER OUTLET, NO.1
77775GUIDE, CHARCOAL CANISTER OUTLET
8401
7778547010HARNESS, FUEL PUMP
main77785-47010
9011906391
main90119-06391
9011910909
main90119-10909
9015960602
main90159-60602
9026906017
main90269-06017
9030108020
main90301-08020
9046717021
main90467-17021
9054106070
main90541-06070
91671A0820
main91671-A0820
91673A1025
main91673-A1025
9613641901
main96136-41901
60 parts on this diagram · 2 diagrams in section
