SEAT BELT & CHILD RESTRAINT SEAT

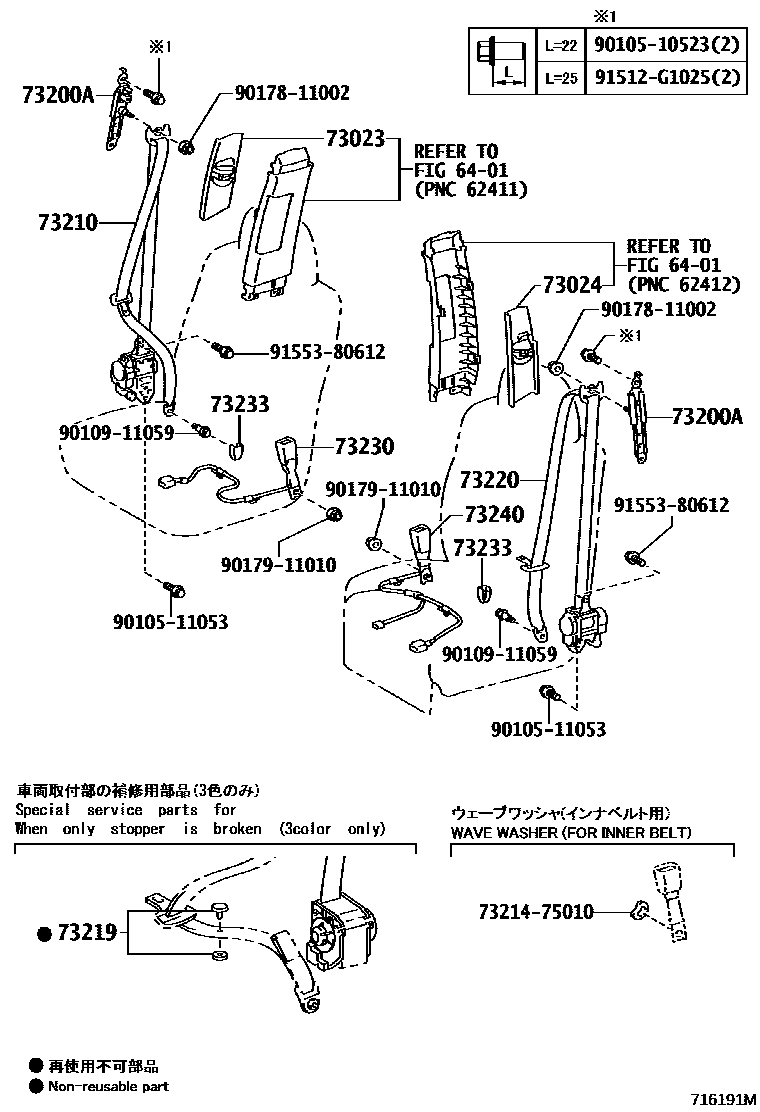

Parts diagram
6401
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
main73023-53020-B0i201112-201511
LT.GRAY,TRIM1#,2#
main73023-53020-B0i201112-201511
LT.GRAY,TRIM1#,2#,4#,6#
main73023-53020-B0i200904-201112
LT.GRAY,TRIM1#,4#,6#
main73023-53020-B0i200908-201112
LT.GRAY,TRIM1#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73024-53020-B0i201112-201511
LT.GRAY,TRIM1#,2#,4#,6#
main73024-53020-B0i200904-201112
LT.GRAY,TRIM1#,4#,6#
main73024-53020-B0i200908-201112
LT.GRAY,TRIM1#
main73024-53020-B0i201112-201511
LT.GRAY,TRIM1#,2#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-12070i201507
main73200-53010i200904-201506
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-47120-B1i200904-201002
MD.GRAY,TRIM1#
sub73210-47121
main73210-47120-B2i200904-201002
GREGE,TRIM4#
sub73210-47121
main73210-47120-B3i200904-201002
AQUA,TRIM6#
sub73210-47121
main73210-47121-B1i201003-201112
MD.GRAY,TRIM1#
sub73210-47122
main73210-47121-B2i201003-201112
GREGE,TRIM4#
sub73210-47122
main73210-47121-B3i201003-201112
AQUA,TRIM6#
sub73210-47122
main73210-47122-B1i201112-201310
GRAY/LT.GRAY,TRIM1#,6#
main73210-47122-B1i201112-201310
GRAY/LT.GRAY,TRIM1#
main73210-47122-B2i201112-201310
GREGE/LT.GRAY,TRIM4#
main73210-47122-B4i201210-201310
BLACK/LT.GRAY,TRIM2#
main73210-47230-B0i201310-201511
GRAY/LT.GRAY,TRIM1#
main73210-47230-B0i201310-201511
GRAY/LT.GRAY,TRIM1#,6#
main73210-47230-B1i201310-201511
GREGE/LT.GRAY,TRIM4#
main73210-47230-B2i201408-201412
BLACK/LT.GRAY,TRIM2#
73219STOPPER, TONGUE PLATE
main73219-02010i200904-201112
BLACK
main73219-02020i200904-201112
GRAY
main73219-02030i200904-201112
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-47090-B1i200904-201002
MD.GRAY,TRIM1#
sub73220-47091
main73220-47090-B2i200904-201002
GREGE,TRIM4#
sub73220-47091
main73220-47090-B3i200904-201002
AQUA,TRIM6#
sub73220-47091
main73220-47091-B1i201003-201112
MD.GRAY,TRIM1#
sub73220-47092
main73220-47091-B2i201003-201112
GREGE,TRIM4#
sub73220-47092
main73220-47091-B3i201003-201112
AQUA,TRIM6#
sub73220-47092
main73220-47092-B1i201112-201310
GRAY/LT.GRAY,TRIM1#
main73220-47092-B1i201112-201310
GRAY/LT.GRAY,TRIM1#,6#
main73220-47092-B2i201112-201310
GREGE/LT.GRAY,TRIM4#
main73220-47092-B4i201210-201310
BLACK/LT.GRAY,TRIM2#
main73220-47180-B0i201310-201511
GRAY/LT.GRAY,TRIM1#
main73220-47180-B0i201310-201511
GRAY/LT.GRAY,TRIM1#,6#
main73220-47180-B1i201310-201511
GREGE/LT.GRAY,TRIM4#
main73220-47180-B2i201408-201412
BLACK/LT.GRAY,TRIM2#
73230BELT ASSY, FRONT SEAT INNER, RH
main73240-47080-B0i201112-201310
MD.GRAY,TRIM1#,6#
main73240-47080-B0i200904-201310
MD.GRAY,TRIM1#
main73240-47080-C0i201210-201310
BLACK,TRIM2#
main73240-47080-E0i200904-201310
GREGE,TRIM4#
main73240-47080-G0i200904-201112
AQUA,TRIM6#
main73240-47160-B0i201310-201511
MD.GRAY,TRIM1#,6#
main73240-47160-B0i201310-201511
MD.GRAY,TRIM1#
main73240-47160-C0i201408-201412
BLACK,TRIM2#
main73240-47160-E0i201310-201511
GREGE,TRIM4#
73233COVER, LAP BELT OUTER ANCHOR
main73233-60020-B0i200904-201112
MD.GRAY,TRIM1#,6#
sub73233-60020
sub73233-35010
main73233-60020-B0i200908-201112
MD.GRAY,TRIM1#
sub73233-60020
sub73233-35010
main73233-60020-C0i201112-201511
BLACK,TRIM1#,2#,4#,6#
sub73233-60020
sub73233-35010
main73233-60020-C0i201112-201511
BLACK,TRIM1#,2#
sub73233-60020
sub73233-35010
main73233-60020-E1i200904-201112
GREGE,TRIM4#
sub73233-60020
sub73233-35010
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-47140-B0i200904-201112
MD.GRAY,TRIM1#
main73230-47140-E0i200904-201112
GREGE,TRIM4#
main73230-47140-G0i200904-201112
AQUA,TRIM6#
main73230-47240-B0i201112-201310
MD.GRAY,TRIM1#,6#
main73230-47240-E0i201112-201310
GREGE,TRIM4#
main73230-47260-B0i201112-201310
MD.GRAY,TRIM1#
main73230-47260-B0i201112-201310
MD.GRAY,TRIM1#,6#
main73230-47260-C0i201210-201310
BLACK,TRIM2#
main73230-47260-E0i201112-201310
GREGE,TRIM4#
main73230-47360-B0i201310-201511
MD.GRAY,TRIM1#
main73230-47360-B0i201310-201511
MD.GRAY,TRIM1#,6#
main73230-47360-C0i201408-201412
BLACK,TRIM2#
main73230-47360-E0i201310-201511
GREGE,TRIM4#
main73230-47370-B0i201310-201511
MD.GRAY,TRIM1#,6#
main73230-47370-B0i201310-201511
EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO-AVN
main73230-47370-B0i201310-201511
EXPORT UPPER PACKAGE&SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO-*DA SDARS *BT USB 6SP,MD.GRAY,TRIM1#,6#
main73230-47370-E0i201310-201511
EXPORT UPPER PACKAGE&SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO-*DA SDARS *BT USB 6SP,GREGE,TRIM4#
main73230-47370-E0i201310-201511
EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO-AVN
main73230-47370-E0i201310-201511
GREGE,TRIM4#
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010510523
main90105-10523
9010511053
main90105-11053
9010911059
main90109-11059
9017811002
main90178-11002
9017911010
main90179-11010
91512G1025
main91512-G1025
9155380612
main91553-80612

18 parts on this diagram · 2 diagrams in section
