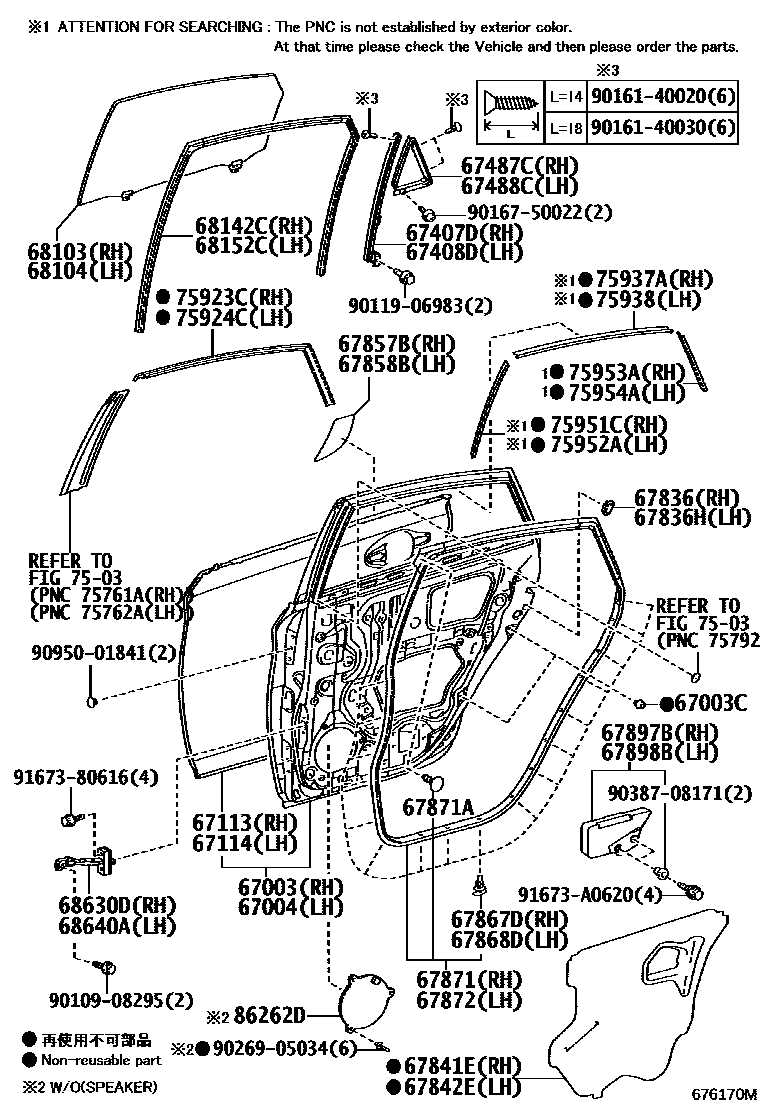

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-47070iZVW30..CND201112-201511

main67003-47090iZVW30..USA201112-201210

67003CCUSHION, REAR DOOR PANEL

main90541-09117×4iZVW30200904-200910

main90541-09124×4iZVW30201105-201112

main90541-09138×4iZVW30201112

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-47070iZVW30..CND200904-201112

main67004-47090iZVW30..USA200904-201112

67113PANEL, REAR DOOR, OUTER RH

main67113-47030iZVW30201112-201511

67114PANEL, REAR DOOR, OUTER LH

main67114-47030iZVW30201112-201511

67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH

main67407-47030iZVW30200904-201112

67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH

main67408-47030iZVW30201112

67487CSEAL, REAR DOOR REAR GUIDE, RH

main67487-47040iZVW30200904-201109

main67487-47041iZVW30201112

67488CSEAL, REAR DOOR REAR GUIDE, LH

main67488-47040iZVW30200904-201109

main67488-47041iZVW30201110-201112

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-12040iZVW30200904-201112

67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-12040iZVW30200904-201112

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-47050iZVW30200904-201112

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-47040iZVW30200904-201112

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-47020iZVW30200904-201112

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-47010iZVW30200904-201112

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×17iZVW30200904-201112

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×17iZVW30200904-201112

67871WEATHERSTRIP, REAR DOOR, RH

main67871-47030iZVW30200904-201112

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main90467-05017-C0×2iZVW30200904-201112

BLACK

67872WEATHERSTRIP, REAR DOOR, LH

main67872-47030iZVW30200904-201112

67897BCUSHION, REAR DOOR, RH

main67897-47010iZVW30200904-201112

67898BCUSHION, REAR DOOR, LH

main67898-47010iZVW30200904-201112

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-47050iZVW30200904-200905

*UVCT,T=3.1,GREEN

main68103-47051iZVW30200906-201112

*UVCT,T=3.1,GREEN

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-47050iZVW30200904-200905

*UVCT,T=3.1,GREEN

main68104-47051iZVW30200906-201112

*UVCT,T=3.1,GREEN

68142CRUN, REAR DOOR GLASS, RH

main68142-47030iZVW30200904-201112

68152CRUN, REAR DOOR GLASS, LH

main68152-47030iZVW30200904-201112

68630DCHECK ASSY, REAR DOOR, RH

main68630-47030iZVW30200904-201106

main68630-47031iZVW30201106-201112

68640ACHECK ASSY, REAR DOOR, LH

main68630-47030iZVW30200904-201106

main68630-47031iZVW30201106-201112

7503

75923CTAPE, BLACK OUT, NO.2 RH

main75923-47020iZVW30200904-201112

75924CTAPE, BLACK OUT, NO.2 LH

main75924-47020iZVW30200904-201112

75937ATAPE, BLACK OUT, INNER UPPER RH

main75987-47020iZVW30200904-201112

REFER TO ILLUST.

75938TAPE, BLACK OUT, INNER UPPER LH

main75988-47020iZVW30200904-201112

REFER TO ILLUST.

75951CTAPE, BLACK OUT, INNER FRONT RH

main75977-47020iZVW30200904-201112

REFER TO ILLUST.

75952ATAPE, BLACK OUT, INNER FRONT LH

main75978-47020iZVW30200904-201112

REFER TO ILLUST.

75953ATAPE, BLACK OUT, INNER REAR RH

main75979-47020iZVW30200904-201112

REFER TO ILLUST.

75954ATAPE, BLACK OUT, INNER REAR LH

main75989-47020iZVW30200904-201112

REFER TO ILLUST.

86262DCOVER, REAR DOOR SPEAKER

main86262-50010×2iZVW30..L200908-201112

9010908295

main90109-08295

9011906983

main90119-06983

9016140020

main90161-40020

9016140030

main90161-40030

9016750022

main90167-50022

9026905034

main90269-05034

9038708171

main90387-08171

9095001841

main90950-01841

9167380616

main91673-80616

91673A0620

main91673-A0620

48 parts on this diagram · 2 diagrams in section
