DECK BOARD & DECK TRIM COVER

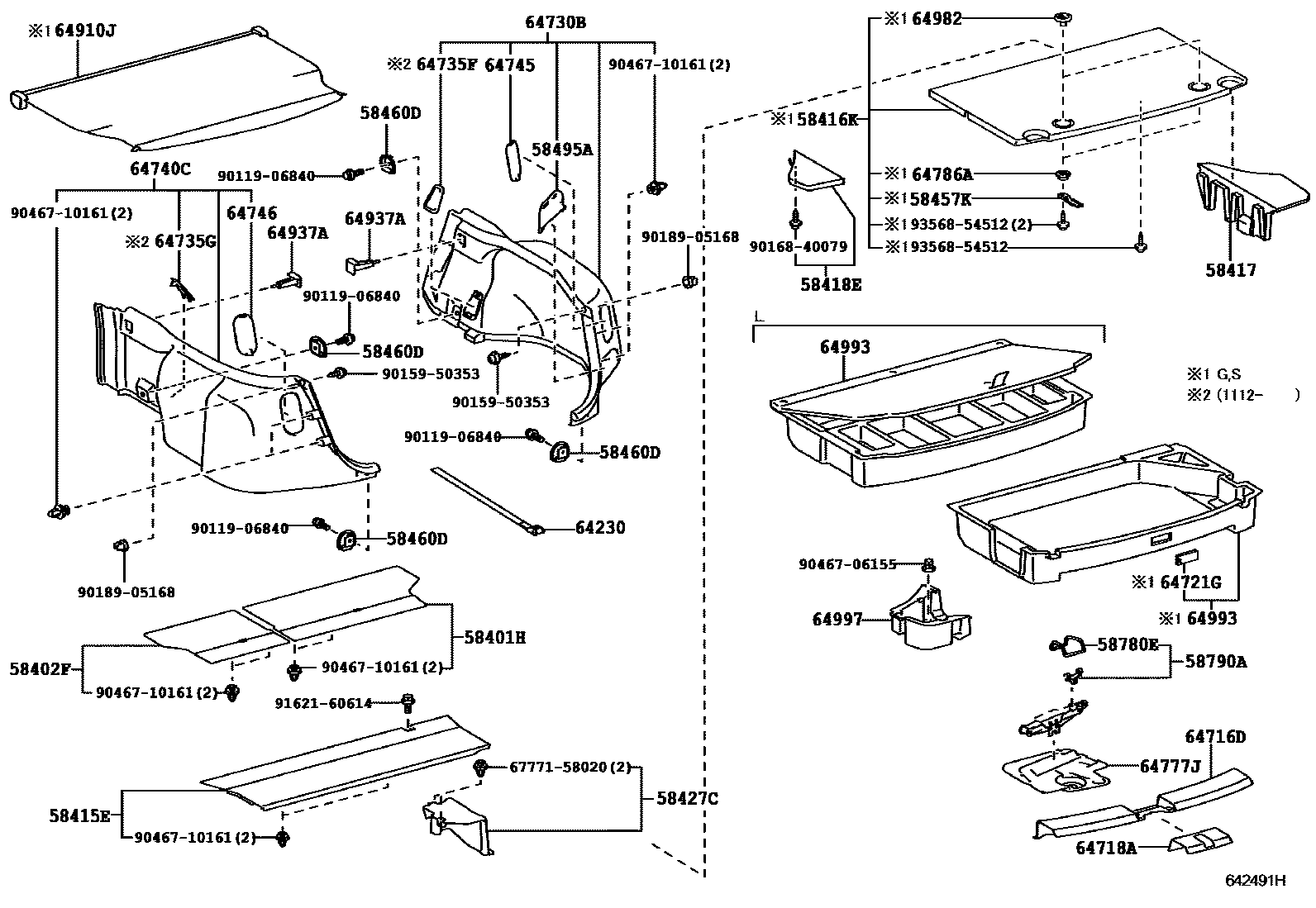

Parts diagram
58401HBOARD SUB-ASSY, REAR FLOOR, NO.1
main58401-47010-B1i200908-201112
LT.GRAY,TRIM1#
main58401-47010-B1i201112-201511
LT.GRAY,TRIM1#,2#,4#,6#
main58401-47010-B1i201112-201511
LT.GRAY,TRIM1#,2#
main58401-47010-B1i200904-201112
LT.GRAY,TRIM1#,4#,6#
58402FBOARD SUB-ASSY, REAR FLOOR, NO.2
main58402-47010-B1i200904-201112
LT.GRAY,TRIM1#,4#,6#
main58402-47010-B1i200908-201112
LT.GRAY,TRIM1#
main58402-47010-B1i201112-201511
LT.GRAY,TRIM1#,2#,4#,6#
main58402-47010-B1i201112-201511
LT.GRAY,TRIM1#,2#
58415EBOARD, REAR FLOOR, NO.1
main58415-47030-B3i200904-201112
LT.GRAY,TRIM1#,4#,6#
main58415-47030-B3i200908-201112
LT.GRAY,TRIM1#
main58415-47030-B3i201112-201511
LT.GRAY,TRIM1#,2#,4#,6#
main58415-47030-B3i201112-201511
LT.GRAY,TRIM1#,2#
58416KBOARD, REAR FLOOR, NO.2
main58416-47030-B3i200904-201112
LT.GRAY,TRIM1#,4#,6#
main58416-47030-B3i201112-201511
LT.GRAY,TRIM1#,2#,4#,6#
58417BOARD, REAR FLOOR, NO.3
main58490-47050-B2i200904-201112
LT.GRAY,TRIM1#,4#,6#
main58490-47050-B2i200908-201112
LT.GRAY,TRIM1#
main58490-47150-B0i201112-201511
LT.GRAY,TRIM1#,2#,4#,6#
main58490-47150-B0i201112-201511
LT.GRAY,TRIM1#,2#
58418EBOARD, REAR FLOOR, NO.4
main58418-47030-B3i200904-201112
LT.GRAY,TRIM1#,4#,6#
sub58418-47070
main58418-47030-B3i200908-201112
LT.GRAY,TRIM1#
sub58418-47070
main58418-47070-B0i201112-201511
LT.GRAY,TRIM1#,2#,4#,6#
main58418-47070-B0i201112-201511
LT.GRAY,TRIM1#,2#
58427CSPACER, REAR FLOOR BOARD
main58427-47010i200904-201101
BLACK
main58427-47040i201101-201112
NATURAL
58457KBRACKET, DECK BOARD, REAR
main58457-12010i200904-201112
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
main58460-33020i200904-201112
58495APLATE, REAR FLOOR BOARD, UPPER NO.3
main58495-47020-B0i200904-201112
LT.GRAY,TRIM1#,4#,6#
main58495-47020-B0i200908-201112
LT.GRAY,TRIM1#
main58495-47020-B0i201112-201511
LT.GRAY,TRIM1#,2#,4#,6#
main58495-47020-B0i201112-201511
LT.GRAY,TRIM1#,2#
58780EBAND ASSY, TOOL BOX
main58781-52010i200904-201112
58790ACARRIER ASSY, JACK
main58790-52020i200904-201112
64230NET ASSY, ROOM PARTITION
main64230-47020i200904-201408
64716DCOVER, DECK TRIM, REAR
main64716-47030-B0i200904-201112
LT.GRAY,TRIM1#,4#,6#
sub64716-47031
main64716-47030-B0i200908-201112
LT.GRAY,TRIM1#
sub64716-47031
main64716-47030-B0i201112-201305
LT.GRAY,TRIM1#,2#,4#,6#
sub64716-47031
main64716-47030-B0i201112-201305
LT.GRAY,TRIM1#,2#
sub64716-47031
main64716-47031-B0i201306-201511
LT.GRAY,TRIM1#,2#,4#,6#
main64716-47031-B0i201306-201511
LT.GRAY,TRIM1#,4#,6#
main64716-47031-B0i201306-201511
LT.GRAY,TRIM1#
64718ACOVER, DECK TRIM SERVICE HOLE
main64718-47030-B0i200904-201112
LT.GRAY,TRIM1#,4#,6#
sub64718-47031
main64718-47030-B0i200908-201112
LT.GRAY,TRIM1#
sub64718-47031
main64718-47030-B0i201112-201305
LT.GRAY,TRIM1#,2#,4#,6#
sub64718-47031
main64718-47030-B0i201112-201305
LT.GRAY,TRIM1#,2#
sub64718-47031
main64718-47031-B0i201306-201511
LT.GRAY,TRIM1#,2#,4#,6#
main64718-47031-B0i201306-201511
LT.GRAY,TRIM1#,4#,6#
main64718-47031-B0i201306-201511
LT.GRAY,TRIM1#
64721GCOVER, DECK TRIM, NO.1
main64721-47010i200904-201112
64730BPANEL ASSY, DECK TRIM SIDE, RH
main64730-47031-B2i200904-201112
LT.GRAY,TRIM1#,4#,6#
main64730-47031-B2i200908-201112
LT.GRAY,TRIM1#
main64730-47170-B0i201112-201511
LT.GRAY,TRIM1#,2#,4#,6#
sub64730-47050
main64730-47170-B0i201112-201408
LT.GRAY,TRIM1#,2#
sub64730-47050
main64730-47170-B0i201408-201511
LT.GRAY,TRIM1#,4#,6#
sub64730-47050
main64730-47170-B0i201408-201511
LT.GRAY,TRIM1#
sub64730-47050
64735FCOVER, DECK TRIM SIDE SERVICE HOLE, RH
main64735-47010-B0i201112-201511
LT.GRAY,TRIM1#,2#,4#,6#
main64735-47010-B0i201112-201511
LT.GRAY,TRIM1#,2#
64735GCOVER, DECK TRIM SIDE SERVICE HOLE, LH
main64735-47020-B0i201112-201511
LT.GRAY,TRIM1#,2#,4#,6#
main64735-47020-B0i201112-201511
LT.GRAY,TRIM1#,2#
64740CPANEL ASSY, DECK TRIM SIDE, LH
main64740-47031-B2i200904-201112
LT.GRAY,TRIM1#,4#,6#
main64740-47031-B2i200908-201112
LT.GRAY,TRIM1#
main64740-47160-B0i201112-201511
LT.GRAY,TRIM1#,2#,4#,6#
sub64740-47050
main64740-47160-B0i201112-201408
LT.GRAY,TRIM1#,2#
sub64740-47050
main64740-47160-B0i201408-201511
LT.GRAY,TRIM1#,4#,6#
sub64740-47050
main64740-47160-B0i201408-201511
LT.GRAY,TRIM1#
sub64740-47050
64745COVER, REAR COMBINATION LAMP SERVICE, RH
main64745-47030-B0i200904-201112
LT.GRAY,TRIM1#,4#,6#
main64745-47030-B0i200908-201112
LT.GRAY,TRIM1#
main64745-47030-B0i201112-201511
LT.GRAY,TRIM1#,2#,4#,6#
main64745-47030-B0i201112-201511
LT.GRAY,TRIM1#,2#
64746COVER, REAR COMBINATION LAMP SERVICE, LH
main64745-47030-B0i200908-201112
LT.GRAY,TRIM1#
main64745-47030-B0i201112-201511
LT.GRAY,TRIM1#,2#
main64745-47030-B0i201112-201511
LT.GRAY,TRIM1#,2#,4#,6#
main64745-47030-B0i200904-201112
LT.GRAY,TRIM1#,4#,6#
64777JCUSHION, SPARE WHEEL
main64777-47030i200904-201112
64786APLATE, JACK COVER
main64786-47010i200904-201112
RH
main64786-47020i200904-201112
LH
64910JCOVER ASSY, TONNEAU
main64910-47020-B0i200904-201112
LT.GRAY,TRIM1#,4#,6#
sub64910-47021
main64910-47020-B0i201112-201511
LT.GRAY,TRIM1#,2#,4#,6#
sub64910-47021
64937ACAP, TONNEAU COVER HOLDER, NO.1
main64937-47010-B0i200908-201511
LT.GRAY,TRIM1#
main64937-47010-B0i201112-201511
LT.GRAY,TRIM1#,2#,4#,6#
main64937-47010-B0i200904-201511
LT.GRAY,TRIM1#,4#,6#
main64937-47010-B0i201112-201408
LT.GRAY,TRIM1#,2#
64982KNOB, COVER
main64982-47010i200904-201112
RH
main64982-47020i200904-201112
LH
64993BOX, DECK FLOOR, REAR
main64993-47020i200904-201511
main64993-47050-B4i200908-201112
LT.GRAY,TRIM1#
main64993-47050-B4i201112-201511
LT.GRAY,TRIM1#,2#
64997BOX, DECK FLOOR, LH
main64997-47020i200904-201112
6777158020WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-58020
9011906840
main90119-06840
9015950353
main90159-50353
9016840079
main90168-40079
9018905168
main90189-05168
9046706155
main90467-06155
9046710161
main90467-10161
9162160614
main91621-60614
9356854512
main93568-54512

38 parts on this diagram · 1 diagram in section
