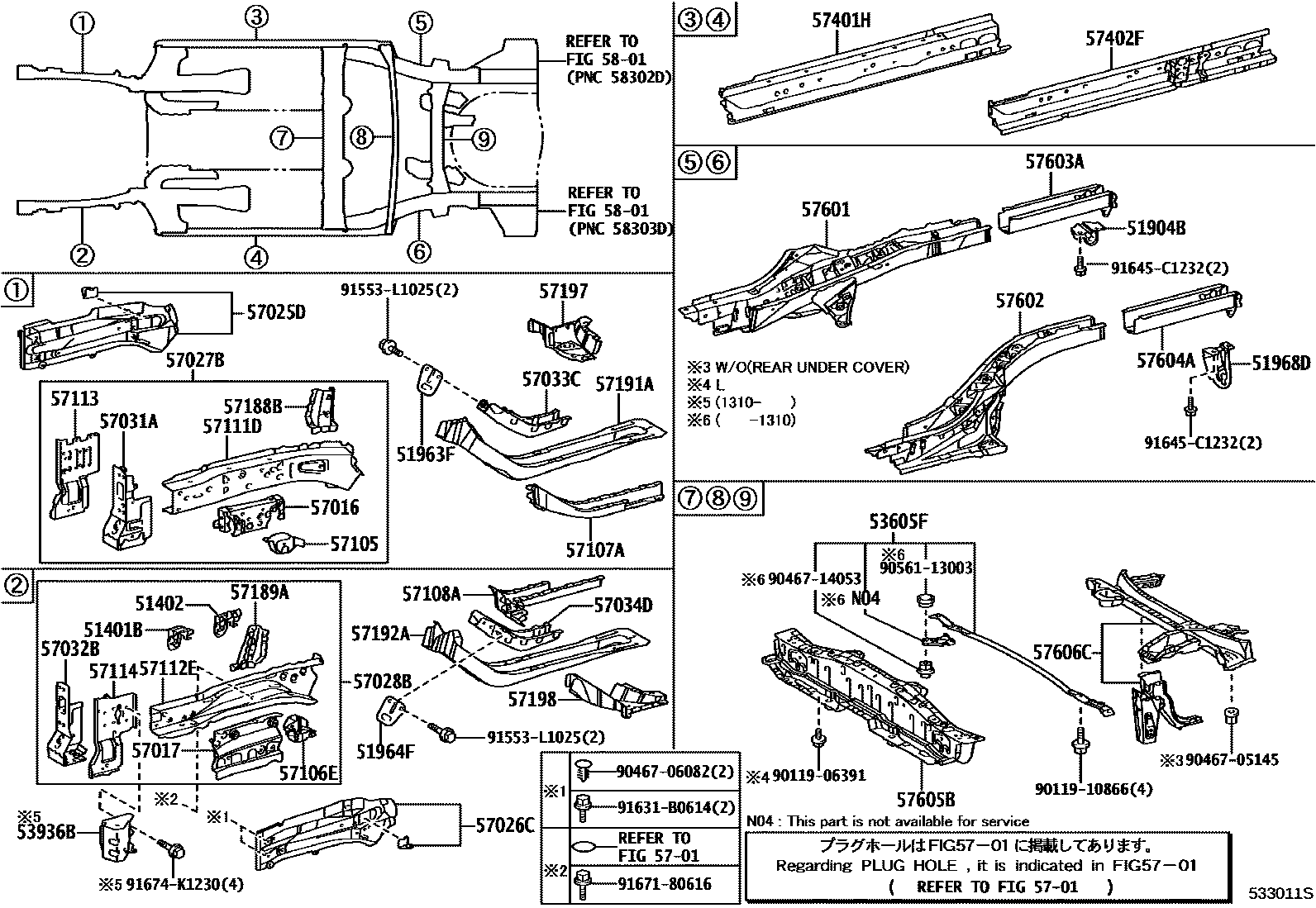

FLOOR SIDE MEMBER

51401BBRACKET SUB-ASSY, ENGINE FRONT MOUNTING

main51401-12020iZVW30200904-201112

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-12020iZVW30200904-201112

51904BHANGER SUB-ASSY, EXHAUST PIPE, NO.4

main51904-47010iZVW30200904-201511

51963FHOOK, TRANSPORT

main51963-12250iZVW30200904-201112

51964FHOOK, TRANSPORT, LH

main51964-12040iZVW30200904-201112

51968DHOOK, TRANSPORT, REAR LH

main51968-12180iZVW30200904-201112

53605FBRACE SUB-ASSY, REAR SUSPENSION

main53605-12020iZVW30200904-200908

sub53605-12021

main53605-47020iZVW30200908-201306

sub53605-47021

main53605-47021iZVW30201307-201511

53936BPROTECTOR, FRONT END PANEL, LH

main53936-47010iZVW30201310-201410

sub53936-76010

main53936-76010iZVW30201410

5701

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-12110iZVW30200904-201112

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-12070iZVW30200904-201112

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-12010iZVW30200904-201112

sub57115-12090

sub51681-12080

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-12020iZVW30200904-201112

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-12010iZVW30200904-201112

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-12020iZVW30200904-201310

main57028-47020iZVW30201310

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-12010iZVW30200904-201112

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-12010iZVW30200904-201112

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-12010iZVW30200904-201112

57034DREINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH

main57034-12010iZVW30200904-201112

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-12160iZVW30200904-201112

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-12150iZVW30200904-201112

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-12120iZVW30200904-201112

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-12140iZVW30200904-201112

57111DMEMBER, FRONT SIDE, INNER RH

main57111-12230iZVW30200904-201112

57112EMEMBER, FRONT SIDE, INNER LH

main57112-12190iZVW30200904-201112

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-12220iZVW30200904-201112

57114EXTENSION, FRONT SIDE MEMBER, LH

main57018-47010iZVW30201310

main57114-12190iZVW30200904-201310

sub57114-12191

57188BGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH

main57188-12030iZVW30200904-201112

57189AGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH

main57189-12010iZVW30200904-201112

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-12070iZVW30200904-201112

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-12060iZVW30200904-201112

57197BOX, TORQUE, FRONT RH

main57197-12040iZVW30200904-201112

57198BOX, TORQUE, FRONT LH

main57078-47020iZVW30201310

main57198-12040iZVW30200904-201310

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-47050iZVW30200904-201511

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-47070iZVW30200904-201310

main57402-47100iZVW30201310-201511

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-12A00iZVW30200904-201112

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-12A00iZVW30200904-201111

main57602-12A01iZVW30201112

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-47030iZVW30200904-201112

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-47030iZVW30200904-201112

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-12321iZVW30200904-201112

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-47041iZVW30200904-201002

sub57606-47042

main57606-47042iZVW30201003-201112

5801

9011906391

main90119-06391

9011910866

main90119-10866

9046705145

main90467-05145

9046706082

main90467-06082

9046714053

main90467-14053

9056113003

main90561-13003

91553L1025

main91553-L1025

91631B0614

main91631-B0614

91645C1232

main91645-C1232

9167180616

main91671-80616

91674K1230

main91674-K1230

53 parts on this diagram · 1 diagram in section
