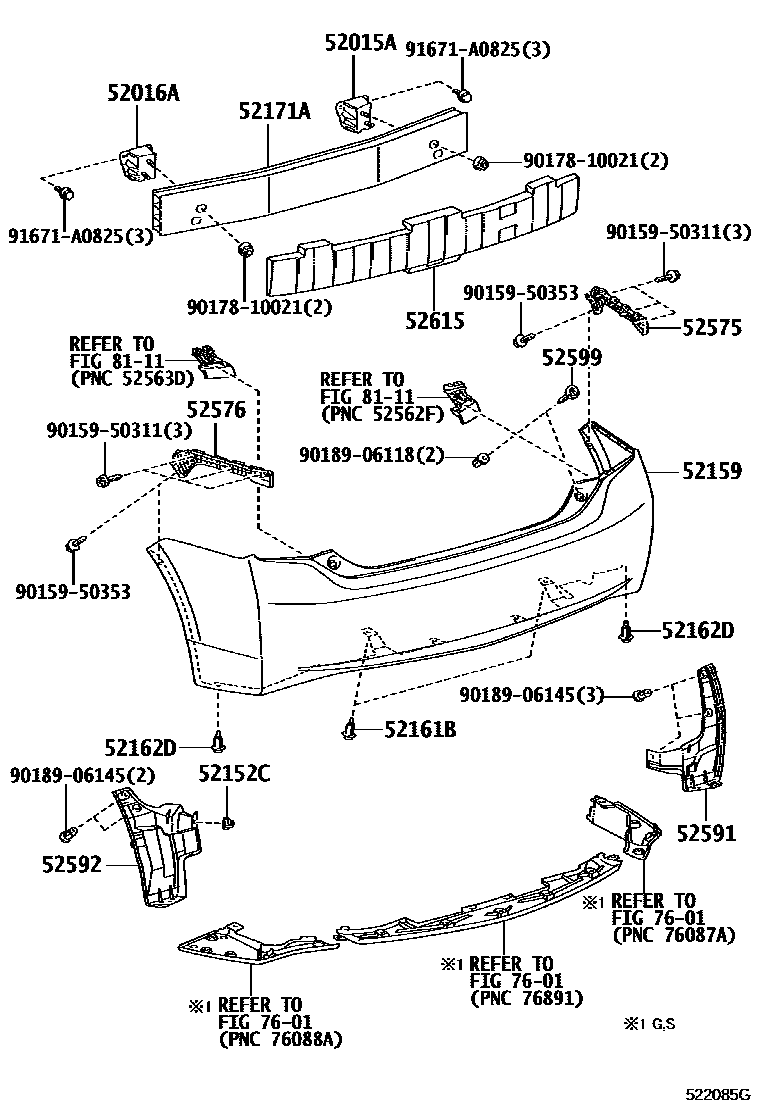

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-47040iZVW30200904-201112

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-47020iZVW30200904-201112

52152CCLIP, REAR BUMPER SIDE

main90467-06121iZVW30200904-201008

main90467-06206-C0iZVW30201009-201511

BLACK

52159COVER, REAR BUMPER

main52159-47905iZVW30..G,S200904-201511

PAINT REQ.

sub52159-47916

main52159-47906iZVW30..L200908-201511

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-16010iZVW30200904-201112

sub52161-0K040

52162DPIECE, REAR BUMPER

main52161-16010iZVW30200904-201112

sub52161-0K040

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52023-47010iZVW30..USA200904-201210

main52171-47060iZVW30..CND200904-201511

52575RETAINER, REAR BUMPER SIDE, RH

main52575-47020iZVW30200904-201402

sub52575-47021

main52575-47021iZVW30201403

52576RETAINER, REAR BUMPER SIDE, LH

main52576-47020iZVW30200904-201402

sub52576-47021

main52576-47021iZVW30201403

52591SEAL, REAR BUMPER SIDE, RH

main52591-47021iZVW30200904-201112

52592SEAL, REAR BUMPER SIDE, LH

main52592-47021iZVW30200904-201112

52599STOPPER, REAR BUMPER, UPPER

main52599-68030iZVW30200904-201112

52615ABSORBER, REAR BUMPER ENERGY

main52615-47050iZVW30200904-201112

7601

8111

9015950311

main90159-50311

9015950353

main90159-50353

9017810021

main90178-10021

9018906118

main90189-06118

9018906145

main90189-06145

91671A0825

main91671-A0825

21 parts on this diagram · 1 diagram in section
