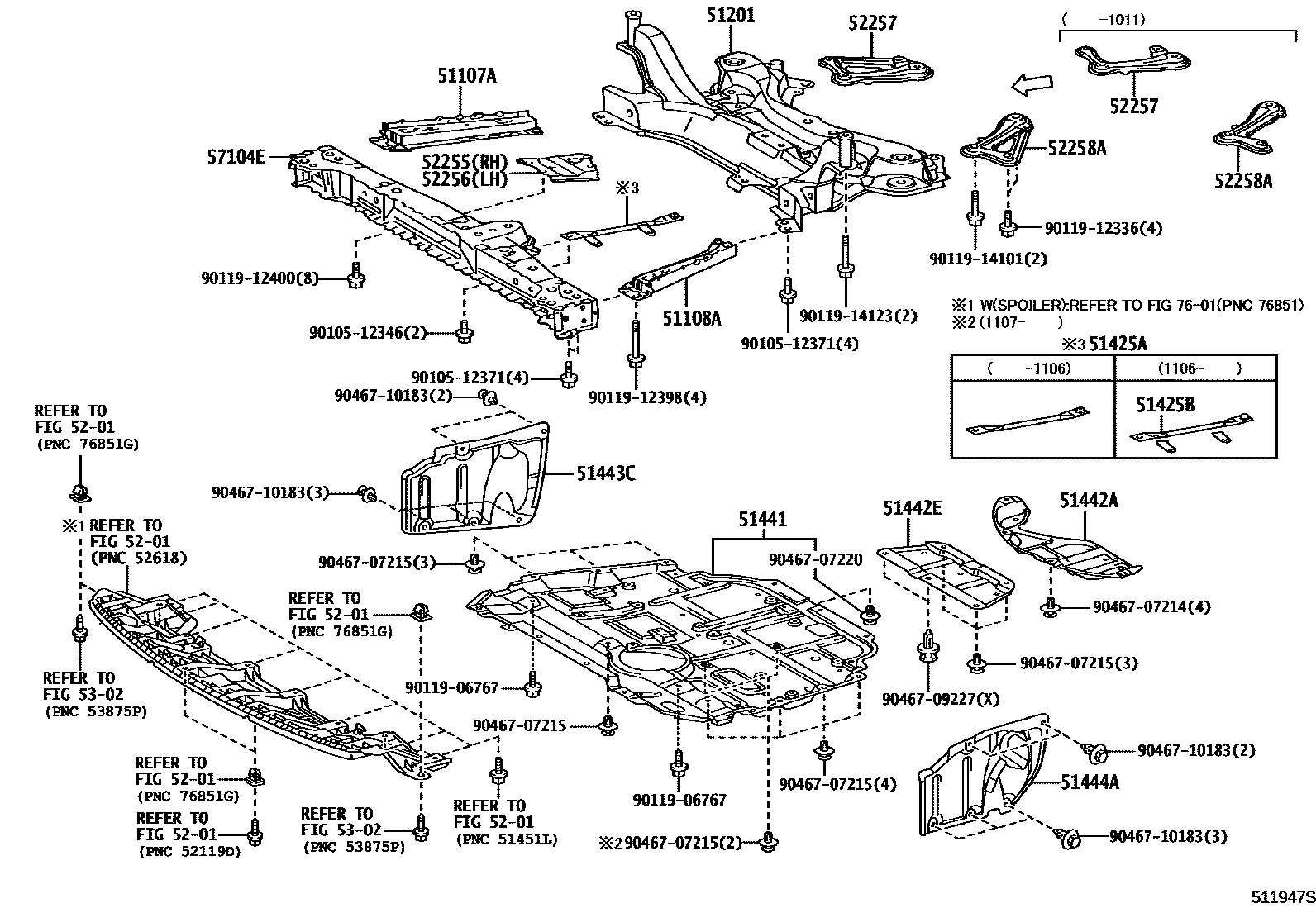

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1FLOOR UNDER COVER

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51107-12010iZVW30200904-201511

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51108-12010iZVW30200904-201112

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12441iZVW30200904-201306

sub51201-12442

main51201-12442iZVW30201307

sub51201-78010

51425AREINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER

main51408-47020iZVW30201106-201112

main51425-12060iZVW30200904-201106

51425BREINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER

main51425-12060iZVW30201106-201112

51441COVER, ENGINE UNDER, NO.1

main51410-12100iZVW30200904-200909

sub51410-12101

main51410-12101iZVW30200909-201004

sub51410-12102

main51410-12102iZVW30201005-201012

sub51410-12103

main51410-12103iZVW30201101-201106

sub51410-12104

main51410-12104iZVW30201106-201112

sub51410-12105

main51410-12105iZVW30201112-201511

51442ACOVER, ENGINE UNDER, FRONT NO.3

main51442-12210iZVW30200904-201112

51442ECOVER, ENGINE UNDER, NO.2

main51442-12270iZVW30200904-201112

51443CCOVER, ENGINE UNDER, REAR RH

main51443-12080iZVW30200904-201112

51444ACOVER, ENGINE UNDER, REAR LH

main51444-12050iZVW30200904-201112

5201

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-12010iZVW30200904-201511

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-12010iZVW30200904-201511

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-12011iZVW30200904-201011

main52257-21040iZVW30201011-201112

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-12011iZVW30200904-201011

main52258-21040iZVW30201011-201112

5302

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-47020iZVW30200904-201112

9010512346

main90105-12346

9010512371

main90105-12371

9011906767

main90119-06767

9011912336

main90119-12336

9011912398

main90119-12398

9011912400

main90119-12400

9011914101

main90119-14101

9011914123

main90119-14123

9046707214

main90467-07214

9046707215

main90467-07215

9046707220

main90467-07220

9046709227

main90467-09227

9046710183

main90467-10183

30 parts on this diagram · 2 diagrams in section
