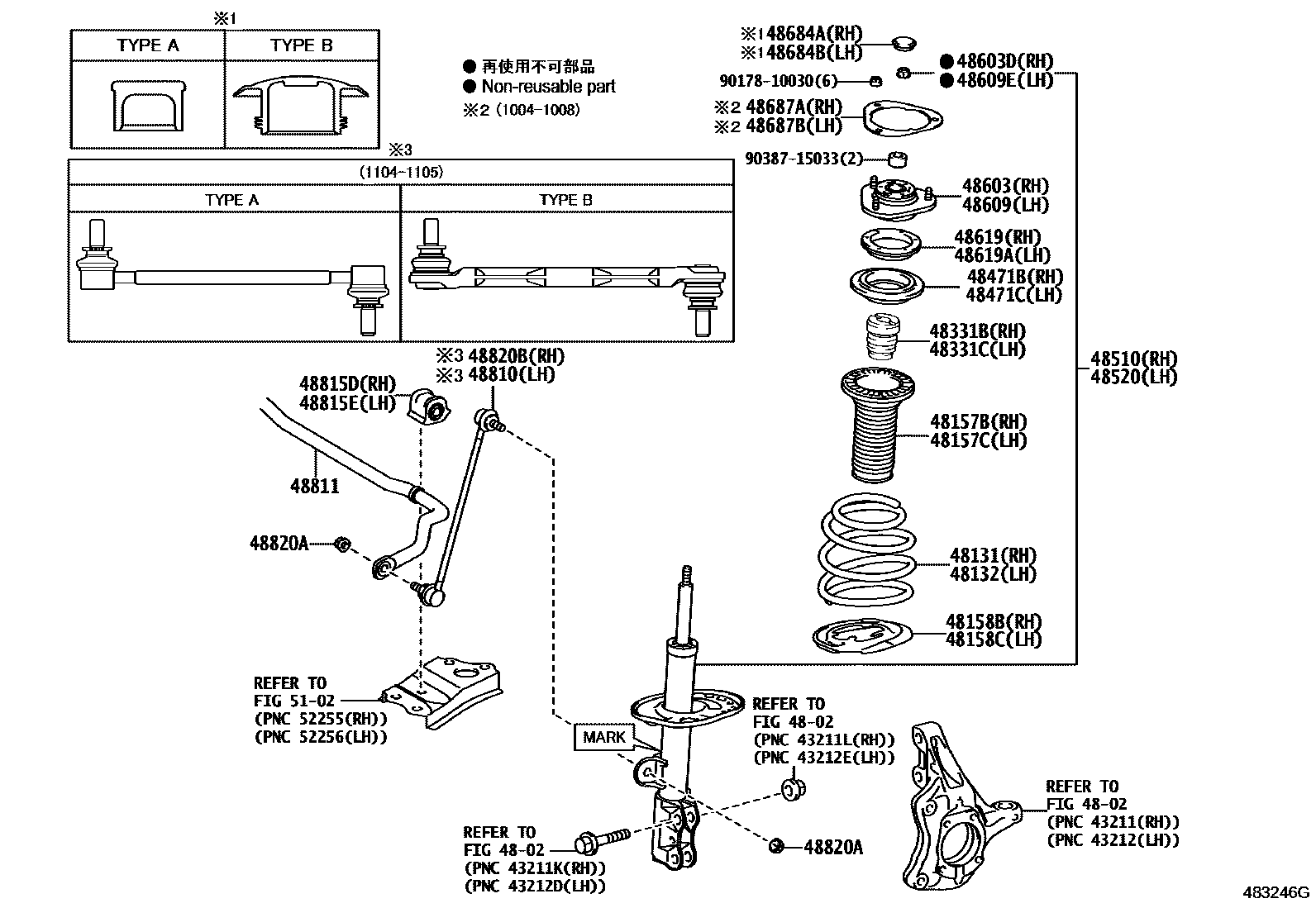

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-47120iZVW30200904-201112

48132SPRING, FRONT COIL, LH

main48131-47120iZVW30200904-201112

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-47020iZVW30200904-201112

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-47020iZVW30200904-201112

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-12040iZVW30200904-201112

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-12040iZVW30200904-201112

48331BBUMPER, FRONT SPRING, RH

main48331-21030iZVW30201004-201112

main48331-75010iZVW30200904-201003

sub48331-21030

48331CBUMPER, FRONT SPRING, LH

main48331-21030iZVW30201004-201112

main48331-75010iZVW30200904-201003

sub48331-21030

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-42010iZVW30200904-201112

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-42010iZVW30200904-201112

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80488iZVW30200904-201011

MARK 48510-47090,REFER TO ILLUST.

sub48510-80542

main48510-80542iZVW30201011-201112

MARK 48510-47091,REFER TO ILLUST.

main48510-80573iZVW30201112-201310

MARK 48510-47130,REFER TO ILLUST.

main48510-80666iZVW30201310-201511

MARK 48510-47131,REFER TO ILLUST.

sub48510-80575

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80228iZVW30200904-201011

MARK 48520-47090,REFER TO ILLUST.

sub48520-80265

main48520-80265iZVW30201011-201112

MARK 48520-47091,REFER TO ILLUST.

main48520-80293iZVW30201112-201310

MARK 48520-47130,REFER TO ILLUST.

main48520-80367iZVW30201310-201511

MARK 48520-47131,REFER TO ILLUST.

sub48520-80295

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-47030iZVW30200904-201112

main48609-47031iZVW30201004-201008

sub48609-72010

main48609-47040iZVW30201112

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-14005iZVW30200904-201112

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-47030iZVW30200904-201112

main48609-47031iZVW30201004-201008

sub48609-72010

main48609-47040iZVW30201112

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-14005iZVW30200904-201112

48619BEARING, STRUT MOUNTING, RH

main48619-28010iZVW30200904-201112

48619ABEARING, STRUT MOUNTING, LH

main48619-28010iZVW30200904-201112

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-42010iZVW30201101-201112

TYPE A:REFER ILLUST.

main48684-42020iZVW30201101-201112

TYPE B:REFER ILLUST.

main48684-42020iZVW30200904-201101

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-42010iZVW30201101-201112

TYPE A:REFER ILLUST.

main48684-42020iZVW30200904-201101

main48684-42020iZVW30201101-201112

TYPE B:REFER ILLUST.

48687APLATE, FRONT SUSPENSION SUPPORT, RH

main48687-28010iZVW30201004-201008

48687BPLATE, FRONT SUSPENSION SUPPORT, LH

main48687-28010iZVW30201004-201008

48810LINK ASSY, FRONT STABILIZER, LH

main48820-42030iZVW30201104-201105

TYPE A:REFER ILLUST.

main48820-47020iZVW30201104-201105

TYPE B:REFER ILLUST.

main48820-47020iZVW30200904-201112

48811BAR, STABILIZER, FRONT

main48811-47060iZVW30200904-201112

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-47030iZVW30200904-201112

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-47020iZVW30200904-201112

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-12151iZVW30200904-201112

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-42030iZVW30201104-201105

TYPE A:REFER ILLUST.

main48820-47020iZVW30200904-201112

main48820-47020iZVW30201104-201105

TYPE B:REFER ILLUST.

5102

9017810030

main90178-10030

9038715033

main90387-15033

32 parts on this diagram · 1 diagram in section
