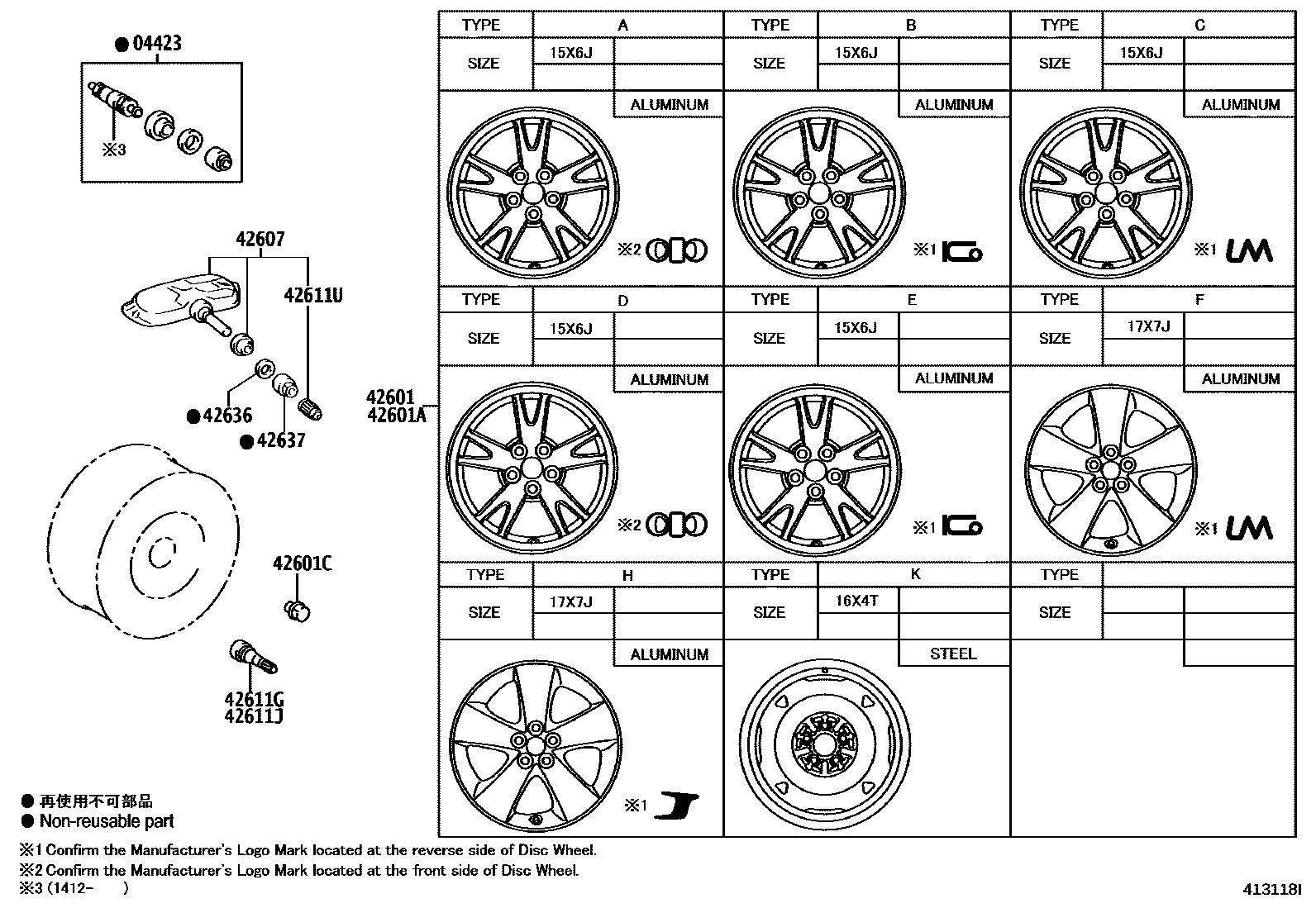

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
sub04423-33060
USA SPECIAL PACKAGE&TIRE & DISC WHEEL-215/45R17,CHROME PLATED
sub04423-33060
42601WHEEL, DISC
15X6J, #,KOREA SPEC,TYPE A:REFER ILLUST.
sub42611-47101
15X6J, #,MEXICO SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY,TYPEA:REFER ILLUST.
sub42611-47101
15X6J, #,MEXICO SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY,TYPEA:REFER ILLUST.
15X6J, #,TYPE A:REFER ILLUST.
15X6J, #,TYPE B:REFER ILLUST.
15X6J, #,MEXICO SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES,TYPE D:REFERILLUST.
sub42611-47141
15X6J, #,MEXICO SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES,TYPE E:REFERILLUST.
sub42611-47141
17X7J, #,TIRE & DISC WHEEL-215/45R17 7J,TYPE F:REFER ILLUST.
sub42611-47200
17X7J, #,KOREA SPEC&TIRE & DISC WHEEL-215/45R17 7J,TYPE F:REFER ILLUST.
sub42611-47200
17X7J, #,KOREA SPEC&TIRE & DISC WHEEL-215/45R17 7J ALMINUM,TYPE H:REFER ILLUST.
sub42611-47201
17X7J, #,KOREA SPEC&TIRE & DISC WHEEL-215/45R17 7J,TYPE H:REFER ILLUST.
sub42611-47201
17X7J, #,TIRE & DISC WHEEL-215/45R17 7J,TYPE H:REFER ILLUST.
sub42611-47201
17X7J, #,TIRE & DISC WHEEL-215/45R17 7J ALMINUM,TYPE H:REFER ILLUST.
sub42611-47201
17X7J, #,TIRE & DISC WHEEL-215/45R17 7J ALMINUM,TYPE H:REFER ILLUST.
sub42611-47211
17X7J, #,KOREA SPEC&TIRE & DISC WHEEL-215/45R17 7J ALMINUM,TYPE H:REFER ILLUST.
sub42611-47211
15X6J, #,MEXICO SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY,TYPEB:REFER ILLUST.
sub42611-47101
17X7J, #,USA SPECIAL PACKAGE&TIRE & DISC WHEEL-215/45R17,CHROME PLATED,TYPE H:REFER ILLUST.
sub42611-47591
17X7J, #,USA SPECIAL PACKAGE&TIRE & DISC WHEEL-215/45R17,CHROME PLATED,TYPE H:REFER ILLUST.
sub4261A-47021
42601AWHEEL, DISC (FOR SPARE)
16X4T,TYPE K:REFER ILLUST.
16X4T,MEXICO SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY,TYPE K:REFER ILLUST.
15X6J, #,MEXICO SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY,TYPEA:REFER ILLUST.
sub42611-47101
15X6J, #,MEXICO SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY,TYPEA:REFER ILLUST.
15X6J, #,MEXICO SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES,TYPE A:REFERILLUST.
sub42611-47140
15X6J, #,MEXICO SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES,TYPE B:REFERILLUST.
15X6J, #,MEXICO SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES,TYPE C:REFERILLUST.
sub42611-47120
15X6J, #,MEXICO SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES,TYPE D:REFERILLUST.
sub42611-47141
15X6J, #,MEXICO SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES,TYPE E:REFERILLUST.
sub42611-47141
15X6J, #,MEXICO SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY,TYPEB:REFER ILLUST.
sub42611-47101
42601CNUT, HUB (FOR AXLE)
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
sub42607-33012
KOREA SPEC&TIRE & DISC WHEEL-215/45R17 7J ALMINUM
KOREA SPEC
42611GVALVE (FOR TUBELESS TIRE)
KOREA SPEC&TIRE & DISC WHEEL-215/45R17 7J
MEXICO SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES
KOREA SPEC
KOREA SPEC&TIRE & DISC WHEEL-215/45R17 7J ALMINUM
MEXICO SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
42636WASHER, TIRE VALVE
USA SPECIAL PACKAGE&TIRE & DISC WHEEL-215/45R17,CHROME PLATED
42637NUT, YIRE TUBE
USA SPECIAL PACKAGE&TIRE & DISC WHEEL-215/45R17,CHROME PLATED
10 parts on this diagram · 3 diagrams in section
