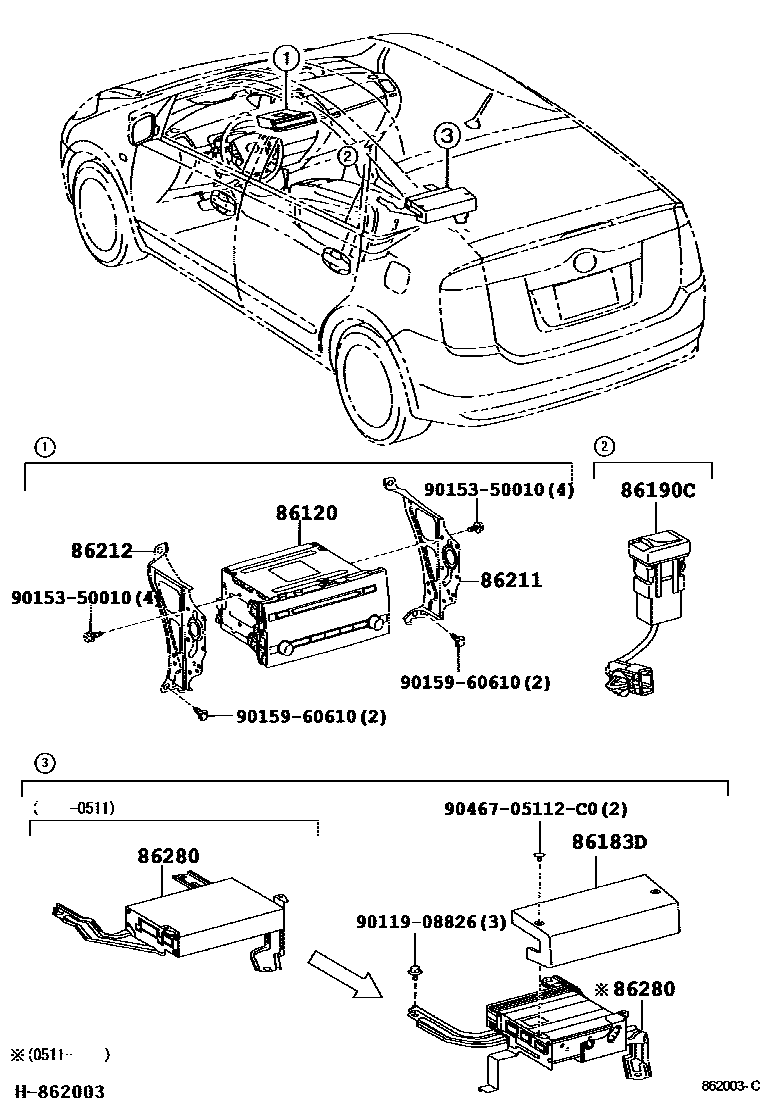

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER & NOISE FILTER

86120RECEIVER ASSY, RADIO

main86120-47090iNHW20200308-200511

MATSUSHITA,ID=51807

main86120-47100iNHW20200308-200511

MATSUSHITA,ID=56838,AUDIO-AM/FM,CST,CD-JBL-9SP

main86120-47200iNHW20..USA200511-200903

MATSUSHITA,ID=51824,AUDIO-05AM/FM+CD 6 SPEAKER

main86120-47210iNHW20..CND200511-200903

MATSUSHITA,ID=51825,W(SMART ENTRY)

main86120-47210iNHW20..USA200511-200903

MATSUSHITA,ID=51825,AUDIO-05AM/FM+CD-CHANGER JBL 9 SPEAKER

main86120-47270iNHW20200511-200903

MATSUSHITA,ID=51830

86183DCOVER, AUDIO AMPLIFIER

86190CADAPTER ASSY, STEREO JACK, NO.1

86211BRACKET, RADIO, NO.1

main86211-47040iNHW20200308-200903

86212BRACKET, RADIO, NO.2

main86212-47040iNHW20200308-200903

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0W240

main86280-0W460

9011908826

main90119-08826

9015350010

main90153-50010

9015960610

main90159-60610

9046705112C0

main90467-05112C0

10 parts on this diagram · 3 diagrams in section
