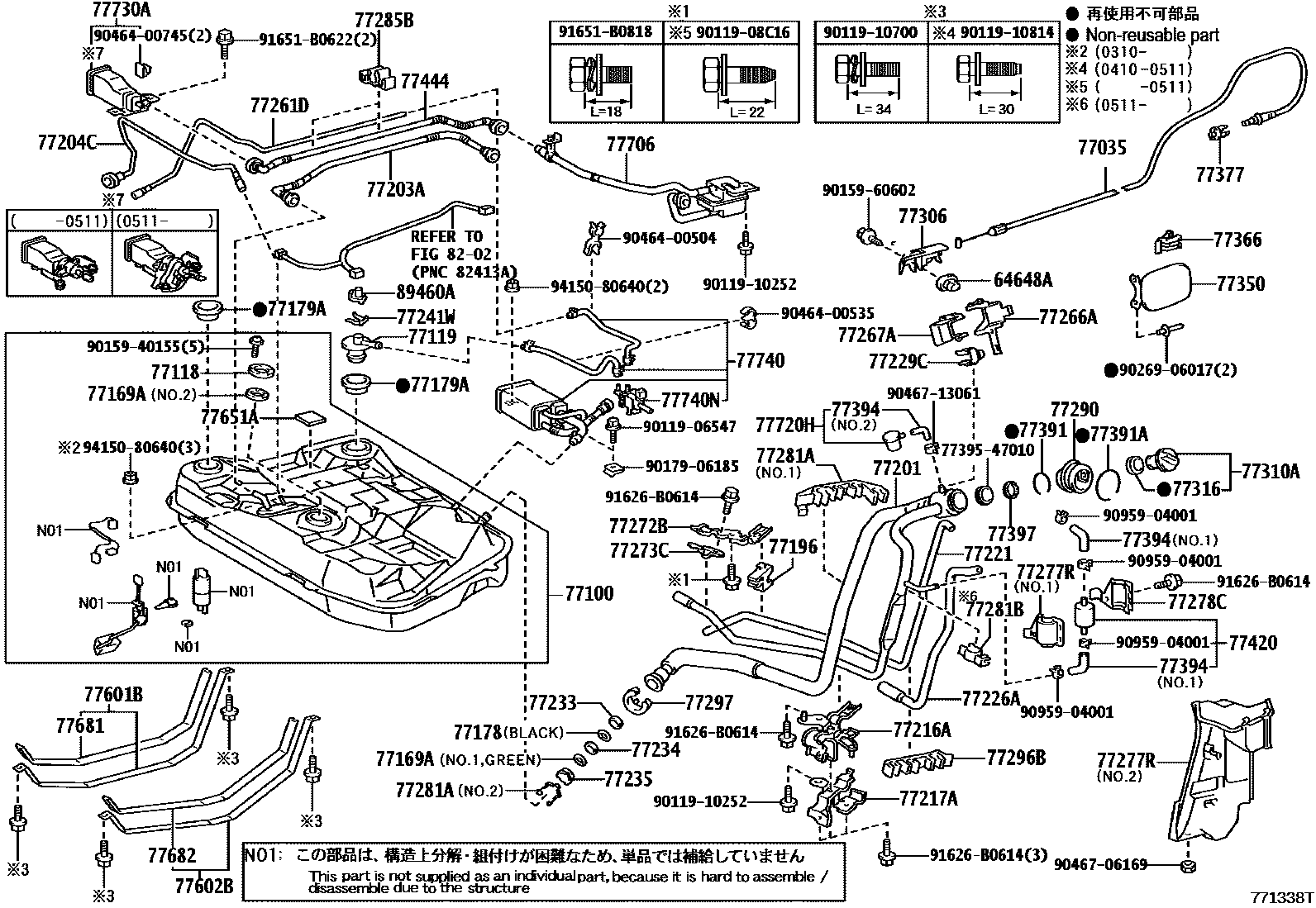

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE

64648AGROMMET, LUGGAGE DOOR LOCK OPENER

main64648-32010iNHW20200308-200903

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-47040iNHW20200308-200903

77100TANK ASSY, FUEL

main77001-47080iNHW20200308-200511

main77001-47090iNHW20200511-200903

77118PLATE, FUEL PUMP CONNECTOR

main77118-47010iNHW20200308-200903

77119RETAINER, FUEL TANK, LH

main77119-47010iNHW20200308-200903

77169AGASKET, FUEL SUCTION TUBE SET

main77169-14020iNHW20200308-200903

main77169-47020iNHW20200308-200903

GREEN

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-47020iNHW20200308-200903

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-33010iNHW20200308-200903

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-47010iNHW20200308-200903

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-47080iNHW20200308-200405

sub77201-47090

main77201-47090iNHW20200405-200808

main77201-47091iNHW20200808-200809

sub77201-47092

main77201-47092iNHW20200809-200903

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-47020iNHW20200308-200903

77204CTUBE SUB-ASSY, FUEL TANK MAIN, NO.2

main77204-47020iNHW20200308-200903

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-47050iNHW20200308-200903

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-47050iNHW20200308-200903

77221TUBE, FUEL TANK BREATHER, NO.1

main77221-47040iNHW20200308-200903

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-47030iNHW20200308-200502

main77226-47031iNHW20200502-200808

main77226-47032iNHW20200808-200809

sub77226-47033

main77226-47033iNHW20200809-200903

77229CCLAMP, BREATHER TUBE

main77229-47050iNHW20200308-200903

77233JOINT, FUEL HOSE

main77233-47020iNHW20200308-200903

77234SEAL, FUEL TUBE CONNECTOR

main77234-47010iNHW20200308-200903

77235TUBE, FUEL TANK BREATHER, NO.1

main77235-47011iNHW20200308-200903

77241WCLIP, TUBE JOINT

main77241-60320iNHW20200308-200903

77261DTUBE, FUEL TANK TO CANISTER

main77026-47010iNHW20200308-200903

77266APROTECTOR, FUEL TUBE, NO.1

main77266-47010iNHW20200308-200903

77267APROTECTOR, FUEL TUBE, NO.2

main77267-47020iNHW20200308-200903

77272BSUPPORT, BREATHER TUBE, NO.1

main77272-47030iNHW20200308-200903

77273CSUPPORT, BREATHER TUBE, NO.2

main77273-47030iNHW20200308-200903

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77275-47020iNHW20200808-200903

NO.3

main77277-47020iNHW20200308-200808

NO.2

main77277-47021iNHW20200808-200903

NO.2

main77277-47030iNHW20200308-200808

NO.1

main77277-47060iNHW20200808-200903

NO.1

77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2

main77278-47020iNHW20200308-200808

main77278-47030iNHW20200808-200903

77281ACLAMP, FUEL FILLER PIPE

main77281-47020iNHW20200308-200808

NO.1

main77281-47031iNHW20200308-200903

NO.2

77281BCLAMP, FUEL HOSE(FOR REAR FUEL MAIN)

main77281-47040iNHW20200511-200808

77285BCLAMP, FUEL TUBE W/GROMMET, NO.1

main77285-47030iNHW20200308-200903

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-47020iNHW20200308-200312

sub77291-47021

main77291-47021iNHW20200312-200903

77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1

main77296-47020iNHW20200308-200502

main77296-47030iNHW20200502-200809

sub77296-47031

main77296-47031iNHW20200809-200903

77297CONNECTOR, FUEL TUBE

main77297-47040iNHW20200308-200903

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-47010iNHW20200308-200903

77310ACAP ASSY, FUEL TANK

main77300-47010iNHW20200308-200808

main77300-47020iNHW20200808-200903

sub77300-75010

77316GASKET, FUEL TANK CAP

main77316-33020iNHW20200308-200808

77350LID ASSY, FUEL FILLER OPENING

main77350-47020iNHW20200308-200903

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30080iNHW20200308-200903

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iNHW20200308-200903

77391RING, FUEL INLET BOX

main77391-12020iNHW20200308-200903

77391ARING, FUEL INLET BOX

main77391-12010iNHW20200312-200903

main77391-28010iNHW20200308-200312

77394HOSE, VALVE TO FUEL FILLER PIPE

main77394-47020iNHW20200308-200511

NO.2

main77394-47030iNHW20200308-200903

NO.1

sub77394-47040

77397PLATE, FUEL INLET PIPE SEAL

main77397-47010iNHW20200308-200903

77420VALVE ASSY, FUEL CUT OFF, NO.2

main77420-47030iNHW20200308-200903

77444HOSE, FUEL TANK VENT

main77404-47010iNHW20200308-200903

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-47030iNHW20200308-200903

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-47030iNHW20200308-200903

77651ACUSHION, FUEL TANK, NO.1

main77651-20090iNHW20200308-200903

77681SEAT, FUEL TANK BAND, RH

main77681-32060iNHW20200308-200903

77682SEAT, FUEL TANK BAND, LH

main77681-32060iNHW20200308-200903

77706FILTER SUB-ASSY, CHARCOAL CANISTER

main77706-47010iNHW20200308-200903

77720HVALVE ASSY, FUEL OUTLET

main77720-47020iNHW20200308-200903

77730ACANISTER ASSY, TRAP W/OUTLET VALVE

main77730-47020iNHW20200308-200511

main77730-47030iNHW20200511-200903

77740CANISTER ASSY, CHARCOAL

main77740-47050iNHW20200308-200903

77740NVALVE, VACUUM SWITCHING(FOR CHARCOAL CANISTER)

main90910-12274iNHW20200308-200903

8202

89460ASENSOR ASSY, VAPOR PRESSURE

main89461-33020iNHW20200308-200903

7739547010

main77395-47010

9011906547

main90119-06547

9011908C16

main90119-08C16

9011910252

main90119-10252

9011910700

main90119-10700

9011910814

main90119-10814

9015940155

main90159-40155

9015960602

main90159-60602

9017906185

main90179-06185

9026906017

main90269-06017

9046400504

main90464-00504

9046400535

main90464-00535

9046400745

main90464-00745

9046706169

main90467-06169

9046713061

main90467-13061

9095904001

main90959-04001

91626B0614

main91626-B0614

91651B0622

main91651-B0622

91651B0818

main91651-B0818

9415080640

main94150-80640

78 parts on this diagram · 3 diagrams in section
