FRONT SEAT & SEAT TRACK

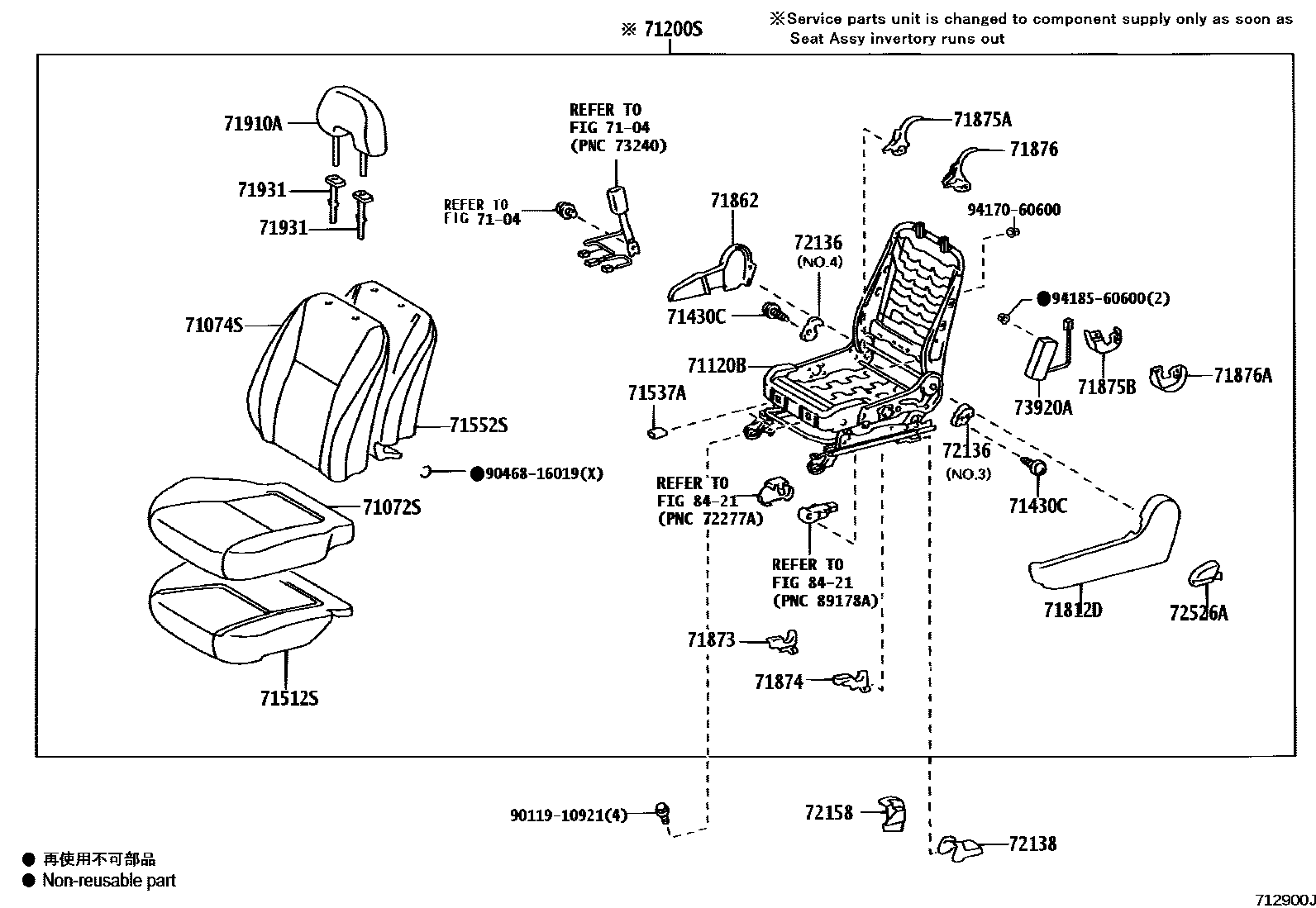

Parts diagram
7104
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-47070-A2i200308-200311
IVORY,TRIM0#
sub71072-47071
main71072-47070-B2i200308-200311
MD.GRAY,TRIM1#
sub71072-47071
main71072-47100-A2i200311-200511
IVORY,TRIM0#
sub71072-47101
main71072-47100-B2i200311-200511
MD. GRAY,TRIM1#
sub71072-47101
main71072-47130-B0i200511-200903
MD.GRAY,TRIM1#
sub71072-47131
main71072-47130-E1i200511-200903
GREGE,TRIM4#
sub71072-47131
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-47080-A0i200308-200511
IVORY,TRIM0#
sub71073-47081
main71073-47080-B0i200308-200511
MD.GRAY,TRIM1#
sub71073-47081
main71073-47120-B0i200511-200903
MD.GRAY,TRIM1#
sub71073-47121
main71073-47120-E1i200511-200903
GREGE,TRIM4#
sub71073-47121
main71074-47050-B0i200608-200903
MD.GRAY,TRIM1#
sub71074-47051
sub71074-47050
main71074-47050-E1i200608-200903
GREGE,TRIM4#
sub71074-47051
sub71074-47050
71120BFRAME ASSY, FRONT SEAT W/ADJUSTER, LH
main71120-47030i200308-200311
main71120-47031i200311-200903
main71120-47041i200608-200903
71200SSEAT ASSY, FRONT LH
main71200-47240-B1i200608-200903
MD.GRAY,TRIM1#
main71200-47240-E2i200608-200903
GREGE,TRIM4#
71430CCLIP
main90467-09087i200308-200511
main90467-09087-22i200511-200903
BLACK
sub90467-09087
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-47020i200308-200511
main71512-47050i200511-200903
71537APROTECTOR, FRONT SEAT CUSHION
main71537-26010i200308-200903
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-47050i200308-200511
main71552-47060i200511-200903
main71552-47080i200608-200903
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-52140-A0i200308-200511
IVORY,TRIM0#
sub71812-52140
main71812-52140-B1i200308-200903
MD.GRAY,TRIM1#
sub71812-52140
main71812-52140-E0i200511-200903
GREGE,TRIM4#
sub71812-52140
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-47050-A0i200308-200511
IVORY,TRIM0#
sub71862-47050
main71862-47050-B0i200308-200903
MD.GRAY,TRIM1#
sub71862-47050
main71862-47050-E0i200511-200903
GREGE,TRIM4#
sub71862-47050
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-21010-A0i200308-200511
IVORY,TRIM0#
sub71873-21010
main71873-21010-B0i200308-200511
MD.GRAY,TRIM1#
sub71873-21010
main71873-21010-B0i200511-200805
MD.GRAY,TRIM1#,RH SEAT
sub71873-21010
main71873-21010-B0i200511-200903
MD.GRAY,TRIM1#,LH SEAT
sub71873-21010
main71873-21010-E4i200511-200805
GREGE,TRIM4#,RH SEAT
sub71873-21010
main71873-21010-E4i200511-200903
GREGE,TRIM4#,LH SEAT
sub71873-21010
main71873-68010-B1i200806-200903
MD.GRAY,TRIM1#,RH SEAT
sub71873-68010
main71873-68010-E1i200806-200903
GREGE,TRIM4#,RH SEAT
sub71873-68010
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-21010-A0i200308-200511
IVORY,TRIM0#
sub71874-21010
main71874-21010-B0i200511-200903
MD.GRAY,TRIM1#,RH SEAT
sub71874-21010
main71874-21010-B0i200308-200511
MD.GRAY,TRIM1#
sub71874-21010
main71874-21010-B0i200511-200805
MD.GRAY,TRIM1#,LH SEAT
sub71874-21010
main71874-21010-E4i200511-200903
GREGE,TRIM4#,RH SEAT
sub71874-21010
main71874-21010-E4i200511-200805
GREGE,TRIM4#,LH SEAT
sub71874-21010
main71874-68010-B1i200806-200903
MD.GRAY,TRIM1#,LH SEAT
main71874-68010-E1i200806-200903
GREGE,TRIM4#,LH SEAT
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
main71875-52030-A0i200308-200511
IVORY,TRIM0#
sub71875-52030
main71875-52030-B2i200308-200903
MD.GRAY,TRIM1#
sub71875-52030
main71875-52030-E2i200511-200903
GREGE,TRIM4#
sub71875-52030
71875BCOVER, RECLINING ADJUSTER INSIDE, RH
main71875-58060i200308-200903
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71876-52030-A0i200308-200511
IVORY,TRIM0#
sub71876-52030
main71876-52030-B2i200308-200903
MD.GRAY,TRIM1#
sub71876-52030
main71876-52030-E3i200511-200903
GREGE,TRIM4#
sub71876-52030
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
main71876-58060i200308-200903
71910AHEADREST ASSY, FRONT SEAT
main71910-47060-A2i200308-200511
IVORY,TRIM0#
main71910-47060-B2i200308-200511
MD.GRAY,TRIM1#
main71910-47080-B0i200511-200903
MD.GRAY,TRIM1#
sub71910-47081
sub71910-47080
main71910-47080-E1i200511-200903
GREGE,TRIM4#
sub71910-47081
sub71910-47080
71931SUPPORT, FRONT SEAT HEADREST
main71930-42020-A0i200308-200511
W(LOCK)&W(BUTTON),IVORY,TRIM0#
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-B6i200308-200706
W(LOCK)&W(BUTTON),MD.GRAY,TRIM1#
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-E1i200511-200706
W(LOCK)&W(BUTTON),GREGE,TRIM4#
sub71930-52030
sub71930-42020
sub71930-44020
main71930-52030-B7i200707-200903
W(LOCK)&W(BUTTON),MD.GRAY,TRIM1#
sub71930-52030
main71930-52030-E0i200707-200903
W(LOCK)&W(BUTTON),GREGE,TRIM4#
sub71930-52030
main71931-42020-A0i200308-200511
W(LOCK)&W/O(BUTTON),IVORY,TRIM0#
sub71931-42020
main71931-42020-B6i200308-200903
W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1#
sub71931-42020
main71931-42020-E1i200511-200903
W(LOCK)&W/O(BUTTON),GREGE,TRIM4#
sub71931-42020
72136SPACER, SEAT TRACK, LOWER NO.1
main72136-47010i200308-200903
NO.1
main72136-47020i200308-200903
NO.2
main72136-47030i200308-200903
NO.3
main72136-47040i200308-200903
NO.4
72138COVER, SEAT TRACK, OUTER LH
main72137-47030-A0i200308-200511
IVORY,TRIM0#
sub72137-47030
main72137-47030-B0i200308-200903
MD.GRAY,TRIM1#
sub72137-47030
main72137-47030-E0i200511-200903
GREGE,TRIM4#
sub72137-47030
72158COVER, SEAT TRACK BRACKET, INNER LH
main72158-47030-A0i200308-200511
IVORY,TRIM0#
sub72158-47030
main72158-47030-B0i200308-200903
MD.GRAY,TRIM1#
sub72158-47030
main72158-47030-E0i200511-200903
GREGE,TRIM4#
sub72158-47030
72526AHANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-58040-A0i200308-200511
IVORY,TRIM0#
sub72526-58040
main72526-58040-B3i200308-200903
MD.GRAY,TRIM1#
sub72526-58040
main72526-58040-E3i200511-200903
GREGE,TRIM4#
sub72526-58040
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-47031i200608-200903
8421
9011910921
main90119-10921
9046816019
main90468-16019
9417060600
main94170-60600
9418560600
main94185-60600

29 parts on this diagram · 4 diagrams in section
