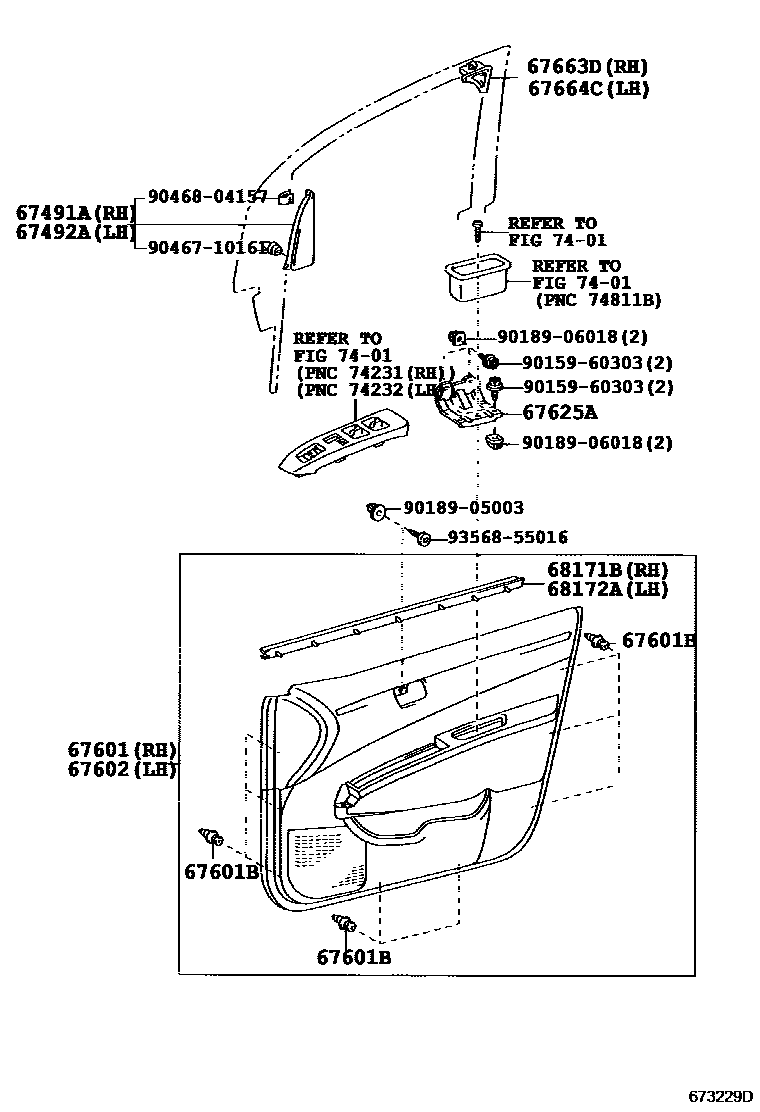

FRONT DOOR PANEL & GLASS
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
BLACK,TRIM1#
BLACK,TRIM4#
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
BLACK,TRIM1#
BLACK,TRIM4#
67625ABRACKET, FRONT DOOR TRIM, NO.1
67663DGARNISH, DOOR FRAME, RH
67664CGARNISH, DOOR FRAME, LH
68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH
7401
9015960303
main90159-60303
9018905003
main90189-05003
9018906018
main90189-06018
9046710161
main90467-10161
9046804157
main90468-04157
9356855016
main93568-55016
17 parts on this diagram · 2 diagrams in section
