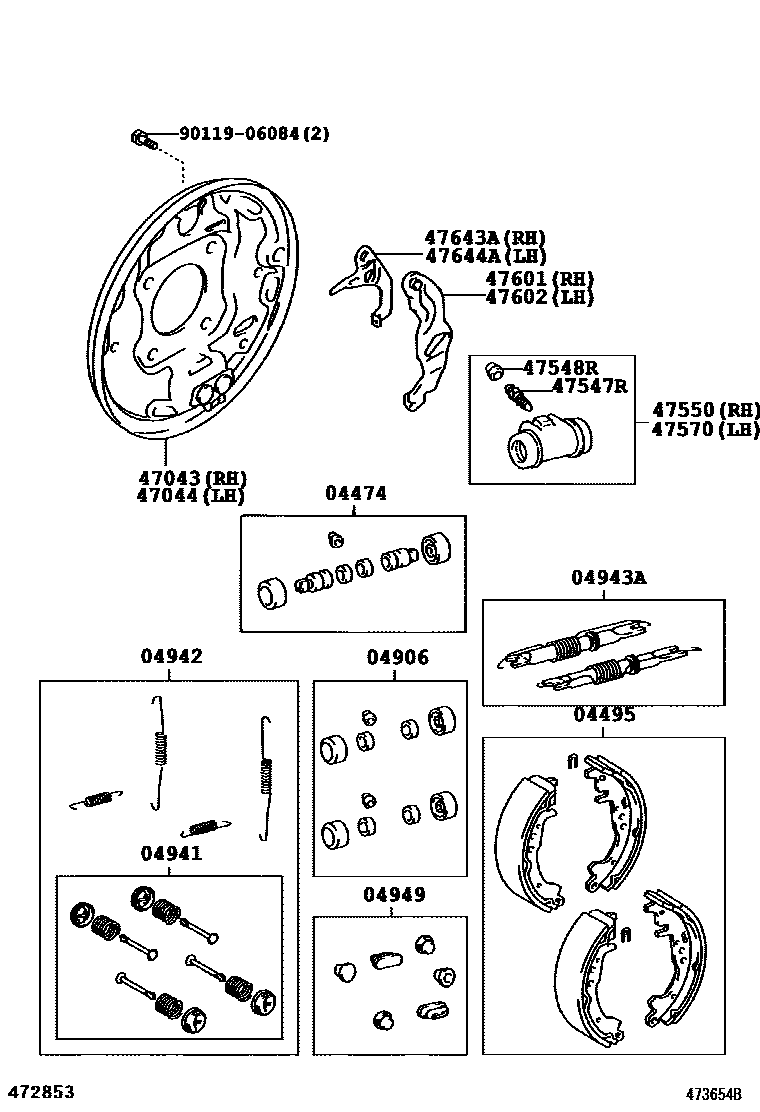

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-52020i¥1,730200308-200903

04495SHOE KIT, REAR BRAKE

main04495-52040i¥6,500200308-200804

MARK NBK LN521

main04495-52100i¥6,300200804-200903

MARK NBK LN521

sub04495-52140¥6,300

04906CUP KIT, REAR WHEEL CYLINDER

main04906-10021i¥870200502-200903

main04906-52020i¥1,110200308-200502

sub04906-10021¥870

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-12010i¥2,700200308-200502

sub04941-46010¥1,690

main04941-46010i¥1,690200502-200903

04942SPRING KIT, REAR BRAKE

main04942-12010i¥3,230200308-200502

sub04942-46010¥3,230

main04942-46010i¥3,230200502-200511

main04942-52050i¥2,060200511-200903

04943ASTRUT KIT, REAR BRAKE

main04943-12010i¥2,730200308-200903

04949PLUG KIT, REAR BRAKE

main04949-12010i¥800200308-200903

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-20140i¥4,050200308-200804

main47043-20560i¥2,800200804-200903

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-20140i¥4,050200308-200804

main47044-20560i¥2,800200804-200903

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010i¥200200308-200903

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010i¥160200308-200903

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-20211i¥3,130200308-200903

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-20101i¥3,130200308-200903

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-47010i¥700200308-200512

sub47601-52100¥580

main47601-52100i¥580200512-200903

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-47010i¥700200308-200512

sub47602-52100¥580

main47602-52100i¥580200512-200903

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-47010i¥200200308-200903

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-47010i¥200200308-200903

9011906084

main90119-06084¥100

18 parts on this diagram · 1 diagram in section
