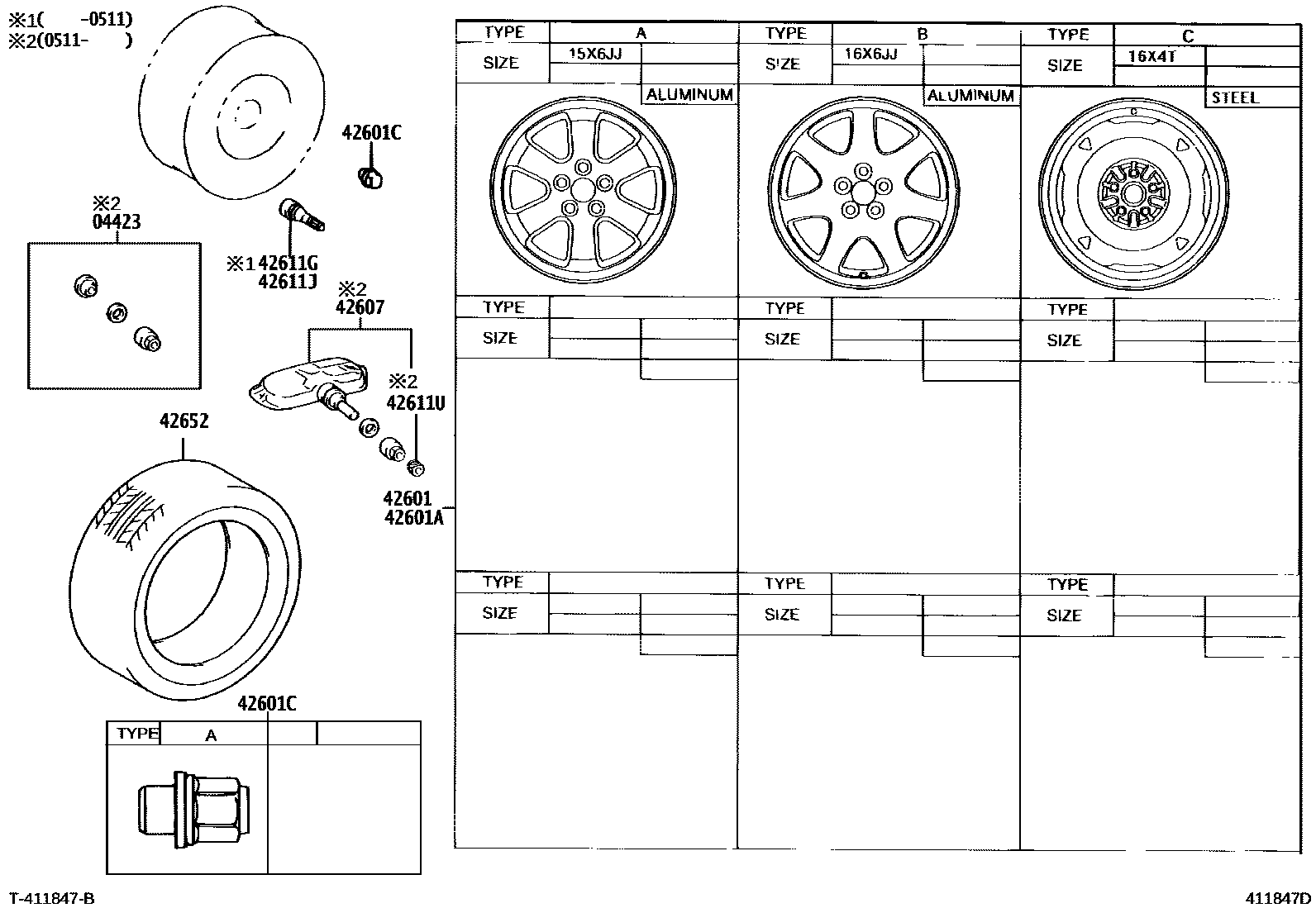

DISC WHEEL & WHEEL CAP

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33030i200511-200903

42601WHEEL, DISC

main42611-47050i200308-200903

15X6JJ,#,TYPE A:REFER ILLUST.

main42611-47070i200608-200903

16X6JJ,#,TIRE & DISC WHEEL-195/55R16 6JJ ALUMINUM,TYPE B:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-20840i200308-200903

16X4T,TYPE C:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033i200308-200903

TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-33010i200511-200601

main42607-33011i200602-200903

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009i200308-200511

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i200308-200903

42611UCAP, TIRE VALVE

main90942-05039i200511-200903

42652TIRE

main42652-12A40i200308-200707

P185/65R15,(J)

main42652-12A41i200708-200903

P185/65R15

main42652-47100i200608-200903

195/55R16,TIRE & DISC WHEEL-195/55R16 6JJ ALUMINUM

main42652-AB080i200308-200708

P185/65R15,(L)

9 parts on this diagram · 3 diagrams in section
