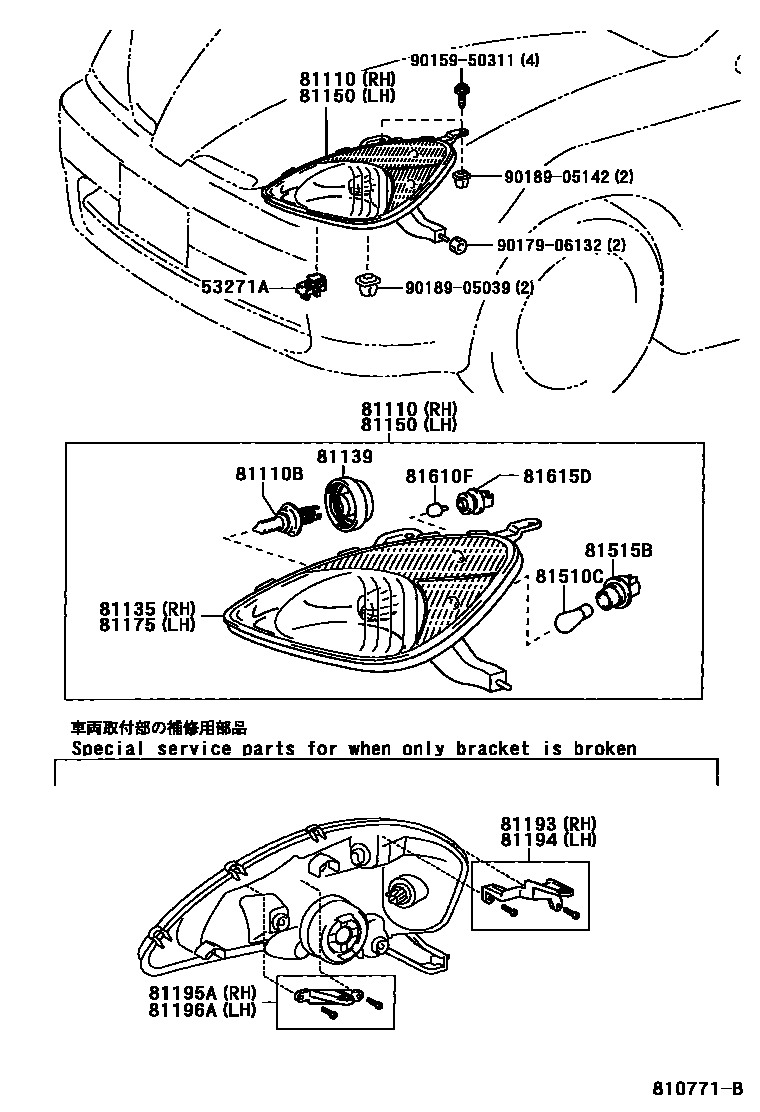

HEADLAMP
53271ABRACKET, HEADLAMP MOUNTING
81110HEADLAMP ASSY, RH
81110BBULB(FOR HEADLAMP, NO.1)
12V 60/55W,HALOGEN
81135UNIT ASSY, HEADLAMP, RH
81139COVER, HEADLAMP SOCKET
81150HEADLAMP ASSY, LH
81175UNIT ASSY, HEADLAMP, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81615DSOCKET, CLEARANCE LAMP
9015950311
main90159-50311
9017906132
main90179-06132
9018905039
main90189-05039
9018905142
main90189-05142
19 parts on this diagram · 1 diagram in section
