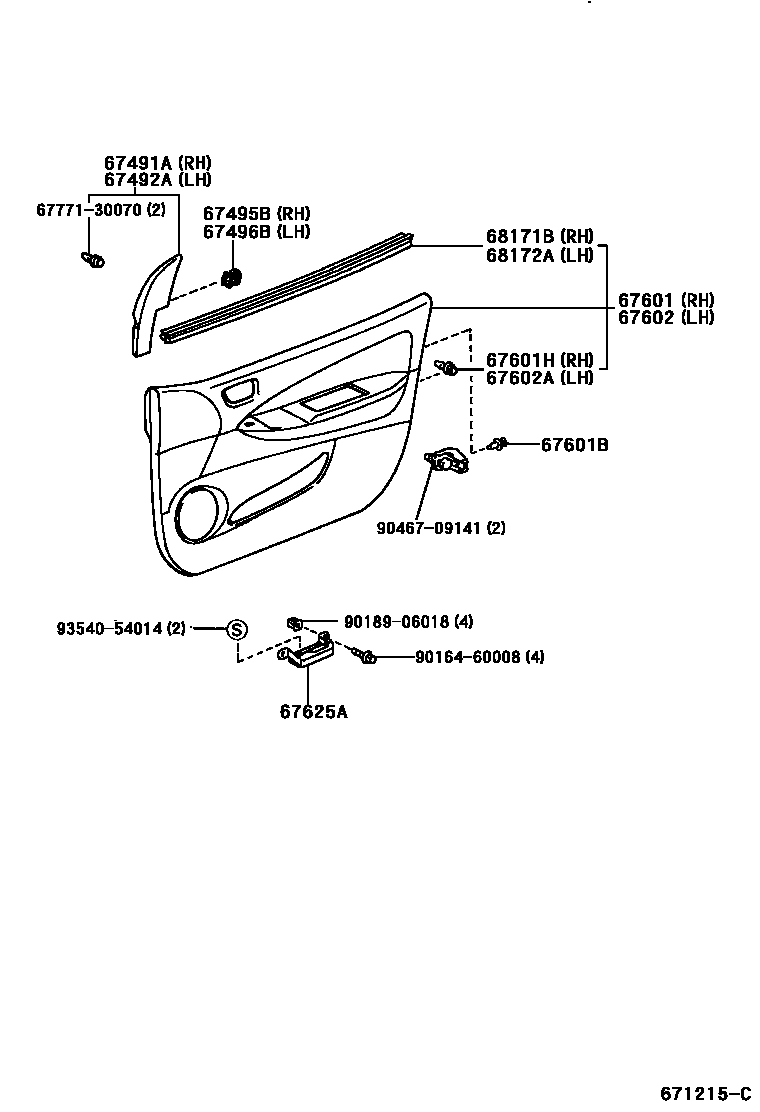

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-47010iNHW11200005

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-47010iNHW11200005

67495BCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-47010iNHW11200005

67496BCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-47010iNHW11200005

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-47040-K0iNHW11200005

AMETHYST,TRIM9#

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-07066-P3iNHW11200005

LT. AMETHYST,TRIM9#

sub90467-07066

67601HRETAINER, DOOR TRIM, RH

main67771-12050iNHW11200005

RED

main67771-32120iNHW11200005

GREEN

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-47040-K0iNHW11200005

AMETHYST,TRIM9#

67602ARETAINER, DOOR TRIM, LH

main67771-12050iNHW11200005

RED

main67771-32120iNHW11200005

GREEN

67625ABRACKET, FRONT DOOR TRIM, NO.1

main67625-44010iNHW11200005

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-47010iNHW11200005

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-47010iNHW11200005

6777130070WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30070

9016460008

main90164-60008

9018906018

main90189-06018

9046709141

main90467-09141

9354054014

main93540-54014

17 parts on this diagram · 2 diagrams in section
