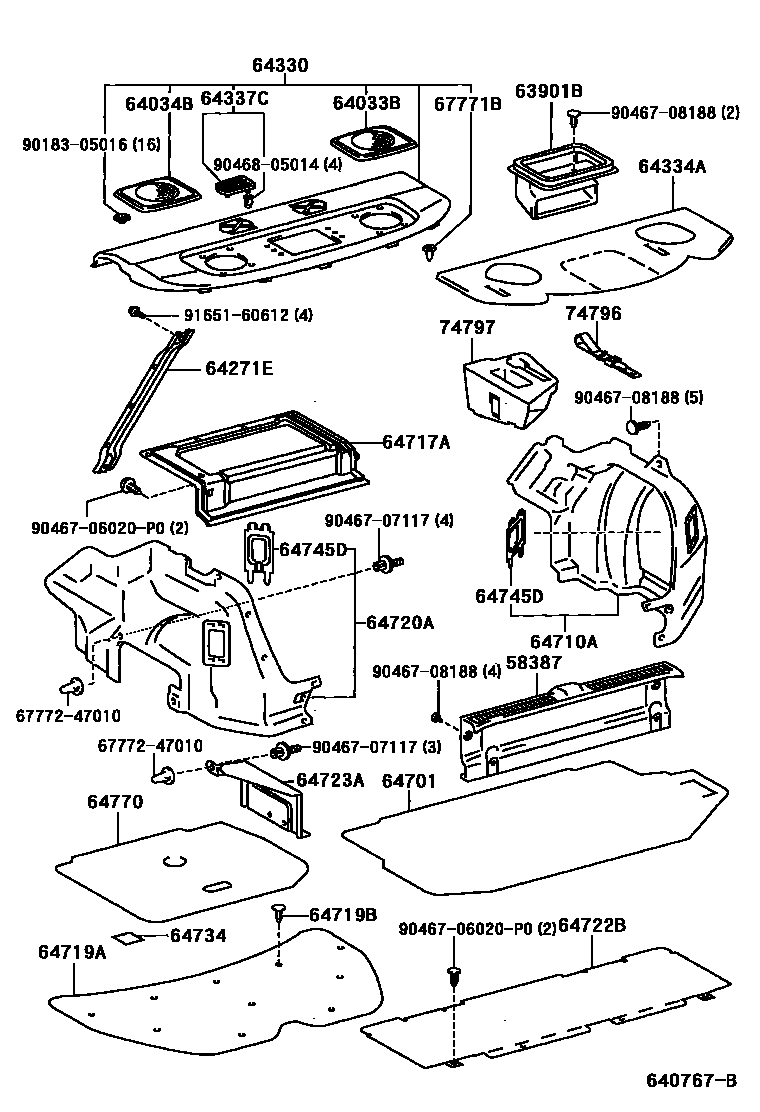

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
SHADOW GRAY,TRIM9#
63901BDUCT, VENTILATOR
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
64271EPANEL, ROOM PARTITION
64330PANEL ASSY, PACKAGE TRAY TRIM
AMETHYST,TRIM9#
64334APAD, PACKAGE TRAY TRIM
64337CGARNISH, PACKAGE TRAY TRIM
AMETHYST,TRIM9#
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
SHADOW GRAY,TRIM9#
64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
SHADOW GRAY,TRIM9#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
SHADOW GRAY,TRIM9#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
SHADOW GRAY,TRIM9#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH
SHADOW GRAY,TRIM9#
64722BCOVER, LUGGAGE COMPARTMENT TRIM, NO.2
SHADOW GRAY,TRIM9#
64723ACOVER, LUGGAGE COMPARTMENT TRIM, INNER LOWER
SHADOW GRAY,TRIM9#
64734INSULATOR, LUGGAGE COMPARTMENT FLOOR, NO.2
64745DCOVER, REAR COMBINATION LAMP SERVICE, RH
SHADOW GRAY,TRIM9#
64770COVER ASSY, SPARE WHEEL
67771BRETAINER, PACKAGE TRAY TRIM
74796HOLDER, WARNING REFLECTOR
74797BOX, WARNING REFLECTOR
6777247010WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-47010
9018305016
main90183-05016
9046706020P0
main90467-06020P0
9046707117
main90467-07117
9046708188
main90467-08188
9046805014
main90468-05014
9165160612
main91651-60612
29 parts on this diagram · 1 diagram in section
