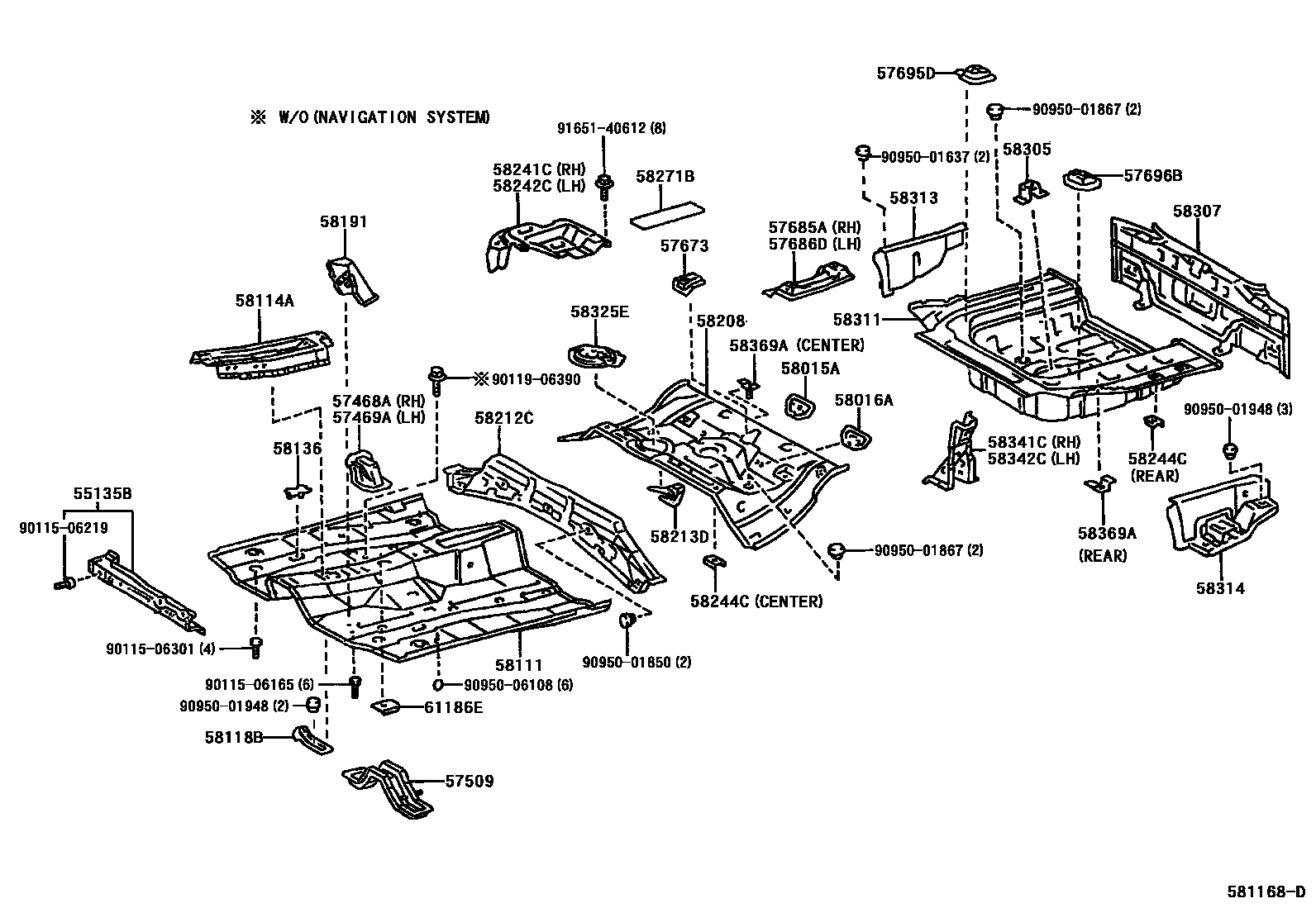

FLOOR PAN & LOWER BACK PANEL
55135BMEMBER, FRONT PANEL
57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH
57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57673BRACKET, REAR SEATBACK HINGE MOUNTING
57685ABRACKET, REAR FLOOR MOUNTING, NO.1 RH
57686DBRACKET, REAR FLOOR MOUNTING, NO.1 LH
57695DBRACKET, REAR FLOOR MOUNTING, NO.2 RH
57696BBRACKET, REAR FLOOR MOUNTING, NO.2 LH
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58114AREINFORCEMENT, FRONT FLOOR PANEL
58136COVER, FRONT FLOOR HOLE
58191FOOTREST, FRONT FLOOR
58208PAN, CENTER FLOOR
58212CPAN, CENTER FLOOR, FRONT
58213DREINFORCEMENT, CENTER FLOOR PANEL
58241CPANEL, FLOOR SIDE, RH
58242CPANEL, FLOOR SIDE, LH
58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH
REAR
CENTER
58271BPLATE, FLOOR SIDE, REAR, RH
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH
61186EBRACKET, INSTRUMENT PANEL
9011506165
main90115-06165
9011506219
main90115-06219
9011506301
main90115-06301
9011906390
main90119-06390
9095001637
main90950-01637
9095001850
main90950-01850
9095001867
main90950-01867
9095001948
main90950-01948
9095006108
main90950-06108
9165140612
main91651-40612
43 parts on this diagram · 1 diagram in section
