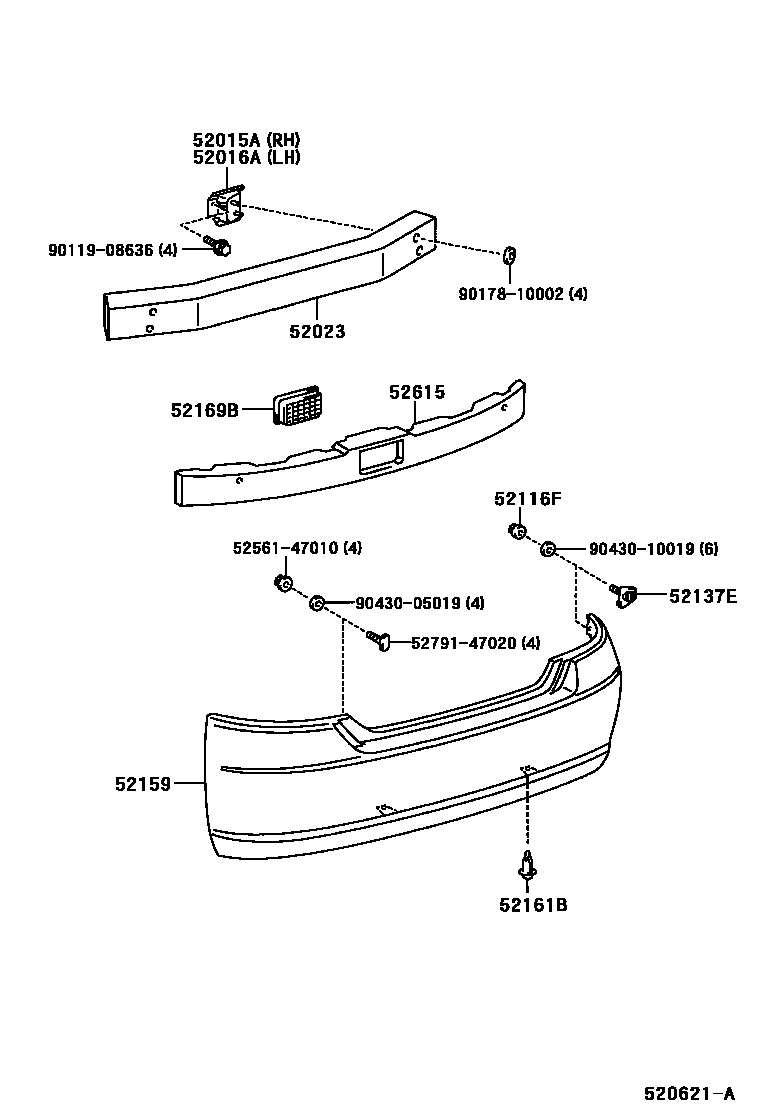

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52181-47020iNHW11200005

52016AARM SUB-ASSY, REAR BUMPER, LH

main52182-47010iNHW11200005

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52171-47010iNHW11..CND200005

main52171-47020iNHW11..USA200005

52116FRETAINER, REAR BUMPER

main52116-12310iNHW11200005

52137EPLATE, REAR BUMPER BRACKET, NO.1

main52137-12090iNHW11200005

52159COVER, REAR BUMPER

main52159-47900iNHW11200005

52161BPIECE, REAR BUMPER

main52161-16010iNHW11200005

sub52161-0K040

52169BBRACKET, REAR BUMPER, CENTER

main52169-02010iNHW11200005

52615ABSORBER, REAR BUMPER ENERGY

main52615-47010iNHW11200005

5256147010RETAINER, REAR BUMPER, UPPER CENTER

main52561-47010

5279147020BOLT, BUMPER MOULDING SET, NO.1

main52791-47020

9011908636

main90119-08636

9017810002

main90178-10002

9043005019

main90430-05019

9043010019

main90430-10019

15 parts on this diagram · 1 diagram in section
