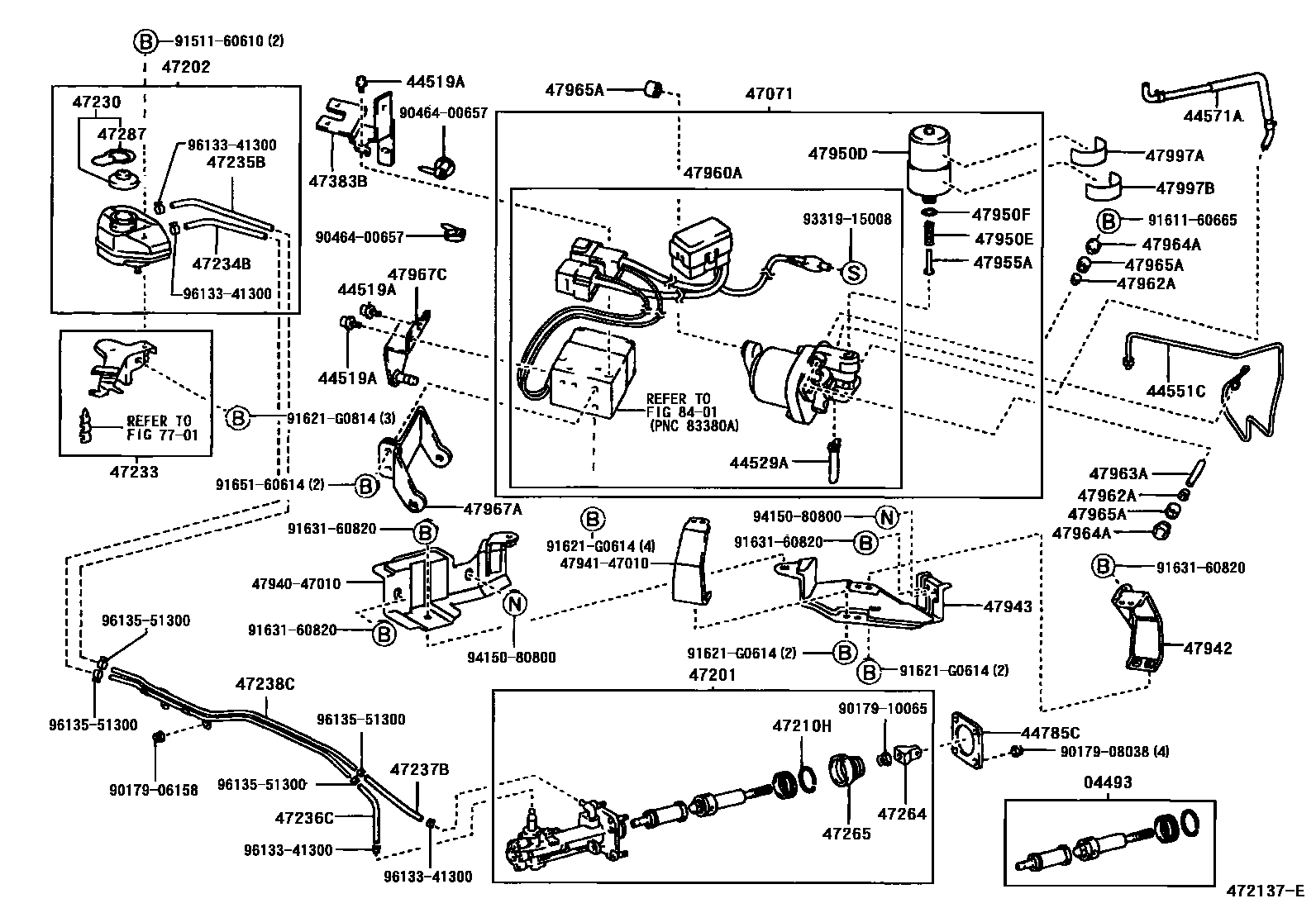

BRAKE MASTER CYLINDER
04493CYLINDER KIT, BRAKE MASTER
44519ABOLT(FOR BRAKE BOOSTER PUMP)
44529AHOSE, BRAKE ACTUATOR BREATHER
44551CTUBE, BRAKE ACTUATOR, NO.1
44571AHOSE, BRAKE ACTUATOR, NO.1
44785CGASKET, BRAKE BOOSTER
47071PUMP SUB-ASSY, BRAKE BOOSTER W/ACCUMULATOR
47201CYLINDER SUB-ASSY, BRAKE MASTER
47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47210HRING, SNAP(FOR BRAKE MASTER CYLINDER)
47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47233BRACKET, RESERVOIR
47234BTUBE, RESERVOIR, NO.1
47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2
47236CHOSE, RESERVOIR TUBE
47237BHOSE, RESERVIOR TUBE
47238CTUBE, RESERVOIR
47264CLEVIS, MASTER CYLINDER PUSH ROD
47265BOOT, MASTER CYLINDER
47287LABEL, BRAKE FLUID INFORMATION
47383BBRACKET, CONNECTOR
47942BRACKET, BRAKE POWER SUPPLY, NO.2
47943BRACKET, BRAKE POWER SUPPLY, NO.3
47950DACCUMULATOR ASSY, BRAKE BOOSTER
47950ESPRING, COMPRESSION(FOR BRAKE BOOSTER ACCUMULATOR)
47950FRING, O(FOR BRAKE BOOSTER ACCUMULATOR)
47955APIPE, BRAKE BOOSTER ACCUMULATOR
47960APUMP ASSY, BRAKE BOOSTER
47962ACOLLAR, BRAKE BOOSTER PUMP
47963ASHAFT, BRAKE BOOSTER PUMP
47964AWASHER, BRAKE BOOSTER PUMP
47965ABUSH, BRAKE BOOSTER PUMP
47967ABRACKET, BRAKE BOOSTER PUMP, NO.1
47967CBRACKET, BRAKE BOOSTER PUMP, NO.2
47997ALABEL, ACCUMULATOR CAUTION, NO.1
sub47997-48010
47997BLABEL, ACCUMULATOR CAUTION, NO,2
7701
8401
4794047010BRACKET ASSY, BRAKE TRACTION
main47940-47010
4794147010BRACKET, BRAKE POWER SUPPLY, NO.1
main47941-47010
9017906158
main90179-06158
9017908038
main90179-08038
9017910065
main90179-10065
9046400657
main90464-00657
9151160610
main91511-60610
9161160665
main91611-60665
91621G0614
main91621-G0614
91621G0814
main91621-G0814
9163160820
main91631-60820
9165160614
main91651-60614
9331915008
main93319-15008
9415080800
main94150-80800
9613341300
main96133-41300
9613551300
main96135-51300
54 parts on this diagram · 1 diagram in section
