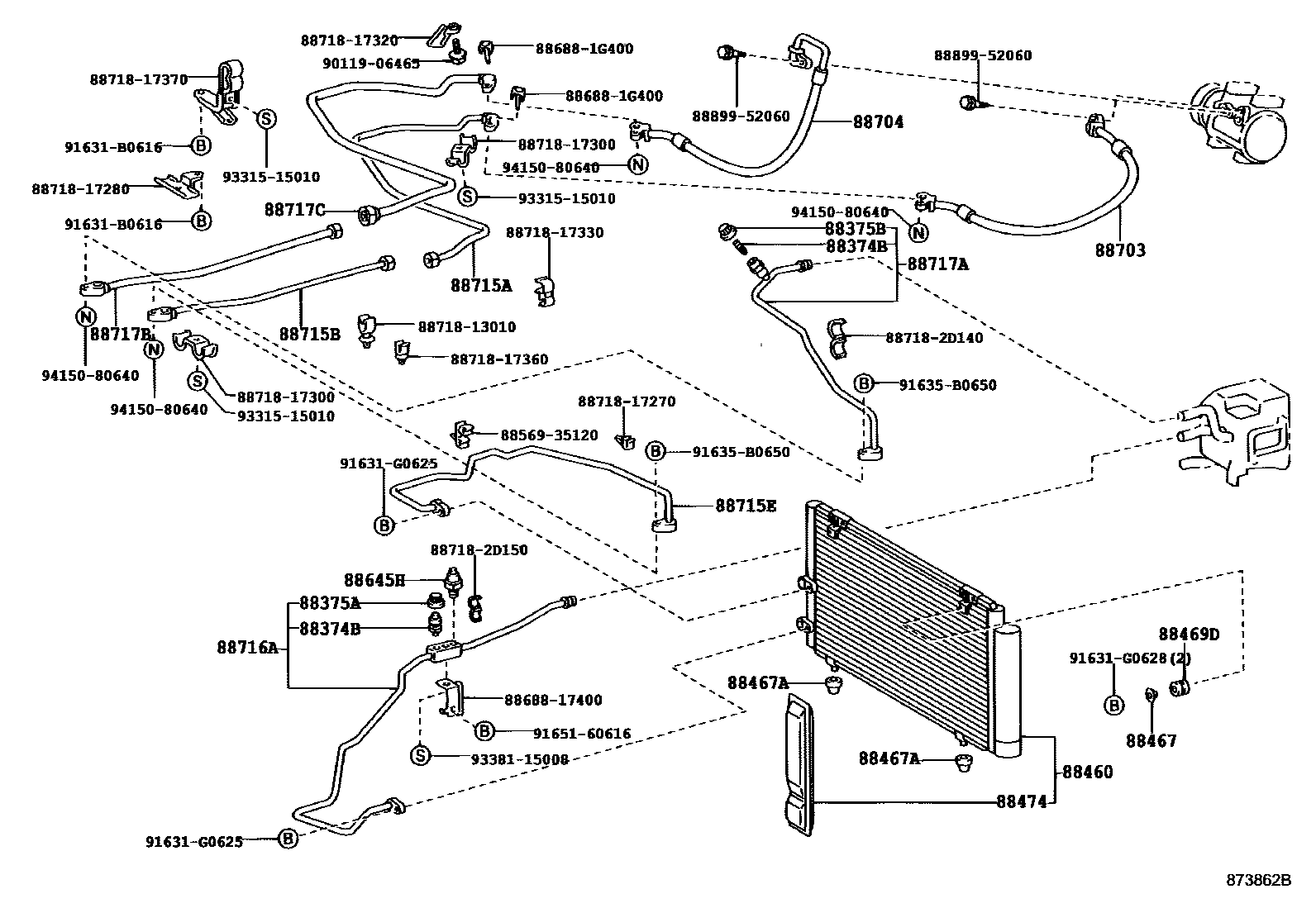

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1O RING

88374BVALVE, SERVICE, NO.1

main88374-30010×2iZZW30199912-200208

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30280iZZW30199912-200208

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iZZW30199912-200208

88460CONDENSER ASSY, COOLER

main88460-17130iZZW30199912-200208

main88460-17140iZZW30200208-200501

88467CUSHION, COOLER CONDENSER, NO.1

main88467-16100×2iZZW30199912-200208

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-20190×2iZZW30199912-200208

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-16020×2iZZW30199912-200208

88474DRYER, COOLER

main88474-17010iZZW30200208-200501

main88474-47010iZZW30199912-200208

88645HSWITCH, PRESSURE NO.1

main88645-17020iZZW30199912-200208

sub88645-60030

88703HOSE SUB-ASSY, DISCHARGE

main88703-17050iZZW30199912-200208

main88703-17060iZZW30200208-200501

88704HOSE SUB-ASSY, SUCTION

main88704-17050iZZW30199912-200208

main88704-17060iZZW30200208-200501

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-17300iZZW30199912-200208

main88715-17360iZZW30200402-200501

88715BPIPE, COOLER REFRIGERANT DISCHARGE, B

main88715-17290iZZW30199912-200208

88715EPIPE, COOLER REFRIGERANT DISCHARGE, E

main88715-17310iZZW30199912-200208

main88715-17311iZZW30200402-200501

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-17240iZZW30199912-200208

main88716-17241iZZW30200402-200501

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-17230iZZW30199912-200208

88717BPIPE, COOLER REFRIGERANT SUCTION, B

main88717-17240iZZW30199912-200208

88717CPIPE, COOLER REFRIGERANT SUCTION, C

main88717-17250iZZW30199912-200208

main88717-17260iZZW30200402-200501

8856935120CLAMP (FOR COOLER RELAY)

main88569-35120

8868817400BRACKET, COOLER DIAPHRAGM

main88688-17400

886881G400BRACKET, COOLER DIAPHRAGM

main88688-1G400

8871813010PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-13010

8871817270PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-17270

8871817280PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-17280

8871817300PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-17300

8871817320PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-17320

8871817330PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-17330

8871817360PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-17360

8871817370PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-17370

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8889952060COVER, EVAPORATOR

main88899-52060

9011906465

main90119-06465

91631B0616

main91631-B0616

91631G0625

main91631-G0625

91631G0628

main91631-G0628

91635B0650

main91635-B0650

9165160616

main91651-60616

9331515010

main93315-15010

9338115008

main93381-15008

9415080640

main94150-80640

41 parts on this diagram · 3 diagrams in section
