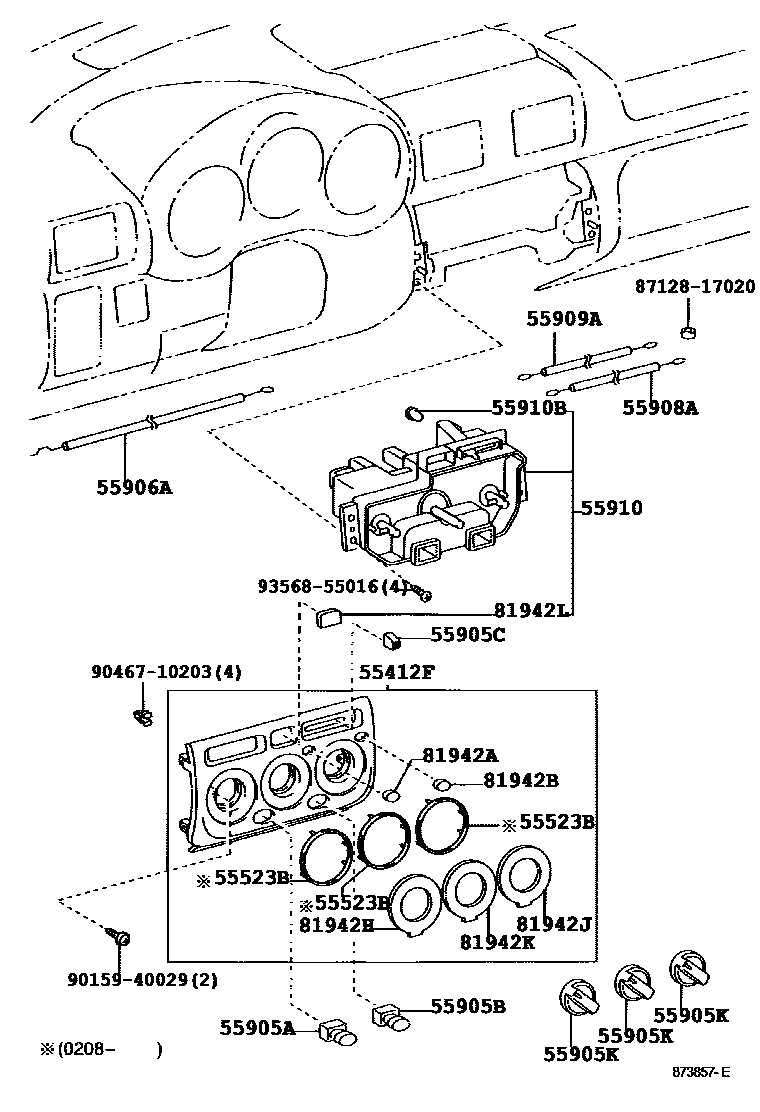

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
55412FPANEL, INSTRUMENT CLUSTER FINISH, CENTER
BLACK,TRIM1#,2#,3#,4#
55523BCOVER, HEATER CONTROL OPENING
55905AKNOB, HEATER CONTROL
55905BKNOB, HEATER CONTROL, NO.2
55905CKNOB, HEATER CONTROL, NO.3
55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55910BBULB, HEATER CONTROL
81942LSHEET, HEATER CONTROL NAME, NO.6
8712817020GROMMET, HEATER
main87128-17020
9015940029
main90159-40029
9046710203
main90467-10203
9356855016
main93568-55016
21 parts on this diagram · 2 diagrams in section
