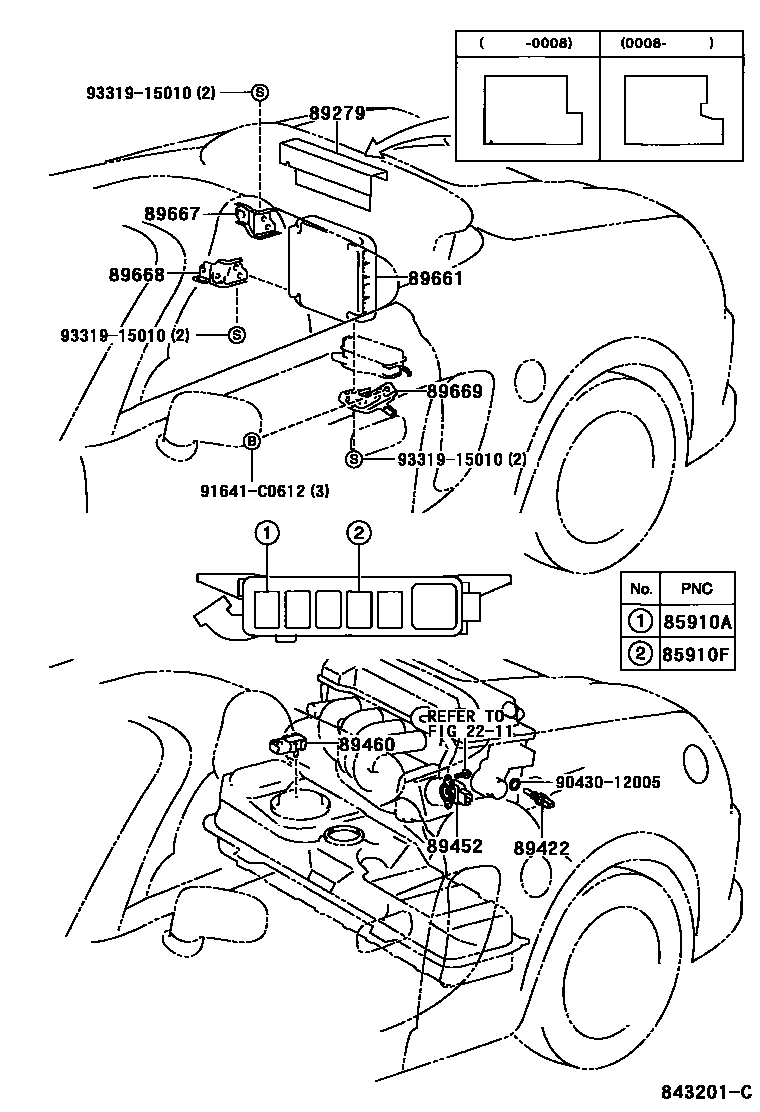

ELECTRONIC FUEL INJECTION SYSTEM

2211

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iZZW30199912-200208

main90987-02027iZZW30200208-200501

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iZZW30199912-200208

main90987-02027iZZW30200208-200501

89279COVER, ENGINE CONTROL COMPUTER

main89279-17030iZZW30199912-200008

main89279-17031iZZW30200008-200501

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iZZW30199912-200501

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iZZW30..5F199912-200501

main89452-30150iZZW30..6FS200008-200501

89460SENSOR ASSY, VAPOR PRESSURE

main89461-20010iZZW30199912-200008

sub89461-35010

main89461-35010iZZW30200008-200501

89661COMPUTER, ENGINE CONTROL

main89661-17600iZZW30199912-200008

sub89661-17721

main89661-17601iZZW30..5F200008-200010

sub89661-17602

main89661-17602iZZW30..5F200010-200105

sub89661-17721

main89661-17630iZZW30..5FS200008-200105

main89661-17660iZZW30..5F200105-200208

sub89661-17721

main89661-17670iZZW30..5FS200105-200208

sub89661-17671

main89661-17690iZZW30..6FS200208-200302

sub89661-17691

main89661-17691iZZW30..6FS200302-200305

sub89661-17692

main89661-17692iZZW30..6FS200305-200408

main89661-17720iZZW30..5F200208-200302

sub89661-17721

main89661-17721iZZW30..5F200302-200305

sub89661-17722

main89661-17722iZZW30..5F200305-200408

main89661-17750iZZW30..5F200408-200501

main89661-17760iZZW30..6FS200408-200501

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-17050iZZW30199912-200501

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-17080iZZW30199912-200501

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-17070iZZW30199912-200501

9043012005

main90430-12005

91641C0612

main91641-C0612

9331915010

main93319-15010

14 parts on this diagram · 1 diagram in section
