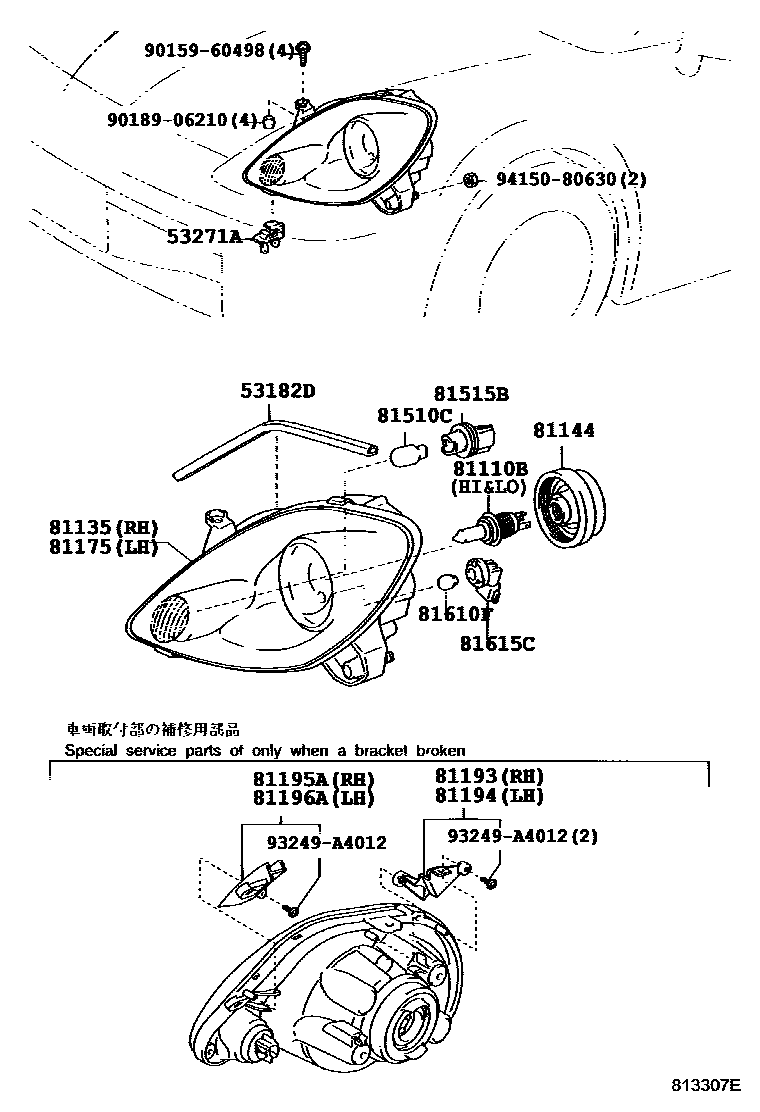

HEADLAMP

0001 1 0002 1

53182DSEAL, HEADLAMP COVER, NO.1

main53182-17030iZZW30199912-200501

53271ABRACKET, HEADLAMP MOUNTING

main53271-12060iZZW30199912-200501

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041iZZW30200208-200501

12V 65W

sub90981-13046

main90981-13058iZZW30199912-200208

12V 60/55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-17170iZZW30199912-200208

81144COVER, HEADLAMP, NO.1

main90075-65002iZZW30199912-200501

81175UNIT ASSY, HEADLAMP, LH

main81170-17170iZZW30199912-200208

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-17010iZZW30199912-200208

main81193-17020iZZW30200208-200501

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-17010iZZW30199912-200208

main81194-17020iZZW30200208-200501

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-17010iZZW30199912-200501

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-17010iZZW30199912-200501

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13043iZZW30199912-200501

12V 21W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-99080iZZW30199912-200501

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iZZW30199912-200501

12V 5W

81615CSOCKET & WIRE, CLEARANCE LAMP

main90075-60005iZZW30199912-200208

9015960498

main90159-60498

9018906210

main90189-06210

93249A4012

main93249-A4012

9415080630

main94150-80630

18 parts on this diagram · 2 diagrams in section
