FRONT DOOR PANEL & GLASS

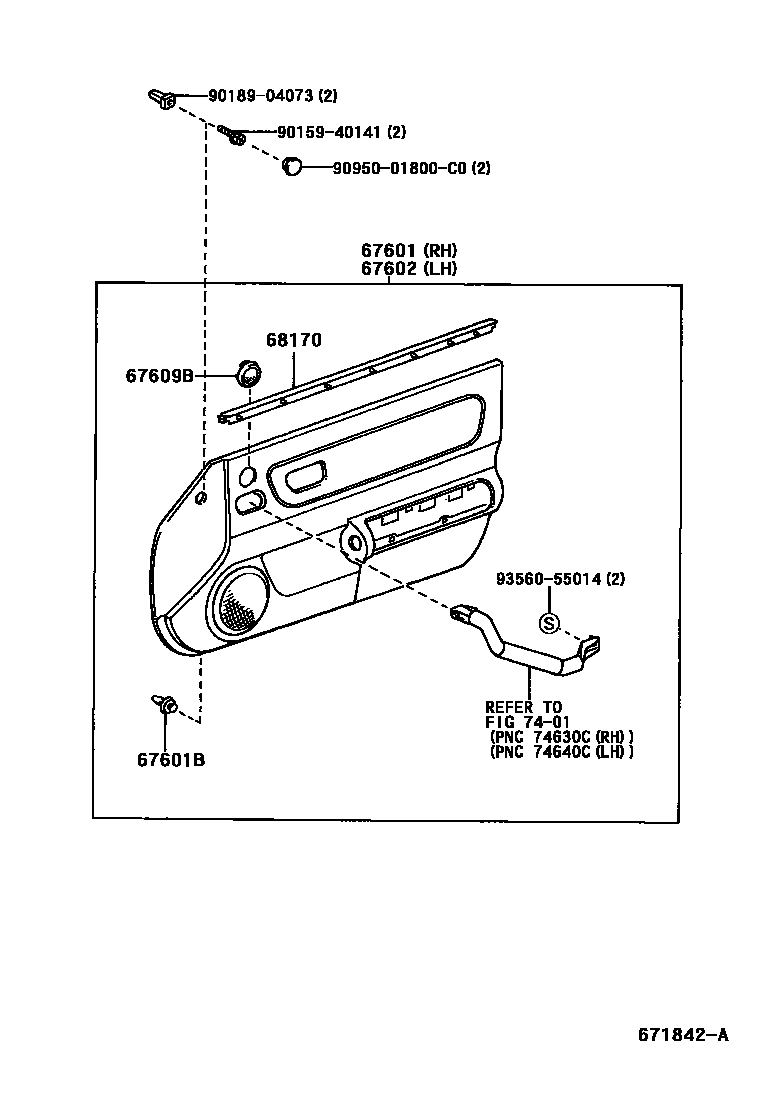

Parts diagram
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-17500-C0i199912-200008
W(TWEETER SPEAKER),BLACK,TRIM2#
main67610-17500-C0i200008-200208
W(TWEETER SPEAKER),BLACK,TRIM2#,4#
main67610-17500-D0i199912-200208
W(TWEETER SPEAKER),RED,TRIM3#
main67610-17500-F0i199912-200208
W(TWEETER SPEAKER),YELLOW,TRIM5#
main67610-17540-E0i200008-200208
TAN,TRIM4#
main67610-17620-B0i200208-200309
MD.GRAY,TRIM1#
sub67610-17621
main67610-17620-C0i200208-200309
BLACK,TRIM2#
sub67610-17621
main67610-17620-D0i200208-200309
RED,TRIM3#
sub67610-17621
main67610-17621-B0i200309-200402
MD.GRAY,TRIM1#
sub67610-17622
main67610-17621-C0i200309-200402
BLACK,TRIM2#
sub67610-17622
main67610-17621-D0i200309-200402
RED,TRIM3#
sub67610-17622
main67610-17622-B0i200402-200501
MD.GRAY,TRIM1#
main67610-17622-C0i200402-200501
BLACK,TRIM2#
main67610-17622-D0i200402-200501
RED,TRIM3#
main67610-17630-C0i200208-200309
W(LEATHER TRIM),BLACK,TRIM2#
sub67610-17631
main67610-17630-E0i200208-200309
W(LEATHER TRIM),TAN,TRIM4#
sub67610-17631
main67610-17631-C0i200309-200402
W(LEATHER TRIM),BLACK,TRIM2#
sub67610-17632
main67610-17631-E0i200309-200402
W(LEATHER TRIM),TAN,TRIM4#
sub67610-17632
main67610-17632-B1i200402-200501
GRAY,TRIM1#
main67610-17632-C0i200402-200501
W(LEATHER TRIM),BLACK,TRIM2#
main67610-17632-D0i200402-200501
W(LEATHER TRIM),RED,TRIM3#
main67610-17632-E0i200402-200501
W(LEATHER TRIM),TAN,TRIM4#
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
main90467-10161i199912-200501
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67620-17460-C0i199912-200008
W(TWEETER SPEAKER),BLACK,TRIM2#
main67620-17460-C0i200008-200208
W(TWEETER SPEAKER),BLACK,TRIM2#,4#
main67620-17460-D0i199912-200208
W(TWEETER SPEAKER),RED,TRIM3#
main67620-17460-F0i199912-200208
W(TWEETER SPEAKER),YELLOW,TRIM5#
main67620-17500-E0i200008-200208
TAN,TRIM4#
main67620-17580-B0i200208-200309
MD.GRAY,TRIM1#
sub67620-17581
main67620-17580-C0i200208-200309
BLACK,TRIM2#
sub67620-17581
main67620-17580-D0i200208-200309
RED,TRIM3#
sub67620-17581
main67620-17581-B0i200309-200402
MD.GRAY,TRIM1#
sub67620-17582
main67620-17581-C0i200309-200402
BLACK,TRIM2#
sub67620-17582
main67620-17581-D0i200309-200402
RED,TRIM3#
sub67620-17582
main67620-17582-B0i200402-200501
MD.GRAY,TRIM1#
main67620-17582-C0i200402-200501
BLACK,TRIM2#
main67620-17582-D0i200402-200501
RED,TRIM3#
main67620-17590-C0i200208-200309
W(LEATHER TRIM),BLACK,TRIM2#
sub67620-17591
main67620-17590-E0i200208-200309
W(LEATHER TRIM),TAN,TRIM4#
sub67620-17591
main67620-17591-C0i200309-200402
W(LEATHER TRIM),BLACK,TRIM2#
sub67620-17592
main67620-17591-E0i200309-200402
W(LEATHER TRIM),TAN,TRIM4#
sub67620-17592
main67620-17592-B1i200402-200501
GRAY,TRIM1#
main67620-17592-C0i200402-200501
W(LEATHER TRIM),BLACK,TRIM2#
main67620-17592-D0i200402-200501
W(LEATHER TRIM),RED,TRIM3#
main67620-17592-E0i200402-200501
W(LEATHER TRIM),TAN,TRIM4#
67609BGRILLE SUB-ASSY, FRONT DOOR SPEAKER
main67609-17010-C0i199912-200008
BLACK,TRIM2#,3#,5#,RH
main67609-17010-C0i200008-200208
BLACK,TRIM2#,3#,4#,5#,RH
main67609-17020-C0i200208-200501
BLACK,TRIM1#,2#,3#,4#,RH
main67709-17010-C0i200008-200208
BLACK,TRIM2#,3#,4#,5#,LH
main67709-17010-C0i199912-200008
BLACK,TRIM2#,3#,5#,LH
main67709-17020-C0i200208-200501
BLACK,TRIM1#,2#,3#,4#,LH
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
main68171-17010i199912-200309
RH
sub68171-17011
main68171-17011i200309-200501
RH
main68172-17010i199912-200309
LH
sub68172-17011
main68172-17011i200309-200501
LH
7401
9015940141
main90159-40141
9018904073
main90189-04073
9095001800C0
main90950-01800C0
9356055014
main93560-55014

10 parts on this diagram · 2 diagrams in section
