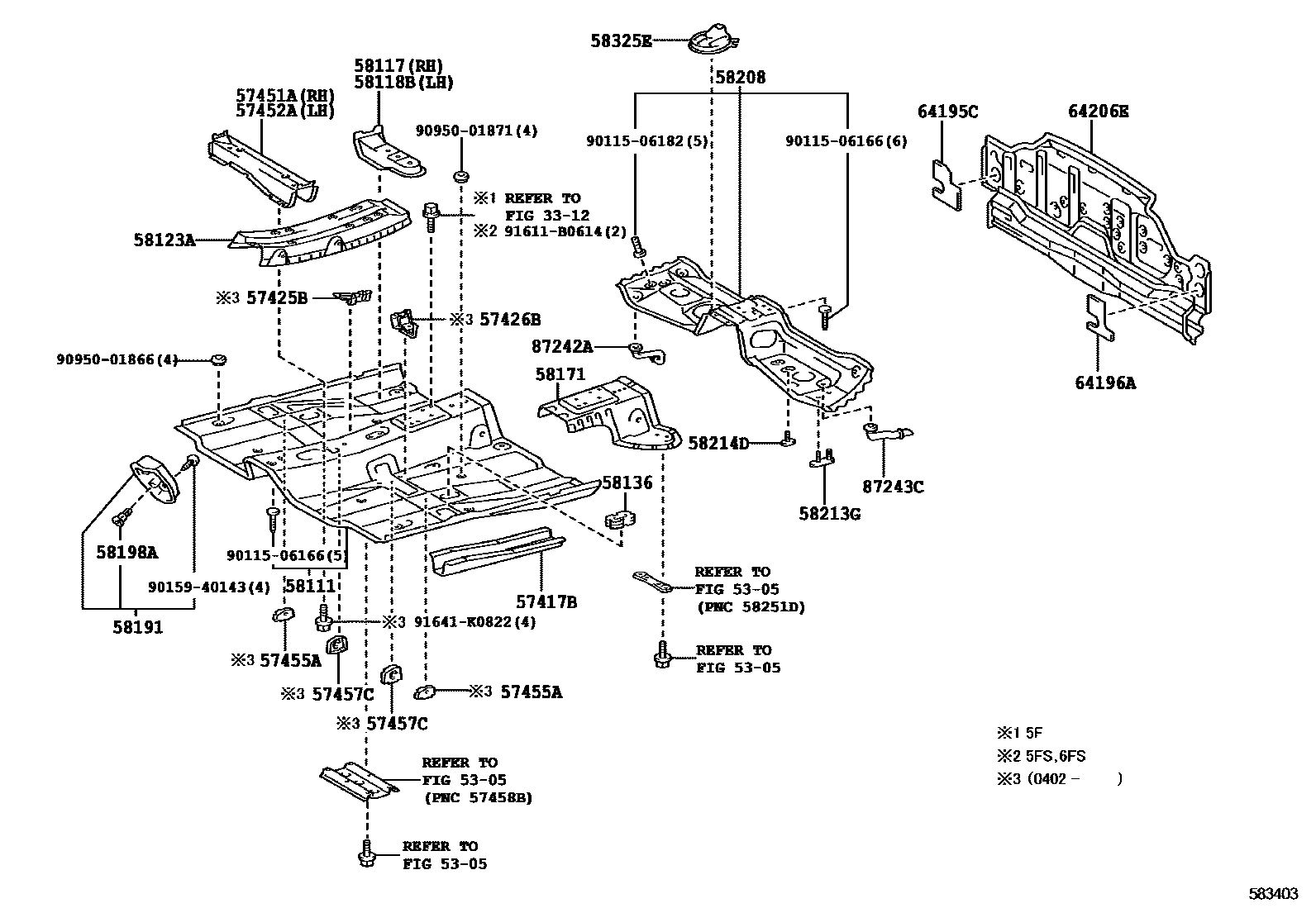

FLOOR PAN & LOWER BACK PANEL
3312
5305
57417BREINFORCEMENT, FRONT FLOOR UNDER
57425BREINFORCEMENT, FRONT FLOOR, NO.2 RH
57426BREINFORCEMENT, FRONT FLOOR, NO.2 LH
57455ABRACKET, FRONT FLOOR CROSSMEMBER
57457CBRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT RH
58117REINFORCEMENT, FRONT FLOOR SIDE, NO.1
58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2
58136COVER, FRONT FLOOR HOLE
58191FOOTREST, FRONT FLOOR
58198ACLIP, FOOTREST, NO.1
58208PAN, CENTER FLOOR
58213GREINFORCEMENT, CENTER FLOOR PANEL, NO.1 RH
58214DREINFORCEMENT, CENTER FLOOR PANEL, NO.1 LH
58325ECOVER, REAR FLOOR SERVICE HOLE
64195CINSULATOR, ROOM PARTITION PANEL, RH
64196AINSULATOR, ROOM PARTITION PANEL, LH
87242AHOSE, WATER, NO.3
87243CHOSE, WATER, NO.4
9011506166
main90115-06166
9011506182
main90115-06182
9015940143
main90159-40143
9095001866
main90950-01866
9095001871
main90950-01871
91611B0614
main91611-B0614
91641K0822
main91641-K0822
33 parts on this diagram · 1 diagram in section
