FLOOR SIDE MEMBER

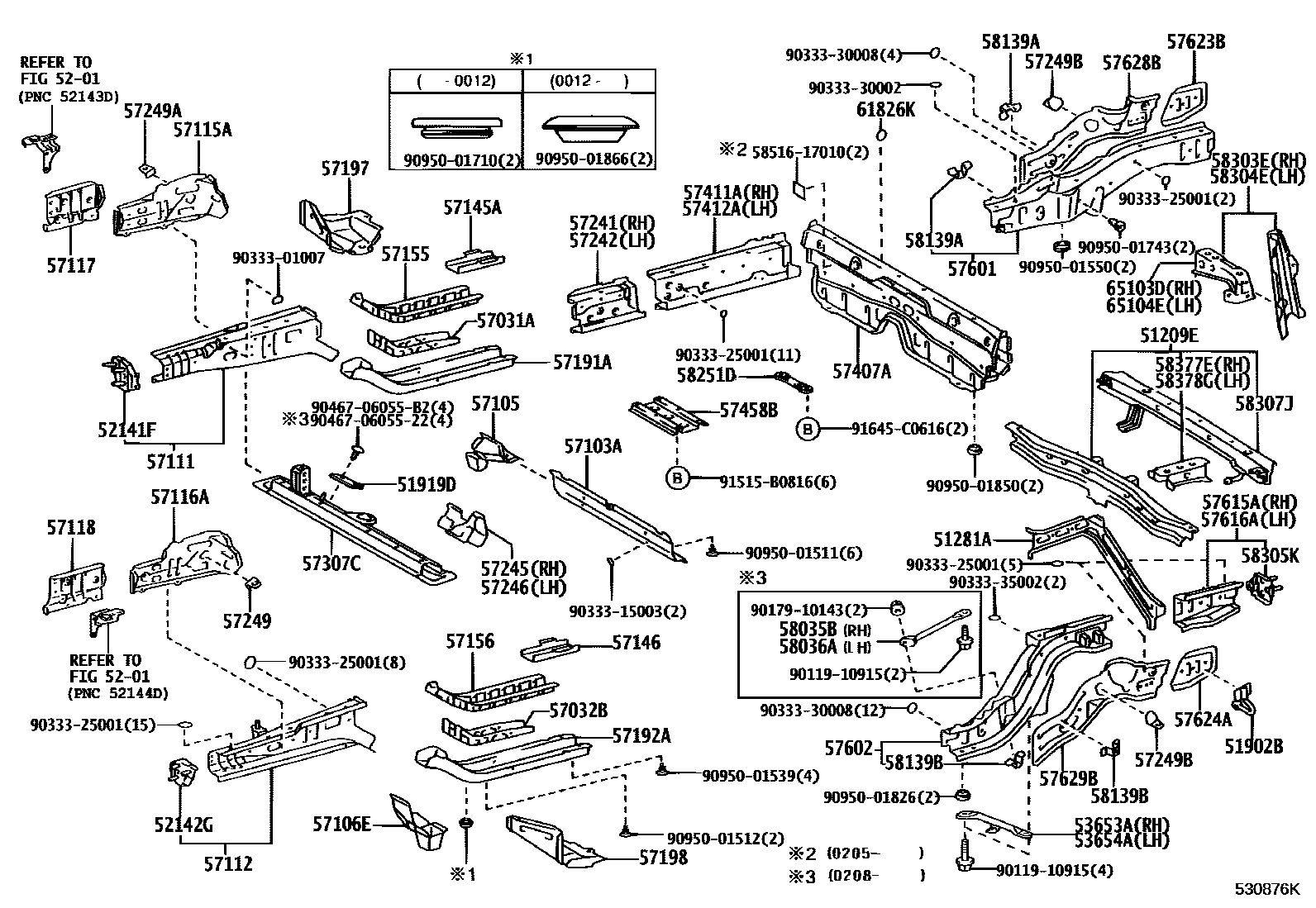

Parts diagram
51209ECROSSMEMBER, FRAME, REAR UPPER
main51209-17900i199912-200402
sub51291-17900
main51291-17900i200402
51281AMEMBER, REAR DIAGONAL
main51281-17900i200402
main51281-17901i199912-200402
sub51281-17900
51902BHANGER SUB-ASSY, EXHAUST PIPE, NO.2
main51902-17010i199912-200501
51919DPLATE, SPARE WHEEL MOUNTING
main51919-17010i199912-200501
5201
52141FARM, FRONT BUMPER, RH
main52141-17020i199912-200501
52142GARM, FRONT BUMPER, LH
main52142-17020i199912-200501
53653ABRACE, REAR SUSPENSION, LOWER RH
main53653-17010i199912-200501
53654ABRACE, REAR SUSPENSION, LOWER LH
main53654-17020i199912-200501
57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
main57031-17010i199912-200402
main57031-17020i200402-200501
57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
main57032-17010i199912-200402
main57032-17020i200402-200501
57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3
main57103-17030i199912-200312
sub57103-17031
sub57105-17071
sub57106-17071
main57103-17031i200312-200501
57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH
main57105-17070i199912-200402
sub57105-17071
sub57103-17031
main57105-17071i200402-200501
57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH
main57106-17070i199912-200402
sub57106-17071
sub57103-17031
main57106-17071i200402-200501
57111MEMBER, FRONT SIDE, RH
main57027-17901i199912-200501
57112MEMBER, FRONT SIDE, LH
main57028-17901i199912-200501
57115APLATE, FRONT SIDE MEMBER, OUTER RH
main57115-52010i199912-200501
57116APLATE, FRONT SIDE MEMBER, OUTER LH
main57116-17060i199912-200501
57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH
main57117-17900i199912-200501
57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH
main57118-17900i199912-200501
57145AREINFORCEMENT, FRONT SIDE MEMBER, REAR RH
main57145-17030i200001-200402
57146PLATE, FRONT SIDE MEMBER, CENTER LH
main57145-17030i200001-200402
57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH
main57053-17010i200402-200501
main57155-17030i199912-200402
57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH
main57054-17010i200402-200501
main57156-17030i199912-200402
57191AMEMBER, FRONT SIDE, INNER REAR RH
main57191-17050i199912-200501
57192AMEMBER, FRONT SIDE, INNER REAR LH
main57192-17050i199912-200501
57197BOX, TORQUE, FRONT RH
main57197-17020i199912-200501
57198BOX, TORQUE, FRONT LH
main57198-17020i199912-200501
57241REINFORCEMENT, FRONT SIDE MEMBER, NO.5 RH
main57241-17010i199912-200501
57242REINFORCEMENT, FRONT SIDE MEMBER, NO.5 LH
main57242-17010i199912-200501
57245REINFORCEMENT, FRONT SIDE MEMBER, NO.9 RH
main57033-17020i199912-200501
57246REINFORCEMENT, FRONT SIDE MEMBER, NO.9 LH
main57034-17020i199912-200501
57249BRACKET, FLEXIBLE HOSE, NO.1
main57249-10040i199912-200501
57249ABRACKET, FREXIBLE HOUSE, NO.1, LH
main57249-10040i199912-200501
57249BBRACKET, FLEXIBLE HOSE, NO.1
main57249-33010i199912-200501
57307CPANEL SUB-ASSY, FRONT LUGGAGE END
main57307-17120i199912-200501
57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS
main57407-17010i200008-200402
sub57407-17011
main57407-17011i200402-200501
main57407-17020i199912-200402
sub57407-17021
main57407-17021i200402-200501
57411AMEMBER, FLOOR SIDE, INNER RH
main57401-17010i199912-200402
sub57401-17020
main57401-17020i200402-200501
57412AMEMBER, FLOOR SIDE, INNER LH
main57402-17010i199912-200402
sub57402-17020
main57402-17020i200402-200501
57458BPATCH, FLOOR SIDE MEMBER, REAR LH
main57458-17030i199912-200501
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
main57601-17080i199912-200311
sub57601-17081
main57601-17081i200311-200501
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
main57602-17100i199912-200204
sub57602-17101
main57602-17101i200204-200311
sub57602-17102
main57602-17102i200311-200501
57615AMEMBER, REAR FLOOR SIDE, REAR RH
main57615-17901i199912-200402
main57615-17903i200402-200501
57616AMEMBER, REAR FLOOR SIDE, REAR LH
main57616-17900i199912-200402
main57616-17903i200402-200501
57623BPLATE. REAR FLOOR SIDE MEMBER, REAR RH
main57623-17020i199912-200401
sub57623-17021
main57623-17021i200401-200501
57624APLATE. REAR FLOOR SIDE MEMBER, REAR LH
main57624-17020i199912-200401
sub57624-17021
main57624-17021i200401-200501
57628BPLATE, REAR FLOOR SIDE MEMBER, RH
main57628-17050i199912-200501
57629BPLATE, REAR FLOOR SIDE MEMBER, LH
main57629-17050i199912-200501
58035BBRACE SUB-ASSY, REAR FLOOR PANEL, RH
main58035-17010i200208-200501
58036ABRACE SUB-ASSY, REAR FLOOR PANEL, LH
main58036-17010i200208-200501
58139APLATE, FRONT FLOOR SIDE, REAR RH
main58139-17010i199912-200501
58139BBRACKET, FENDER LINER, LH
main58139-17010i199912-200501
58251DBRACE, FLOOR PANEL, FRONT
main58251-52010i199912-200501
58303EREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, RH
main58303-17090i199912-200501
58304EREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH
main58304-17030i199912-200501
58305KBRACKET SUB-ASSY, REAR BUMPER ARM
main58305-17011i199912-200501
58307JPANEL SUB-ASSY, BODY LOWER BACK
main58307-17080i199912-200501
58377EPANEL, BODY LOWER BACK, RH
main58377-17030i199912-200501
58378GPANEL, BODY LOWER BACK, LH
main58378-17040i199912-200501
61826KPLATE, NOISE CONTROL
main61825-46010i199912-200501
65103DBRACKET SUB-ASSY, MOUNTING, RH
main65103-17010i199912-200501
65104EBRACKET SUB-ASSY, MOUNTING, LH
main65104-17010i199912-200501
5851617010MAT, FLOOR, REAR END
main58516-17010
9011910915
main90119-10915
9017910143
main90179-10143
9033301007
main90333-01007
9033315003
main90333-15003
9033325001
main90333-25001
9033330002
main90333-30002
9033330008
main90333-30008
9033335002
main90333-35002
904670605522
main90467-0605522
9046706055B2
main90467-06055B2
9095001511
main90950-01511
9095001512
main90950-01512
9095001539
main90950-01539
9095001550
main90950-01550
9095001710
main90950-01710
9095001743
main90950-01743
9095001826
main90950-01826
9095001850
main90950-01850
9095001866
main90950-01866
91515B0816
main91515-B0816
91645C0616
main91645-C0616

84 parts on this diagram · 2 diagrams in section
