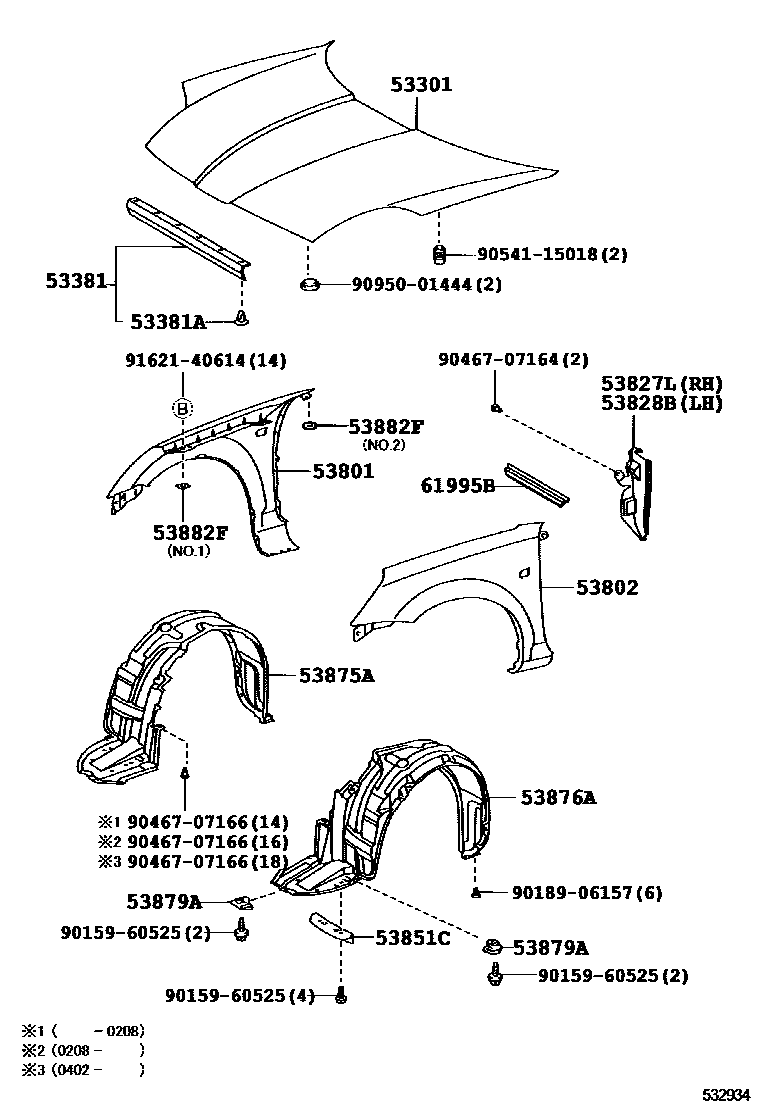

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-17040iZZW30199912-200208

sub53301-17070

main53301-17070iZZW30200208-200501

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-17020iZZW30199912-200402

sub53381-17030

main53381-17030iZZW30200403-200501

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iZZW30199912-200501

53801FENDER SUB-ASSY, FRONT RH

main53801-17120iZZW30200208-200501

main53811-17130iZZW30199912-200208

sub53801-17120

53802FENDER SUB-ASSY, FRONT LH

main53802-17100iZZW30200208-200501

main53812-17110iZZW30199912-200208

sub53802-17100

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-17030iZZW30199912-200501

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-17030iZZW30199912-200501

53851CPAD, FRONT WHEEL OPENING EXTENSION, NO.1

main53851-47010iZZW30199912-200501

53875ALINER, FRONT FENDER, RH

main53805-17020iZZW30199912-200208

main53805-17030iZZW30200208-200402

main53805-17031iZZW30200402-200501

53876ALINER, FRONT FENDER, LH

main53806-17020iZZW30199912-200208

main53806-17030iZZW30200208-200402

main53806-17031iZZW30200402-200501

53879ARETAINER, FRONT FENDER LINER

main53879-16010iZZW30199912-200208

53882FSEAL, FRONT FENDER

main53882-16030iZZW30199912-200501

NO.1

main61667-12100iZZW30199912-200501

NO.2

61995BDAM, FRONT BODY PILLAR, OUTER

main61995-17010iZZW30199912-200501

9015960525

main90159-60525

9018906157

main90189-06157

9046707164

main90467-07164

9046707166

main90467-07166

9054115018

main90541-15018

9095001444

main90950-01444

9162140614

main91621-40614

20 parts on this diagram · 1 diagram in section
