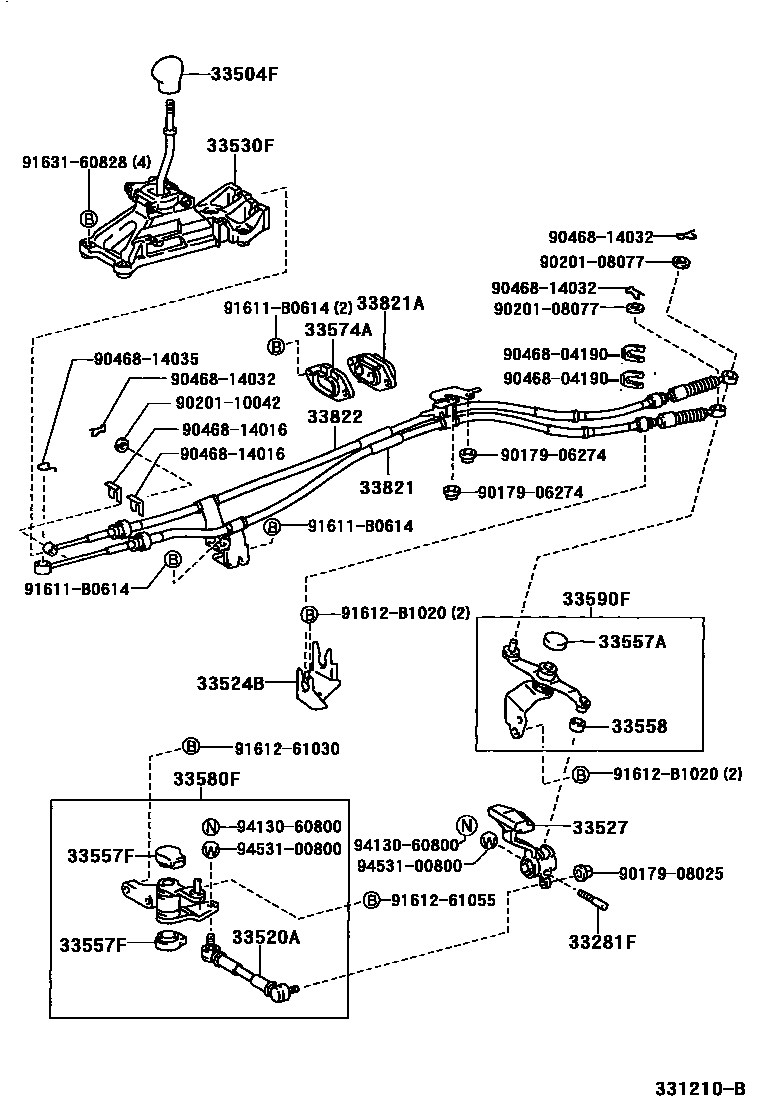

SHIFT LEVER & RETAINER

0001 1 0002 1

33281FPIN, LEVER LOCK (FOR FLOOR SHIFT)

main33281-16020iZZW30..5F199912-200501

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14120-C1iZZW30..5F200008-200208

BLACK,TRIM2#,3#,4#,5#

sub33504-14120

main33504-14120-C1iZZW30..5F200208-200501

BLACK,TRIM1#,2#,3#,4#

sub33504-14120

main33504-14120-C1iZZW30199912-200008

BLACK,TRIM2#,3#,5#

sub33504-14120

main33504-53020iZZW30..5FS200008-200501

33520ASHAFT ASSY, FLOOR SHIFT CONTROL

main33520-17010iZZW30..5F199912-200501

33524BBRACKET, CONTROL CABLE

main33524-17010iZZW30..5F199912-200501

33527LEVER, CONTROL SHIFT (FOR FLOOR SHIFT)

main33527-17110iZZW30..5F199912-200501

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-17100iZZW30..5F199912-200501

main33530-17110iZZW30..5FS200008-200208

sub33530-17140

main33530-17140iZZW30..6FS200208-200501

33557ACOVER, SELECTING BELLCRANK DUST, NO.1

main33557-20010iZZW30..5F199912-200501

33557FCOVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)

main33557-17020iZZW30..5F199912-200501

33558COVER, SELECTING BELLCRANK DUST, NO.2

main33557-17010iZZW30..5F199912-200501

33574ARETAINER, SHIFT CABLE GROMMET, NO.1

main33574-17030iZZW30..5F199912-200501

33580FBELLCRANK ASSY, SHIFTING (FOR FLOOR SHIFT)

main33580-17010iZZW30..5F199912-200303

sub33580-17011

main33580-17011iZZW30..5F200303-200501

33590FCRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT)

main33590-17060iZZW30..5F199912-200303

sub33590-17061

main33590-17061iZZW30..5F200303-200501

33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)

main33821-17100iZZW30..5F199912-200208

sub33821-17110

main33821-17110iZZW30..5F200208-200501

33821AGROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE)

main33577-17010iZZW30..5F199912-200208

sub33577-17020

main33577-17020iZZW30..5F200208-200501

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33822-17070iZZW30..5F199912-200208

sub33822-17080

main33822-17080iZZW30..5F200208-200501

9017906274

main90179-06274

9017908025

main90179-08025

9020108077

main90201-08077

9020110042

main90201-10042

9046804190

main90468-04190

9046814016

main90468-14016

9046814032

main90468-14032

9046814035

main90468-14035

91611B0614

main91611-B0614

9161261030

main91612-61030

9161261055

main91612-61055

91612B1020

main91612-B1020

9163160828

main91631-60828

9413060800

main94130-60800

9453100800

main94531-00800

30 parts on this diagram · 2 diagrams in section
