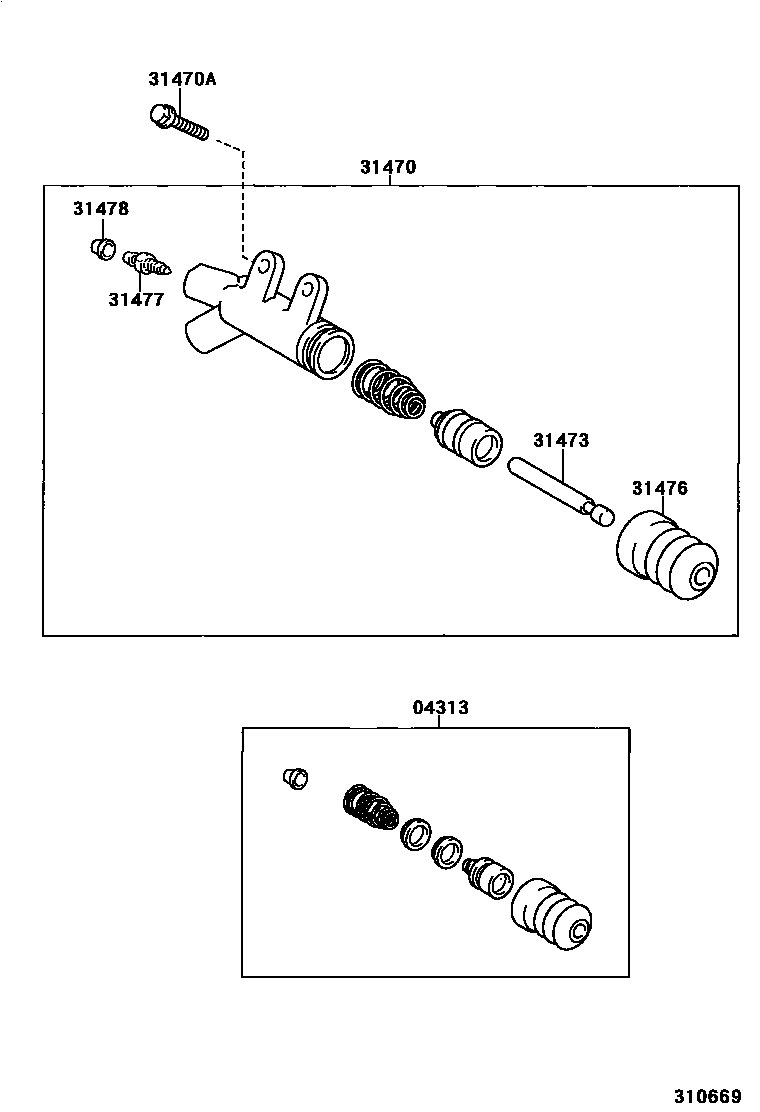

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iZZW30199912-200004

main04313-17040iZZW30..5F200004-200501

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-17051iZZW30..5F200004-200501

main31470-20230iZZW30199912-200004

sub31470-20231

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iZZW30..5F199912-200501

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22030iZZW30..5F200004-200501

main31473-32010iZZW30199912-200004

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iZZW30..5F199912-200501

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iZZW30..5F199912-200501

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-01030iZZW30..5F199912-200501

(L)

main31478-30010iZZW30..5F199912-200501

(J)

7 parts on this diagram · 1 diagram in section
