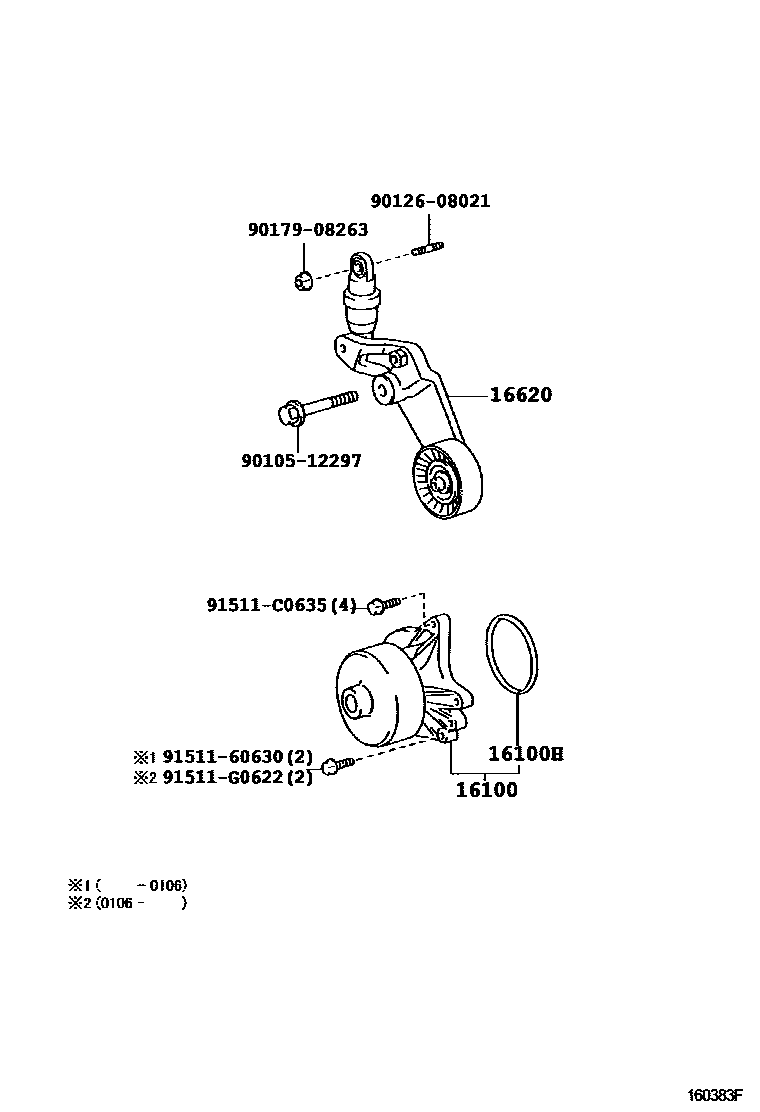

WATER PUMP

16100PUMP ASSY, ENGINE WATER

main16100-29095i1ZZFE..ZZW30199912-200107

sub16100-29175

sub91511-60622

main16100-29175i1ZZFE..ZZW30200107-200501

sub16100-29415

16100HRING, O(FOR WATER PUMP)

main90301-69006i1ZZFE..ZZW30199912-200501

16620TENSIONER ASSY, V-RIBBED BELT

main16620-22010i1ZZFE..ZZW30199912-200106

sub16620-22011

main16620-22011i1ZZFE..ZZW30200106-200412

sub16620-22012

main16620-22012i1ZZFE..ZZW30200412-200501

sub16620-22013

9010512297

main90105-12297

9012608021

main90126-08021

9017908263

main90179-08263

9151160630

main91511-60630

91511C0635

main91511-C0635

91511G0622

main91511-G0622

9 parts on this diagram · 1 diagram in section
