CYLINDER HEAD

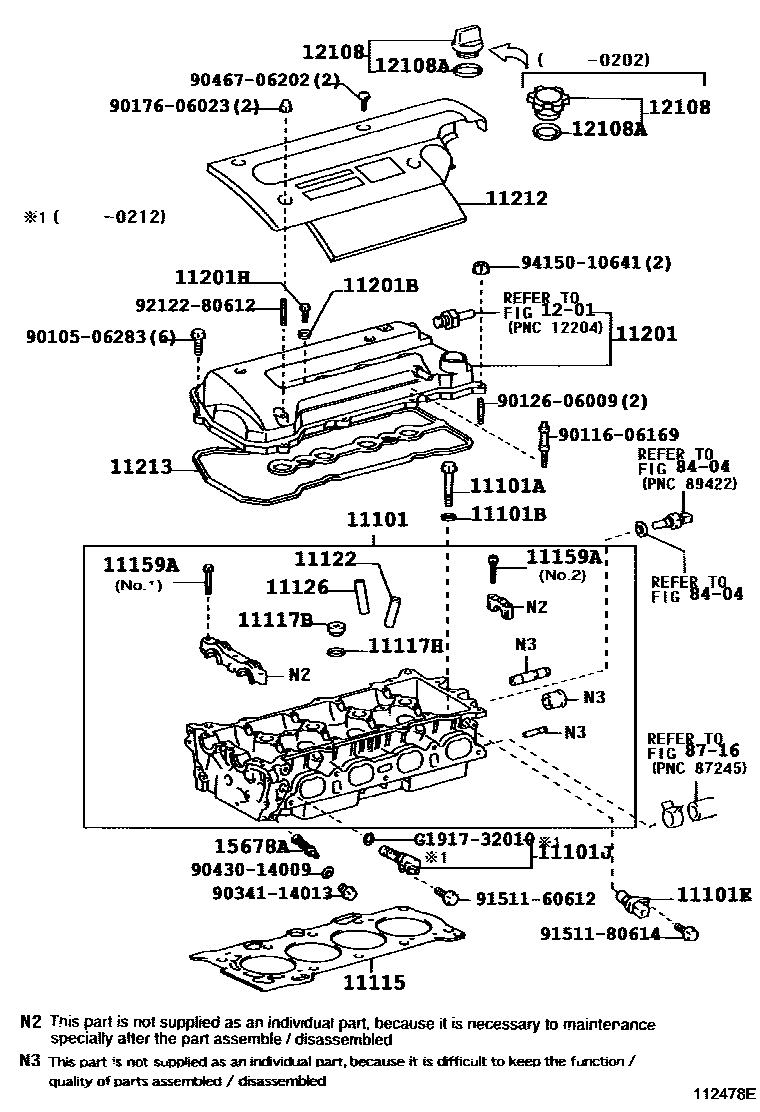

Parts diagram
11101HEAD SUB-ASSY, CYLINDER
main11101-22051i199912-200206
sub11101-22052
main11101-22052i200206-200501
11101ABOLT(FOR CYLINDER HEAD SET)
main90910-02134i199912-200208
sub90910-02152
main90910-02152i200208-200501
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
main90201-10344i199912-200501
11101ESENSOR, CAM POSITION
main90919-05026i199912-200501
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
main15330-22010i199912-200103
sub15330-22030
main15330-22030i200103-200501
sub15330-22050
11115GASKET, CYLINDER HEAD
main11115-22040i199912-200207
sub11115-22041
main11115-22041i200207-200302
sub11115-22050
main11115-22050i200302-200501
11117BPLUG, W/HEAD TAPER SCREW, NO.2
main90341-20002i199912-200501
11117HGASKET(FOR WATER HOLE)
main90430-20004i199912-200501
11122BUSH, INTAKE VALVE GUIDE
main11122-20020i200110-200501
STD
sub11122-22040
main11122-22030i199912-200110
STD
main11123-20020i200110-200501
O/S 0.05
main11123-22030i199912-200110
O/S 0.05
sub11123-20020
11126BUSH, EXHAUST VALVE GUIDE
main11122-20020i200110-200501
STD
sub11122-22040
main11122-22030i199912-200110
STD
main11123-20020i200110-200501
O/S 0.05
main11123-22030i199912-200110
O/S 0.05
sub11123-20020
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
main90109-06080i199912-200501
NO.2
main90119-08A29i199912-200501
NO.1
11201COVER SUB-ASSY, CYLINDER HEAD
main11201-22060i199912-200501
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
main90210-06013i199912-200501
11201HBOLT(FOR CYLINDER HEAD COVER)
main90105-06202i200202-200501
main90105-06281i199912-200202
sub90105-06202
11212COVER, CYLINDER HEAD, NO.2
main11212-22060i199912-200105
sub11212-22061
main11212-22061i200105-200501
11213GASKET, CYLINDER HEAD COVER
main11213-22050i199912-200501
1201
12108CAP SUB-ASSY, OIL FILLER
main12180-21021i200202-200501
main12180-22010i199912-200110
sub12180-22011
main12180-22011i200110-200202
12108AGASKET(FOR OIL FILLER CAP)
main90430-37140i199912-200501
15678AFILTER, OIL CONTROL VALVE
main15678-21010i199912-200501
8404
8716
9010506283
main90105-06283
9011606169
main90116-06169
9012606009
main90126-06009
9017606023
main90176-06023
9034114013
main90341-14013
9043014009
main90430-14009
9046706202
main90467-06202
9151160612
main91511-60612
9151180614
main91511-80614
9212280612
main92122-80612
9415010641
main94150-10641
G191732010
mainG1917-32010

34 parts on this diagram · 1 diagram in section
