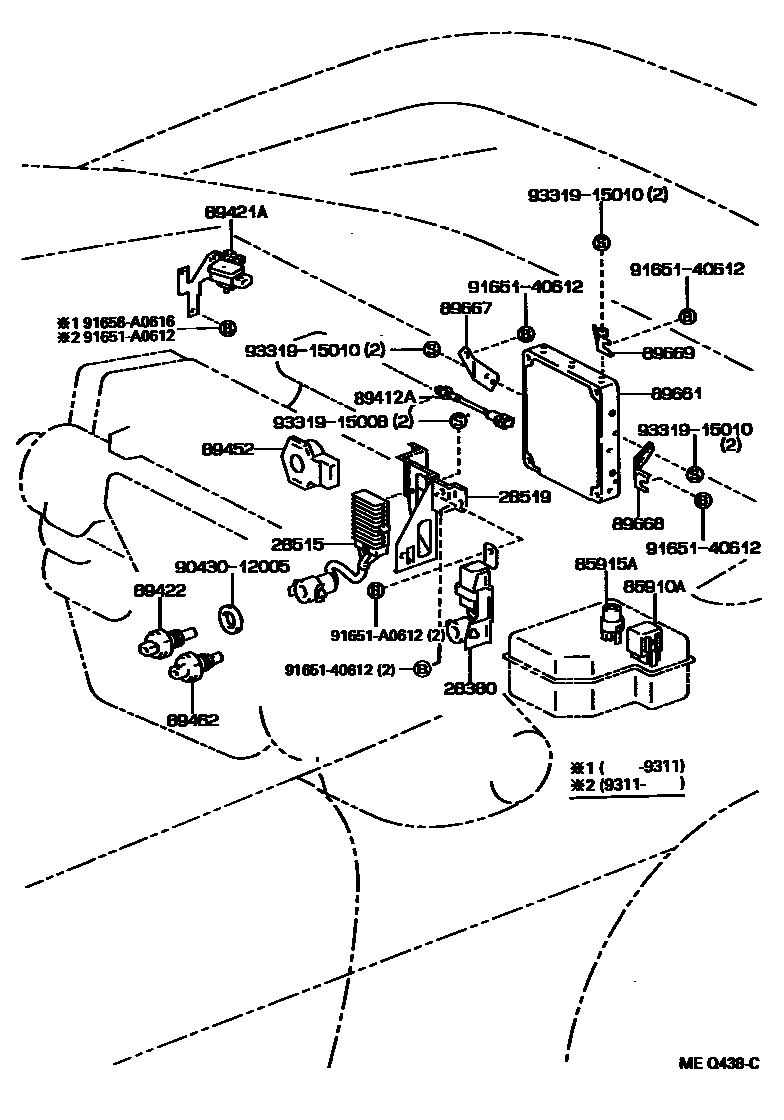

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

28380RELAY ASSY, FUEL PUMP

main28380-74040i3SGTE..SW20199001-199201

main28380-74050i3SGTE..SW20199201-199506

28515RESISTOR, SOLENOID

main28515-74080i3SGTE..SW20199001-199201

main28515-74100i3SGTE..SW20199201-199506

28519BRACKET, SOLENOID RESISTOR

main28519-74060i3SGTE..SW20199001-199201

main28519-74080i3SGTE..SW20199201-199506

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iSW2#199001-199506

85915ARELAY, MAIN

main90987-02004iSW2#199001-199506

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-12010iSW2#..USA199001-199506

main89412-33040iSW21199311-199506

sub89412-33030

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-17040iSW21199001-199506

89421ASENSOR, TURBO PRESSURE

main89420-17030iSW20199001-199506

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iSW2#199001-199506

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12040iSW20199001-199506

main89452-22010iSW21..5F199001-199201

main89452-22090iSW21199201-199506

89462SWITCH, START INJECTOR TIME

main89462-20020iSW21199001-199201

main89462-20040iSW20199001-199506

89661COMPUTER, ENGINE CONTROL

main89661-17240iSW21..5F..USA199001-199009

CALIFORNIA SPEC

sub89661-17241

main89661-17241iSW21..5F..USA199009-199201

CALIFORNIA SPEC

main89661-17250iSW21..4FC199001-199009

CALIFORNIA SPEC

main89661-17251iSW21..4FC199009-199201

CALIFORNIA SPEC

main89661-17260iSW21..5F199001-199201

main89661-17270iSW21..4FC199001-199201

main89661-17330iSW20199001-199003

sub89661-17331

main89661-17331iSW20199003-199101

sub89661-17332

main89661-17332iSW20199101-199201

main89661-17390iSW20199201-199311

main89661-17400iSW21..4FC199201-199311

CALIFORNIA SPEC

main89661-17410iSW21..5F..USA199201-199311

CALIFORNIA SPEC

main89661-17420iSW21..4FC199201-199311

main89661-17430iSW21..5F199201-199311

main89661-17440iSW21..5F199311-199506

main89661-17450iSW21..4FC199311-199506

main89661-17470iSW20199311-199506

main89661-17510iSW21..5F199311-199506

CALIFORNIA SPEC

main89661-17520iSW21..4FC199311-199506

CALIFORNIA SPEC

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-17030iSW2#199001-199506

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-17050iSW2#199001-199201

main89668-17060iSW2#199201-199506

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-17060iSW2#199001-199506

9043012005

main90430-12005

9165140612

main91651-40612

91651A0612

main91651-A0612

91656A0616

main91656-A0616

9331915008

main93319-15008

9331915010

main93319-15010

21 parts on this diagram · 2 diagrams in section
