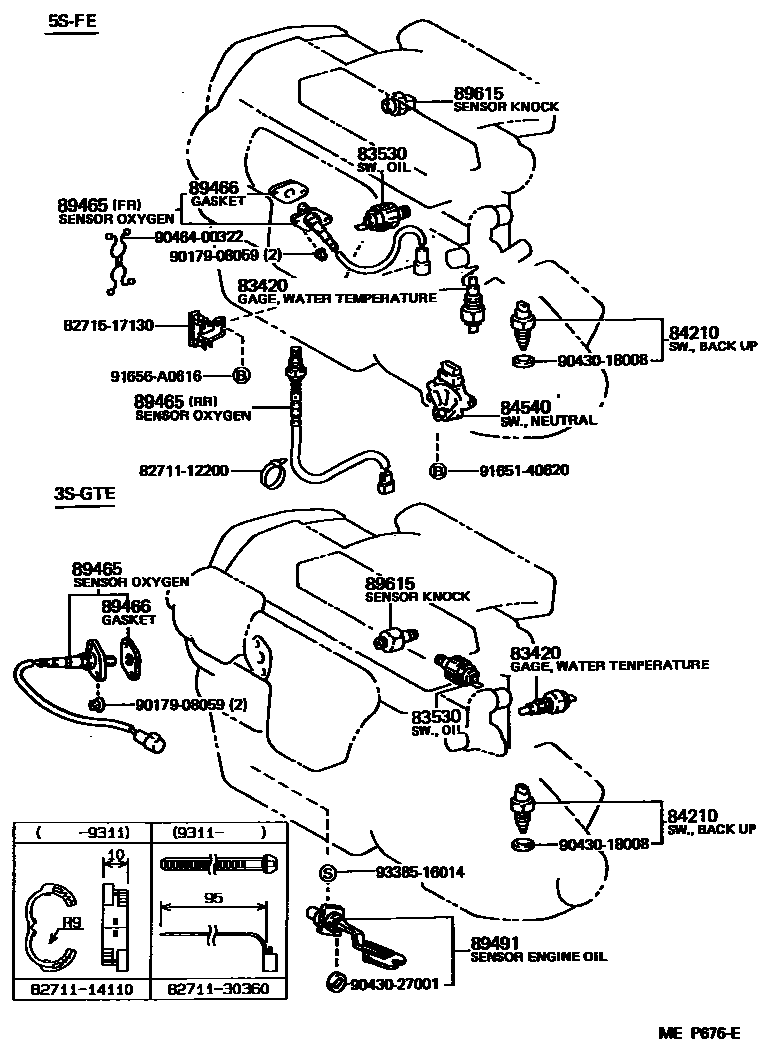

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iSW21199001-199506

main83420-16040iSW20199211-199506

NIPPONDENSO

main83420-16040iSW20199311-199506

YAZAKI

main83420-20020iSW20199001-199211

main83420-20030iSW20199211-199311

YAZAKI

sub83420-16040

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14060iSW2#199211-199311

sub83530-30090

main83530-30080iSW2#199001-199211

sub83530-60040

main83530-30090iSW2#199311-199506

NIPPONDENSO

sub83530-60020

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iSW2#..5F199001-199506

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-12170iSW21..4FC199001-199311

main84540-16040iSW21..4FC199311-199506

89465SENSOR, OXYGEN

main89465-17090iSW21..USA199001-199201

REAR

main89465-17120iSW21..USA199201-199506

REAR

main89465-19435iSW21199001-199201

FRONT

main89465-19525iSW21199201-199506

FRONT

main89465-29365iSW20199001-199506

89466GASKET, OXYGEN SENSOR

main89466-20020iSW21199001-199506

main89466-20030iSW20199001-199506

89491SENSOR, ENGINE OIL LEVEL

main89491-20050iSW20199001-199506

89615SENSOR, KNOCK CONTROL

main89615-20010iSW20199001-199108

main89615-20030iSW21199201-199506

TOYOTA

sub89615-32040

main89615-33020iSW21199201-199311

MATSUSHITA

sub89615-32030

main89615-33020iSW21199311-199506

NIPPONDENSO

sub89615-32030

main89615-50010iSW20199108-199506

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

8271130360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30360

8271517130BRACKET,WIRING HARNESS CLAMP

main82715-17130

9017908059

main90179-08059

9043018008

main90430-18008

9043027001

main90430-27001

9046400322

main90464-00322

9165140620

main91651-40620

91656A0616

main91656-A0616

9338516014

main93385-16014

19 parts on this diagram · 8 diagrams in section
