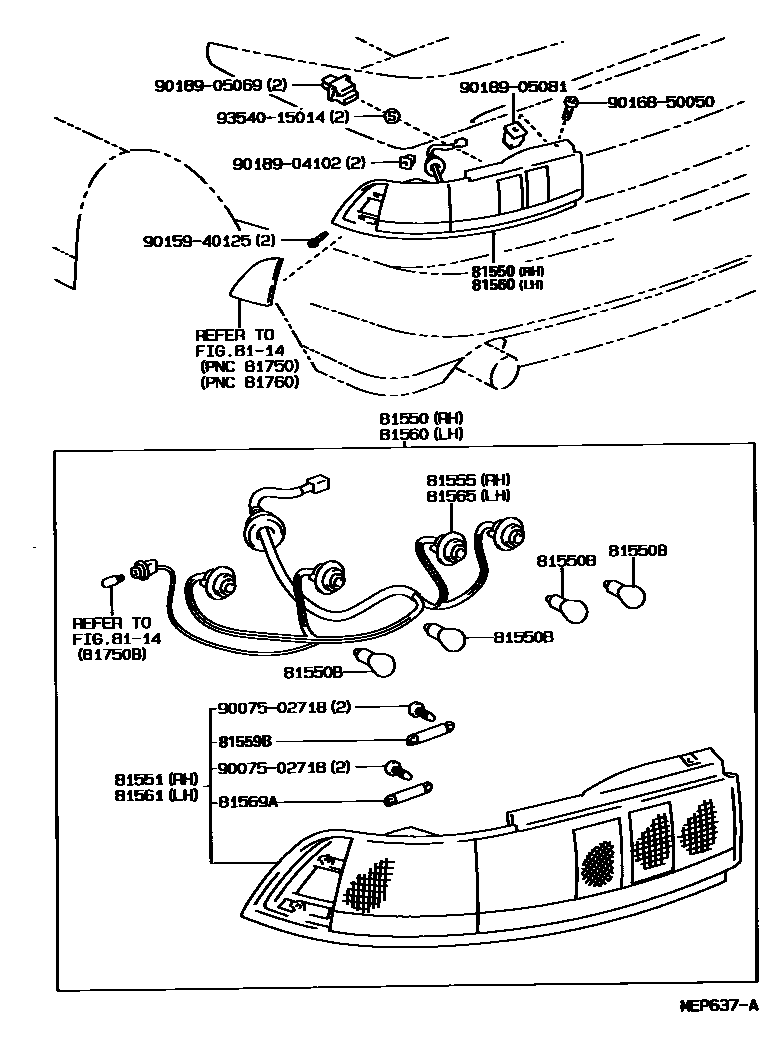

REAR COMBINATION LAMP

0001 1 0002 1

8114

81550LAMP ASSY, REAR COMBINATION, RH

main81550-17070iSW2#199001-199311

main81550-17110iSW2#199311-199506

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11020iSW2#199001-199201

12V 3.8W

main99132-11270iSW2#199001-199506

12V 27W

main99132-21270iSW2#199001-199506

12V 27/8W

81551LENS, REAR COMBINATION LAMP, RH

main81551-17060iSW2#199002-199311

main81551-17070iSW2#199001-199002

sub81551-17060

main81551-17100iSW2#199311-199506

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-17070iSW2#199001-199311

main81555-17110iSW2#199311-199506

81559BBRACKET, REAR COMBINATION LAMP, RH

main81559-17060iSW2#199001-199311

main90904-62001iSW2#199311-199506

81560LAMP ASSY, REAR COMBINATION, LH

main81560-17110iSW2#199001-199311

main81560-17150iSW2#199311-199506

81561LENS, REAR COMBINATION LAMP, LH

main81561-17100iSW2#199002-199311

main81561-17110iSW2#199001-199002

sub81561-17100

main81561-17140iSW2#199311-199506

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-17070iSW2#199001-199311

main81555-17110iSW2#199311-199506

81569ABRACKET, REAR COMBINATION LAMP, LH

main81559-17060iSW2#199001-199311

main90904-62001iSW2#199311-199506

9007502718

main90075-02718

9015940125

main90159-40125

9016850050

main90168-50050

9018904102

main90189-04102

9018905069

main90189-05069

9018905081

main90189-05081

9354015014

main93540-15014

17 parts on this diagram · 2 diagrams in section
