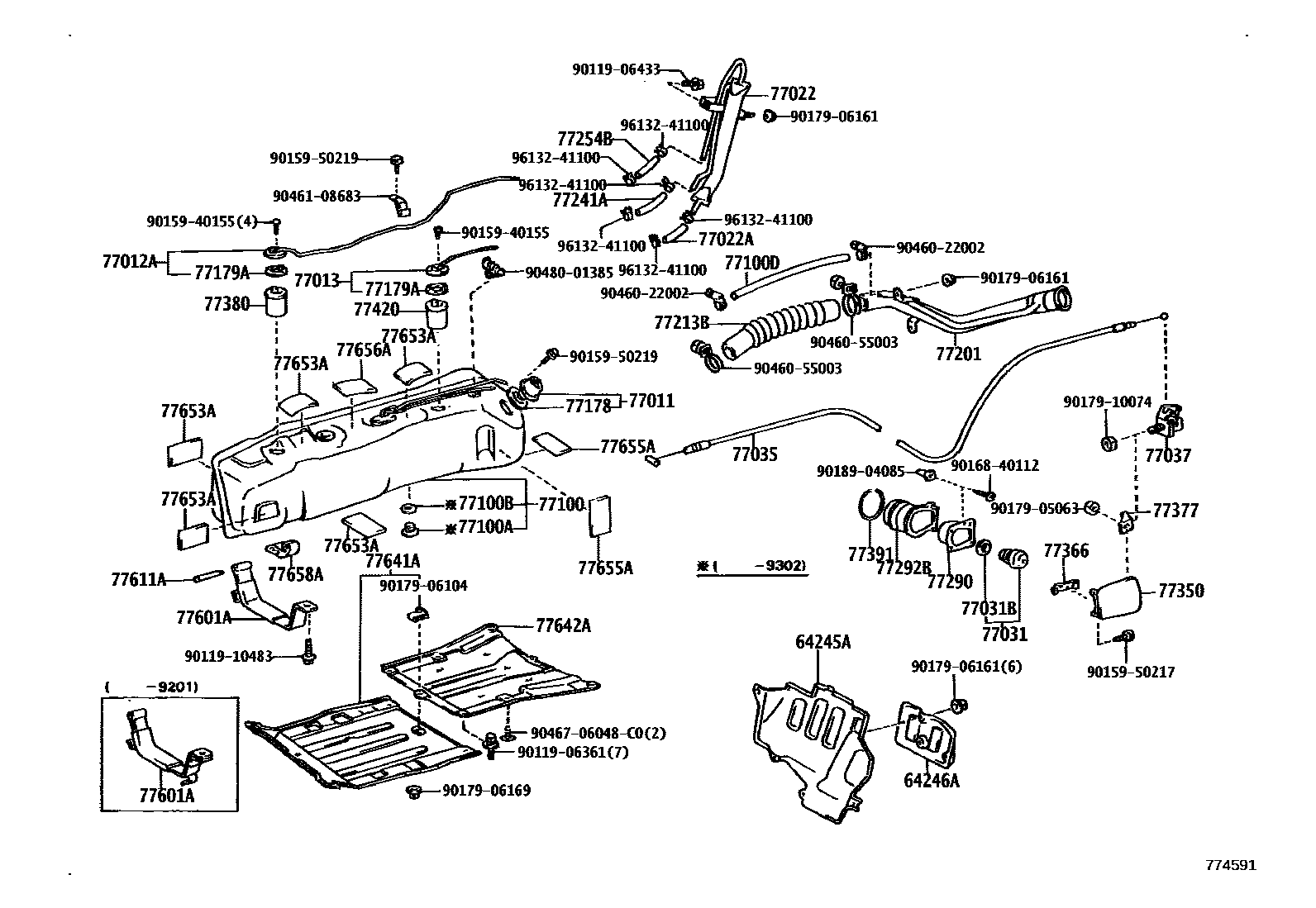

FUEL TANK & TUBE
64245AINSULATOR, ROOM PARTITION HEAT, NO.1
64246AINSULATOR, ROOM PARTITION HEAT, NO.2
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1
77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2
77022SEPARATOR SUB-ASSY, FUEL EVAPORATIVE
77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
L=100
L=100
77031CAP ASSY, FUEL TANK
77031BGASKET (FOR FUEL TANK CAP)
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77100TANK ASSY, FUEL
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77100DHOSE, FUEL, NO.1(FOR FUEL TANK)
L=340
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77179AGASKET, FUEL TANK BREATHER TUBE
sub77179-26011
77201PIPE SUB-ASSY, FUEL TANK INLET
77213BHOSE, FUEL TANK TO FILLER PIPE
L=248
77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
L=200(*H,L=120)
77254BHOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77292BSHIELD, FUEL TANK DRAIN PLUG
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77380VALVE ASSY, FUEL CUT OFF
77391RING, FUEL INLET BOX
77420VALVE ASSY, FUEL CUT OFF, NO.2
77611APIN (FOR FUEL TANK BAND)
77641APROTECTOR, FUEL TANK, NO.1
77642APROTECTOR, FUEL TANK, NO.2
77653ACUSHION, FUEL TANK, NO.3
77655ACUSHION, FUEL TANK, NO.5
77656ACUSHION, FUEL TANK, NO.4
77658APROTECTOR, FUEL TANK EDGE, NO.1
9011906361
main90119-06361
9011906433
main90119-06433
9011910483
main90119-10483
9015940155
main90159-40155
9015950217
main90159-50217
9015950219
main90159-50219
9016840112
main90168-40112
9017905063
main90179-05063
9017906104
main90179-06104
9017906161
main90179-06161
9017906169
main90179-06169
9017910074
main90179-10074
9018904085
main90189-04085
9046022002
main90460-22002
9046055003
main90460-55003
9046108683
main90461-08683
9046706048C0
main90467-06048C0
9048001385
main90480-01385
9613241100
main96132-41100
56 parts on this diagram · 2 diagrams in section
