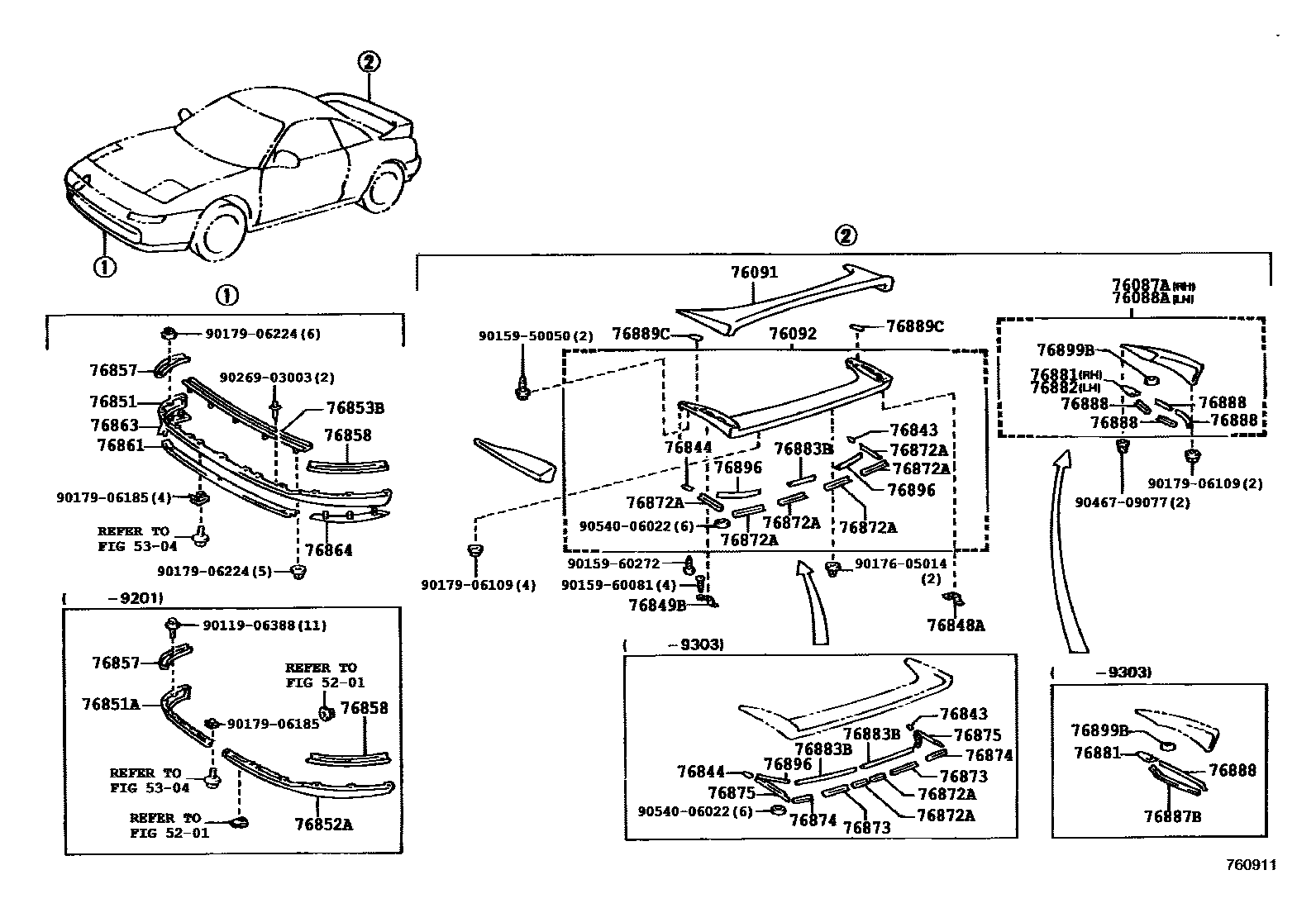

MUDGUARD & SPOILER
5201
5304
76087ASPOILER SUB-ASSY, REAR SIDE
W(MOTOR ANTENNA)
W(MOTOR ANTENA)
76088ASPOILER SUB-ASSY, REAR SIDE
76091SPOILER SUB-ASSY, REAR UPPER
76092SPOILER SUB-ASSY, REAR LOWER
76843PROTECTOR, REAR SPOILER, NO.11 RH
76844PROTECTOR, REAR SPOILER, NO.11 LH
76848ASUPPORT, REAR SPOILER
76849BSUPPORT, REAR SPOILER
76851COVER, FRONT SPOILER
76851ACOVER, FRONT SPOILER, RH
76852ACOVER, FRONT SPOILER, LH
76853BCOVER, FRONT SPOILER, CENTER
76857RETAINER, FRONT SPOILER SIDE, RH
76858RETAINER, FRONT SPOILER SIDE, LH
76861RETAINER, FRONT SPOILER, LOWER NO.1
76863RETAINER, FRONT SPOILER, LOWER NO.2 RH
76864RETAINER, FRONT SPOILER, LOWER NO.2 LH
76872APROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
76874PROTECTOR, REAR SPOILER, NO.3
76875PROTECTOR, REAR SPOILER, NO.4
76881PROTECTOR, REAR SPOILER SIDE, NO.1 RH
76882PROTECTOR, REAR SPOILER SIDE, NO.1 LH
76883BPROTECTOR, REAR SPOILER, NO.7
76887BPROTECTOR, REAR SPOILER SIDE, NO.2
76888PROTECTOR, REAR SPOILER SIDE, NO.3
76889CADHESIVE, REAR SPOILER
76896PROTECTOR, REAR SPOILER, NO.6
76899BPROTECTOR, REAR SPOILER, SIDE NO.6
9011906388
9015950050
9015960081
9015960272
9017605014
9017906109
9017906185
9017906224
9026903003
9046709077
9054006022
42 parts on this diagram · 2 diagrams in section
