ARMREST & VISOR

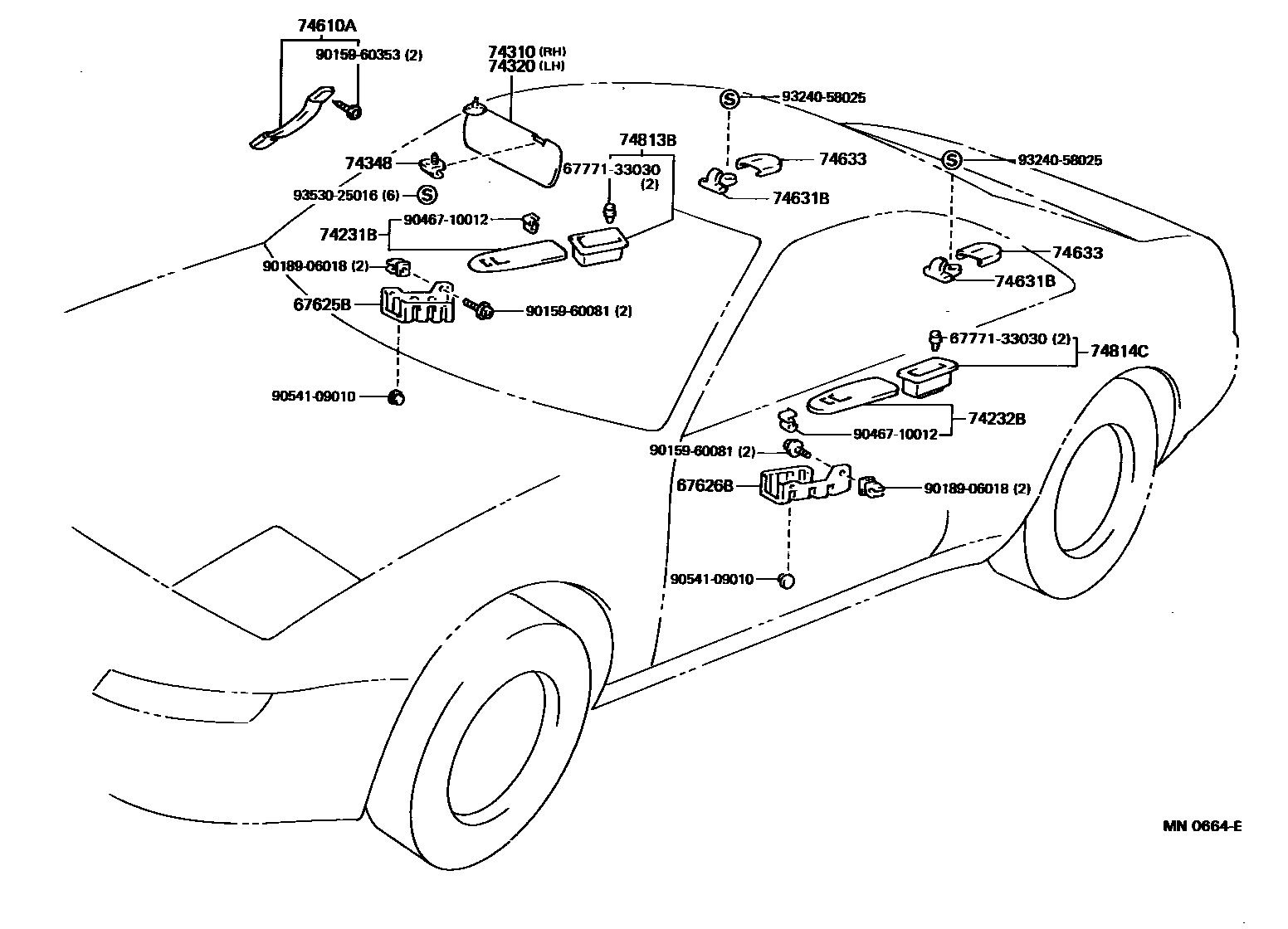

Parts diagram
67625BBRACKET, DOOR TRIM, NO.1 RH
main67625-17040i199001-199111
main67625-17041i199111-199506
67626BBRACKET, DOOR TRIM, NO.2 RH
main67626-17030i199001-199111
main67626-17031i199111-199506
74231BPANEL, DOOR ARMREST BASE, RH
main74231-17080-01i199201-199311
BLACK,TRIM0#,2#
sub74231-17080
main74231-17080-01i199001-199311
BLACK,TRIM2#
sub74231-17080
main74231-17080-02i199001-199201
RED,TRIM3#
sub74231-17080
main74231-17080-04i199001-199311
DARK BLUE,TRIM8#
sub74231-17080
main74231-17080-22i199311-199506
BLACK,TRIM0#,2#
sub74231-17080
74232BPANEL, DOOR ARMREST BASE, LH
main74232-17060-01i199001-199311
BLACK,TRIM2#
sub74232-17060
main74232-17060-01i199201-199311
BLACK,TRIM0#,2#
sub74232-17060
main74232-17060-02i199001-199201
RED,TRIM3#
sub74232-17060
main74232-17060-04i199001-199311
DARK BLUE,TRIM8#
sub74232-17060
main74232-17060-22i199311-199506
BLACK,TRIM2#
sub74232-17060
main74232-17080-01i199201-199311
W(POWER WINDOW),BLACK,TRIM0#,2#
sub74232-17080
main74232-17080-01i199001-199311
W(POWER WINDOW),BLACK,TRIM2#
sub74232-17080
main74232-17080-02i199001-199201
W(POWER WINDOW),RED,TRIM3#
sub74232-17080
main74232-17080-04i199001-199311
W(POWER WINDOW),DARK BLUE,TRIM8#
sub74232-17080
main74232-17080-22i199311-199506
W(POWER WINDOW),BLACK,TRIM0#,2#
sub74232-17080
74310VISOR ASSY, RH
main74310-17190-01i199001-199201
BLACK,TRIM2#
main74310-17190-02i199001-199201
RED,TRIM3#
main74310-17190-04i199001-199201
DARK BLUE,TRIM8#
main74310-17190-A0i199201-199311
IVORY,TRIM0#
main74310-17190-B1i199201-199311
GRAY,TRIM2#
main74310-17190-J0i199201-199311
BLUE,TRIM8#
main74310-17200-01i199001-199201
BLACK,TRIM2#
main74310-17200-02i199001-199201
RED,TRIM3#
main74310-17200-04i199001-199201
DARK BLUE,TRIM8#
main74310-17200-A0i199201-199311
IVORY,TRIM0#
main74310-17200-B1i199201-199311
GRAY,TRIM2#
main74310-17200-J0i199201-199311
BLUE,TRIM8#
main74310-17210-01i199001-199201
W(MOON ROOF),BLACK,TRIM2#
main74310-17210-02i199001-199201
W(MOON ROOF),RED,TRIM3#
main74310-17210-04i199001-199201
W(MOON ROOF),DARK BLUE,TRIM8#
main74310-17210-A0i199201-199311
W(MOON ROOF),IVORY,TRIM0#
main74310-17210-B1i199201-199311
W(MOON ROOF),GRAY,TRIM2#
main74310-17210-J0i199201-199311
W(MOON ROOF),BLUE,TRIM8#
main74310-17370-A0i199311-199408
IVORY,TRIM0#
main74310-17370-B0i199311-199408
GRAY,TRIM2#
main74310-17371-A0i199408-199506
IVORY,TRIM0#
main74310-17371-B0i199408-199506
BLACK,TRIM2#
main74310-17380-A0i199311-199408
IVORY,TRIM0#
main74310-17380-B0i199311-199408
GRAY,TRIM2#
main74310-17381-A0i199408-199506
IVORY,TRIM0#
main74310-17381-B0i199408-199506
BLACK,TRIM2#
main74310-17390-A0i199311-199408
W(MOON ROOF),IVORY,TRIM0#
main74310-17390-B0i199311-199408
W(MOON ROOF),GRAY,TRIM2#
main74310-17391-A0i199408-199506
W(MOON ROOF),IVORY,TRIM0#
main74310-17391-B0i199408-199506
W(MOON ROOF),BLACK,TRIM2#
74320VISOR ASSY, LH
main74320-17210-01i199001-199201
BLACK,TRIM2#
main74320-17210-02i199001-199201
RED,TRIM3#
main74320-17210-04i199001-199201
DARK BLUE,TRIM8#
main74320-17210-A0i199201-199311
IVORY,TRIM0#
main74320-17210-B1i199201-199311
GRAY,TRIM2#
main74320-17210-J0i199201-199311
BLUE,TRIM8#
main74320-17220-01i199001-199201
W(MOON ROOF),BLACK,TRIM2#
main74320-17220-01i199001-199201
BLACK,TRIM2#
main74320-17220-02i199001-199201
W(MOON ROOF),RED,TRIM3#
main74320-17220-02i199001-199201
RED,TRIM3#
main74320-17220-04i199001-199201
W(MOON ROOF),DARK BLUE,TRIM8#
main74320-17220-04i199001-199201
DARK BLUE,TRIM8#
main74320-17220-A0i199201-199311
W(MOON ROOF),IVORY,TRIM0#
main74320-17220-A0i199201-199311
IVORY,TRIM0#
main74320-17220-B1i199201-199311
W(MOON ROOF),GRAY,TRIM2#
main74320-17220-B1i199201-199311
GRAY,TRIM2#
main74320-17220-J0i199201-199311
BLUE,TRIM8#
main74320-17220-J0i199201-199311
W(MOON ROOF),BLUE,TRIM8#
main74320-17290-01i199001-199201
BLACK,TRIM2#
main74320-17290-02i199001-199201
RED,TRIM3#
main74320-17290-04i199001-199201
DARK BLUE,TRIM8#
main74320-17340-B0i199201-199311
GRAY,TRIM2#
main74320-17340-J0i199201-199311
BLUE,TRIM8#
main74320-17350-A0i199311-199408
IVORY,TRIM0#
main74320-17350-B0i199311-199408
GRAY,TRIM2#
main74320-17351-A0i199408-199506
IVORY,TRIM0#
main74320-17351-B0i199408-199506
BLACK,TRIM2#
main74320-17360-A0i199311-199408
W(MOON ROOF),IVORY,TRIM0#
main74320-17360-A0i199311-199408
IVORY,TRIM0#
main74320-17360-B0i199311-199408
GRAY,TRIM2#
main74320-17360-B0i199311-199408
W(MOON ROOF),GRAY,TRIM2#
main74320-17361-A0i199408-199506
W(MOON ROOF),IVORY,TRIM0#
main74320-17361-A0i199408-199506
IVORY,TRIM0#
main74320-17361-B0i199408-199506
W(MOON ROOF),BLACK,TRIM2#
main74320-17361-B0i199408-199506
BLACK,TRIM2#
74348HOLDER, VISOR
main74348-30010-01i199001-199201
BLACK,TRIM2#
sub74348-30010
main74348-30010-02i199001-199201
RED,TRIM3#
sub74348-30010
main74348-30010-04i199201-199311
BLUE,TRIM8#
sub74348-30010
main74348-30010-14i199001-199201
DARK BLUE,TRIM8#
sub74348-30010
main74348-30010-A1i199201-199506
IVORY,TRIM0#
sub74348-30010
main74348-30010-B1i199201-199506
GRAY,TRIM2#
sub74348-30010
74610AGRIP SUB-ASSY, ASSIST
main74610-17020-01i199201-199311
BLACK,TRIM0#,2#
sub74610-17020
main74610-17020-01i199001-199311
BLACK,TRIM2#
sub74610-17020
main74610-17020-02i199001-199201
RED,TRIM3#
sub74610-17020
main74610-17020-04i199001-199311
DARK BLUE,TRIM8#
sub74610-17020
main74610-17020-22i199311-199506
BLACK,TRIM0#,2#
sub74610-17020
74631BHOOK, COAT
main74631-17020-01i199201-199311
BLACK,TRIM0#,2#
sub74631-17020
main74631-17020-01i199001-199311
BLACK,TRIM2#
sub74631-17020
main74631-17020-02i199001-199201
RED,TRIM3#
sub74631-17020
main74631-17020-04i199001-199311
DARK BLUE,TRIM8#
sub74631-17020
main74631-17020-22i199311-199506
BLACK,TRIM0#,2#
sub74631-17020
74633CAP, COAT HOOK
main74633-17010-01i199001-199311
BLACK,TRIM2#
sub74633-17010
main74633-17010-01i199201-199311
BLACK,TRIM0#,2#
sub74633-17010
main74633-17010-02i199001-199201
RED,TRIM3#
sub74633-17010
main74633-17010-04i199001-199311
DARK BLUE,TRIM8#
sub74633-17010
main74633-17010-22i199311-199506
BLACK,TRIM0#,2#
sub74633-17010
74813BHANDLE, FRONT DOOR PULL, RH
main74813-17010-01i199001-199109
BLACK,TRIM2#
sub74813-17011
main74813-17010-02i199001-199109
RED,TRIM3#
sub74813-17011
main74813-17010-04i199001-199109
DARK BLUE,TRIM8#
sub74813-17011
main74813-17011-22i199109-199506
BLACK,TRIM2#
main74813-17011-22i199201-199506
BLACK,TRIM0#,2#
main74813-17011-D3i199109-199201
RED,TRIM3#
main74813-17011-R8i199109-199311
DARK BLUE,TRIM8#
74814CHANDLE, FRONT DOOR PULL, LH
main74814-17010-01i199001-199109
BLACK,TRIM2#
sub74814-17011
main74814-17010-02i199001-199109
RED,TRIM3#
sub74814-17011
main74814-17010-04i199001-199109
DARK BLUE,TRIM8#
sub74814-17011
main74814-17011-22i199109-199506
BLACK,TRIM2#
main74814-17011-22i199201-199506
BLACK,TRIM0#,2#
main74814-17011-D3i199109-199201
RED,TRIM3#
main74814-17011-R8i199109-199311
DARK BLUE,TRIM8#
6777133030WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-33030
9015960081
main90159-60081
9015960353
main90159-60353
9018906018
main90189-06018
9046710012
main90467-10012
9054109010
main90541-09010
9324058025
main93240-58025
9353025016
main93530-25016

20 parts on this diagram · 1 diagram in section
