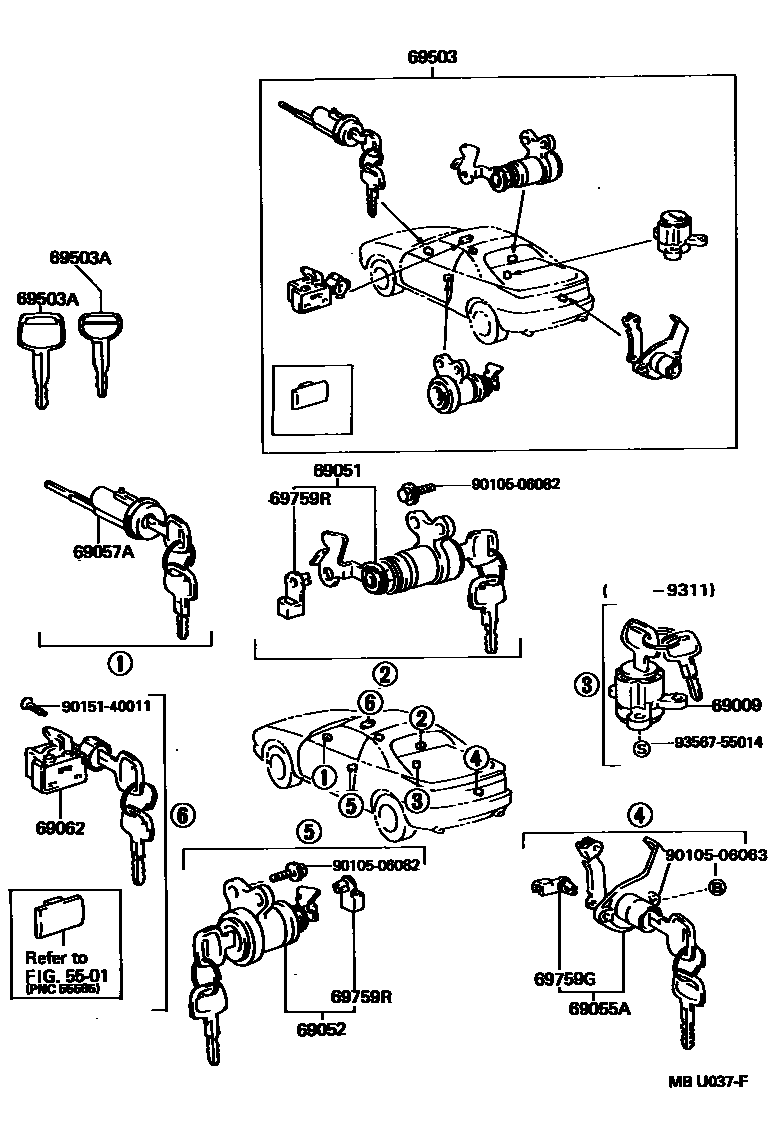

LOCK CYLINDER SET
5501
69009CYLINDER & KEY SET, DECK COMPARTMENT LOCK
sub69009-17030
69051CYLINDER & KEY SET, DOOR LOCK, RH
sub69051-17061
69052CYLINDER & KEY SET, DOOR LOCK, LH
sub69052-17061
W(POWER WINDOW)
W(POWER WINDOW) OR W(ANTI-THEFT DEVICE)
69503CYLINDER SET, LOCK
W(POWER WINDOW) OR POWER PACKAGE
W(POWER WINDOW)
W(POWER WINDOW)
W(ANTI-THEFT DEVICE)
W(ANTI-THEFT DEVICE & POWER WINDOW)
W(ANTI-THEFT DEVICE)
W(ANTI-THEFT DEVICE & POWER WINDOW)
W(POWER WINDOW)
W(POWER WINDOW)
W(POWER WINDOW)
POWER PACKAGE OR POWER+LEATHER PACKAGE
W(POWER WINDOW)
W(ANTI-THEFT DEVICE & POWER WINDOW)
W(ANTI-THEFT DEVICE)
W(ANTI-THEFT DEVICE & POWER WINDOW)
W(ANTI-THEFT DEVICE)
69503AKEY, BLANK
SUB KEY
69759GSNAP, LUGGAGE DOOR LOCK CYLINDER
69759RSNAP, FRONT DOOR LOCK CYLINDER
ORANGE
PINK
RH
LH
9010506063
main90105-06063
9010506082
main90105-06082
9015140011
main90151-40011
9356755014
main93567-55014
15 parts on this diagram · 2 diagrams in section
