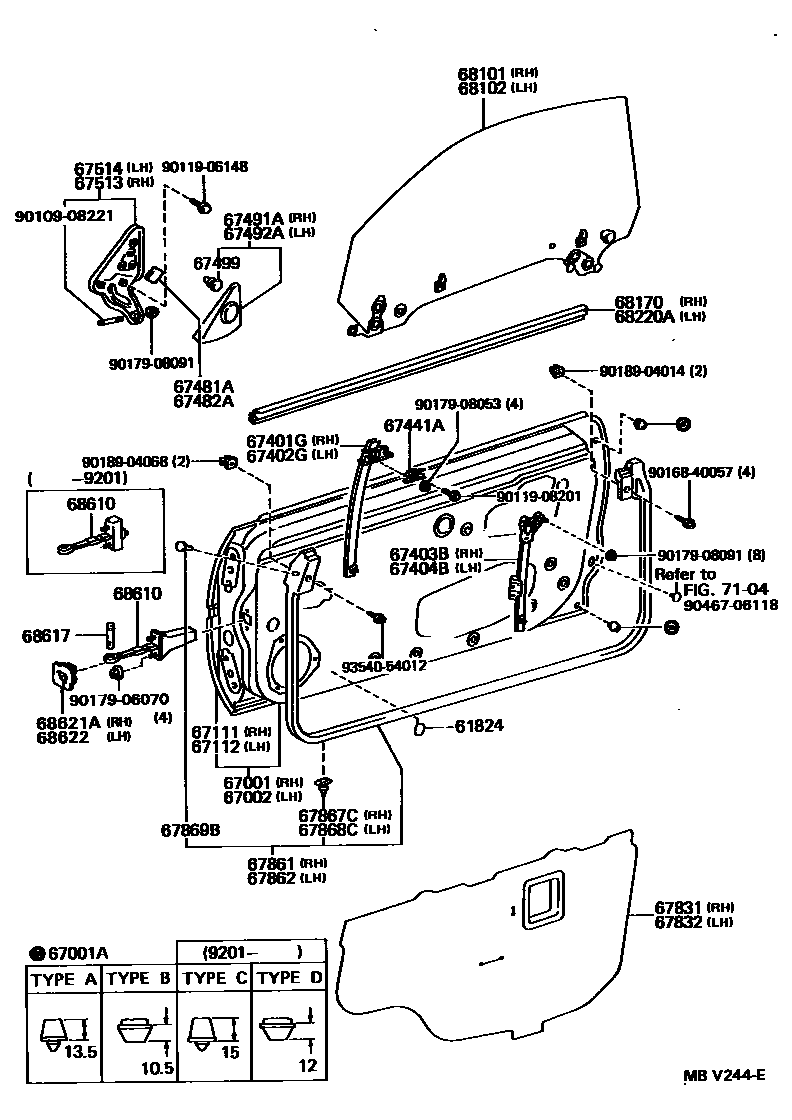

FRONT DOOR PANEL & GLASS
61824PLATE, NOISE CONTROL, NO.1
67001ACUSHION, FRONT DOOR PANEL
TYPE C
TYPE A
TYPE D
TYPE B
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401GGUIDE SUB-ASSY, FRONT DOOR WINDOW, FRONT RH
67402GGUIDE SUB-ASSY, FRONT DOOR WINDOW, FRONT LH
67403BGUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR RH
67404BGUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR LH
67441APLATE, FRONT DOOR FRONT GUIDE, UPPER
67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH
sub61824-12120
67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH
sub61824-12120
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67513BRACKET, FRONT DOOR MIRROR, RH
67514BRACKET, FRONT DOOR MIRROR, LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67869BCLIP, FRONT DOOR WEATHERSTRIP
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH
68610CHECK ASSY, FRONT DOOR
68617PIN, FRONT DOOR CHECK
68621ACOVER, FRONT DOOR CHECK, RH
68622COVER, FRONT DOOR CHECK, LH
7104
9010908221
main90109-08221
9011906148
main90119-06148
9011908201
main90119-08201
9016840057
main90168-40057
9017906070
main90179-06070
9017908053
main90179-08053
9017908091
main90179-08091
9018904014
main90189-04014
9018904068
main90189-04068
9046706118
main90467-06118
9354054012
main93540-54012
45 parts on this diagram · 2 diagrams in section
