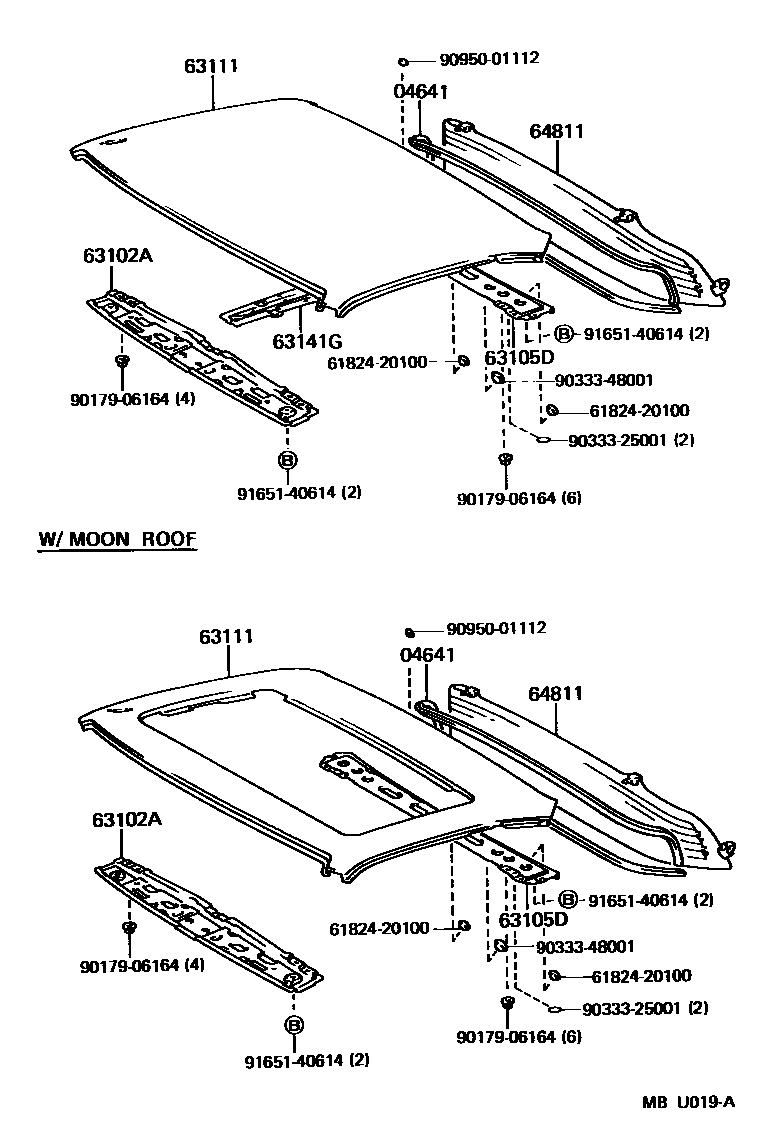

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1 0004 1

04641DAM KIT, BACK WINDOW GLASS

main04562-12010iSW2#199001-199506

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-17020iSW2#..CP199001-199506

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-17010iSW2#199001-199506

63111PANEL, ROOF

main63111-17080iSW21..CP199001-199506

main63111-17110iSW20..CP199001-199506

W(*SNR)

main63111-17904iSW21..CP199001-199506

W(ANTENNA)

main63111-17905iSW21..CP199001-199506

W(*SNR & ANTENNA HOLE)

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-17030iSW2#..CP199001-199506

64811GLASS, BACK WINDOW

main64811-17110iSW2#199001-199311

*EHTT,T=3.5,BLUE

main64811-17111iSW2#199311-199506

*EHTT,T=3.5,BLUE

sub64811-17170

6182420100PLATE, NOISE CONTROL, NO.1

main61824-20100

9017906164

main90179-06164

9033325001

main90333-25001

9033348001

main90333-48001

9095001112

main90950-01112

9165140614

main91651-40614

12 parts on this diagram · 4 diagrams in section
