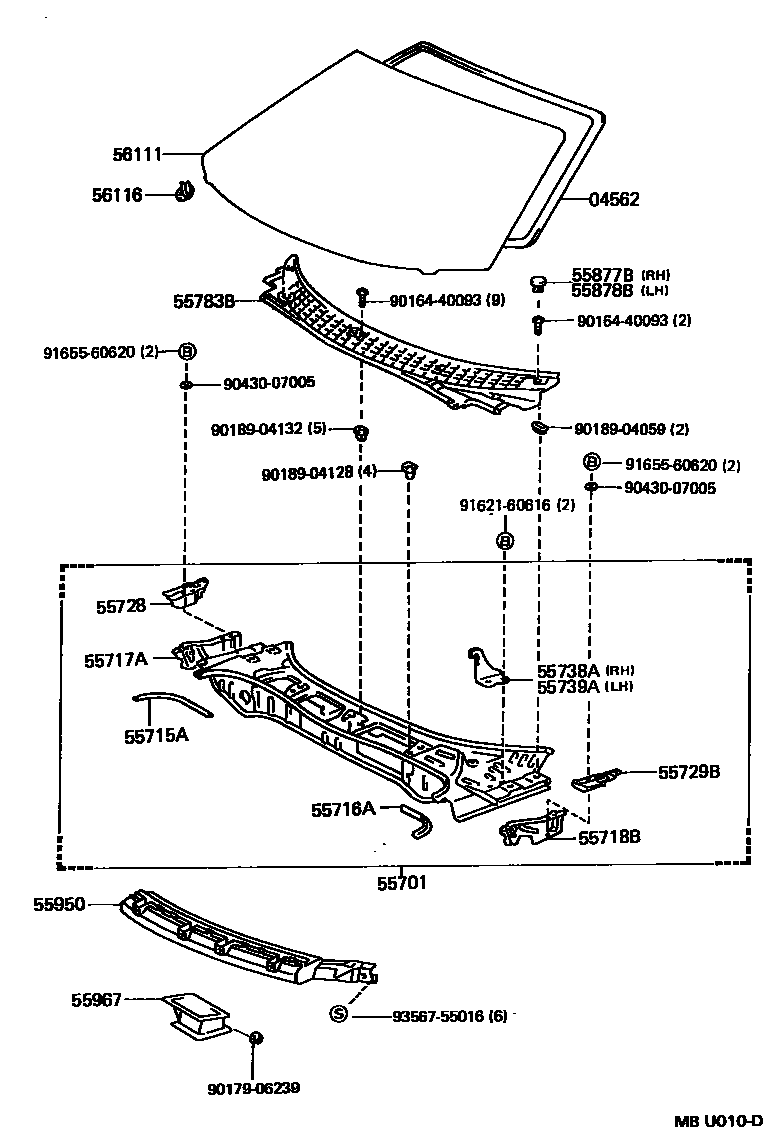

COWL PANEL & WINDSHIELD GLASS
04562DAM KIT, WINDSHIELD GLASS
55701PANEL SUB-ASSY, COWL
W(DIVERSITY ANTENNA)
W(DIVERSITY ANTENA)
W(RADI0 ACOUSTIC FLAVOR)
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55717APANEL, COWL TOP SIDE, INNER RH
55718BPANEL, COWL TOP SIDE, INNER LH
55728REINFORCEMENT, HOOD STOPPER, RH
55729BREINFORCEMENT, HOOD STOPPER, LH
55738ASTOPPER, HOOD, RH
55739ASTOPPER, HOOD, LH
55877BCOVER, COWL VENT, RH
55878BCOVER, COWL VENT, LH
55950NOZZLE ASSY, DEFROSTER
55967NOZZLE, DEFROSTER, LOWER
56111GLASS, WINDSHIELD
*TL,T=5.3,BLUE
*LAM,T=5.3,BLUE
*TL,T=5.3,BLUE,W(ANTENNA)
*TL,T=5.3,BLUE,W(ANTENA)
*LAM,T=5.3,BLUE,W(ANNTENA)
56116SPACER, WINDSHIELD GLASS
WHITE
BLUE
YELLOW
RED
9016440093
main90164-40093
9017906239
main90179-06239
9018904059
main90189-04059
9018904128
main90189-04128
9018904132
main90189-04132
9043007005
main90430-07005
9162160616
main91621-60616
9165560620
main91655-60620
9356755016
main93567-55016
26 parts on this diagram · 1 diagram in section
