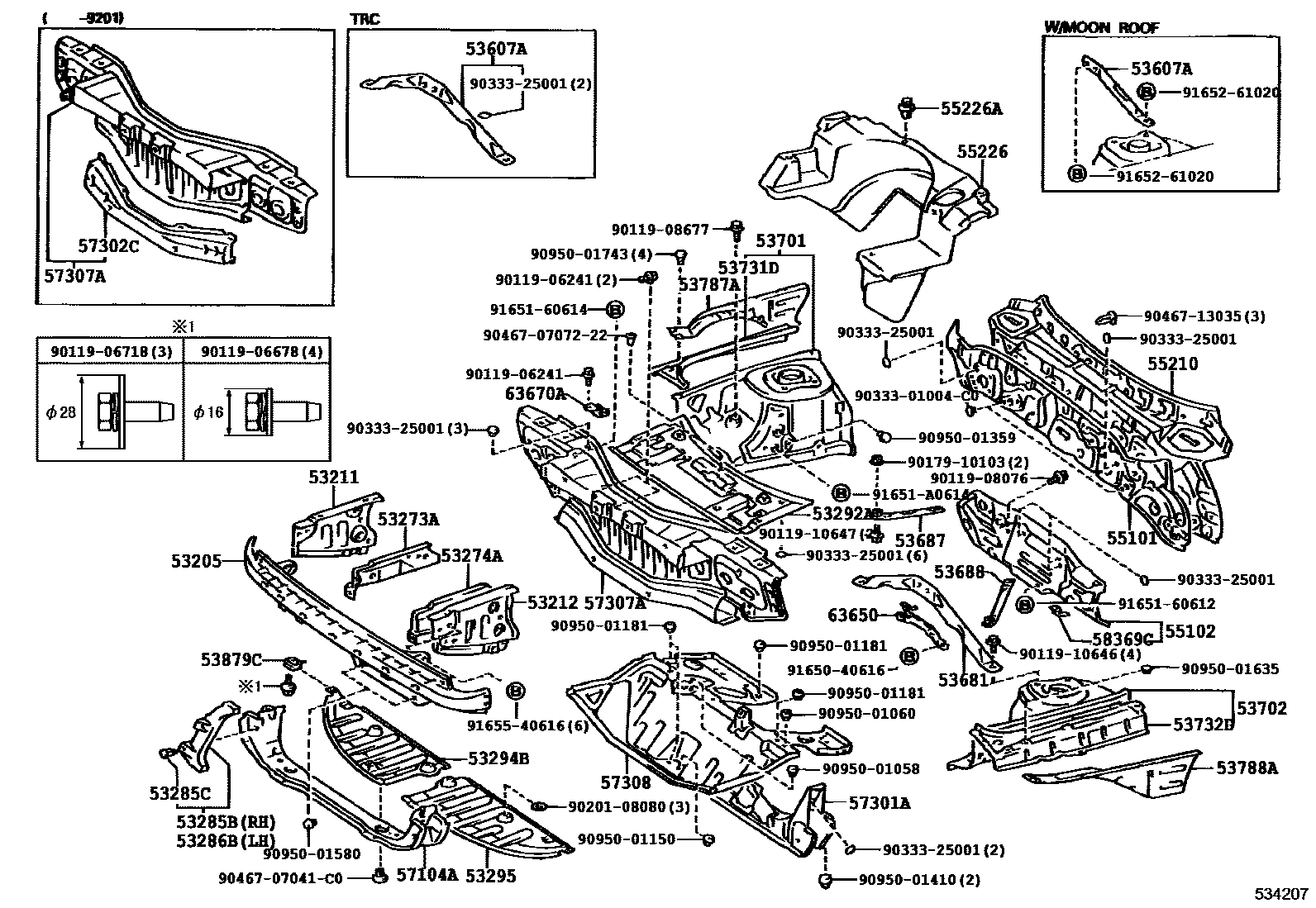

FRONT FENDER APRON & DASH PANEL
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53211SUPPORT, RADIATOR, RH
53212SUPPORT, RADIATOR, LH
53273AREINFORCEMENT, RADIATOR SUPPORT, RH
53274AREINFORCEMENT, RADIATOR SUPPORT, LH
53285BSEAL, RADIATOR SIDE AIR, NO.1
53285CCLIP(FOR RADIATOR SIDE AIR SEAL)
53286BSEAL, RADIATOR SIDE AIR, NO.2
53292ASEAL, RADIATOR SUPPORT, UPPER
53294BDEFLECTOR, RADIATOR LOWER AIR, NO.1
53295DEFLECTOR, RADIATOR LOWER AIR
53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER
53681BRACE, FRONT SUSPENSION, UPPER CENTER
53687BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, RH
53688BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, LH
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53787AGUSSET, FRONT FENDER APRON, LOWER RH
53788AGUSSET, FRONT FENDER APRON, LOWER LH
53879CRETAINER, FRONT FENDER LINER
55101PANEL SUB-ASSY, DASH
55102PANEL SUB-ASSY, DASH, LOWER
55210INSULATOR ASSY, DASH PANEL
55226ACLIP
57104AMEMBER SUB-ASSY, FRONT CROSS
57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT
W(ELECTRICAL TYPE POWER STEERING)
57302CMEMBER SUB-ASSY, FRONT LUGGAGE CROSS
57307APANEL SUB-ASSY, FRONT LUGGAGE END
57308PAN SUB-ASSY, FRONT LUGGAGE
W(ELECTRICAL TYPE POWER STEERING)
58369CBRACKET, FUEL TUBE, NO.3
63650HOLDER ASSY, REMOVABLE ROOF
63670ASTAY ASSY, REMOVABLE ROOF, RH
9011906241
main90119-06241
9011906678
main90119-06678
9011906718
main90119-06718
9011908076
main90119-08076
9011908677
main90119-08677
9011910646
main90119-10646
9011910647
main90119-10647
9017910103
main90179-10103
9020108080
main90201-08080
9033301004C0
main90333-01004C0
9033325001
main90333-25001
9046707041C0
main90467-07041C0
904670707222
main90467-0707222
9046713035
main90467-13035
9095001058
main90950-01058
9095001060
main90950-01060
9095001150
main90950-01150
9095001181
main90950-01181
9095001359
main90950-01359
9095001410
main90950-01410
9095001580
main90950-01580
9095001635
main90950-01635
9095001743
main90950-01743
9165040616
main91650-40616
9165160612
main91651-60612
9165160614
main91651-60614
91651A0614
main91651-A0614
9165261020
main91652-61020
9165540616
main91655-40616
64 parts on this diagram · 1 diagram in section
