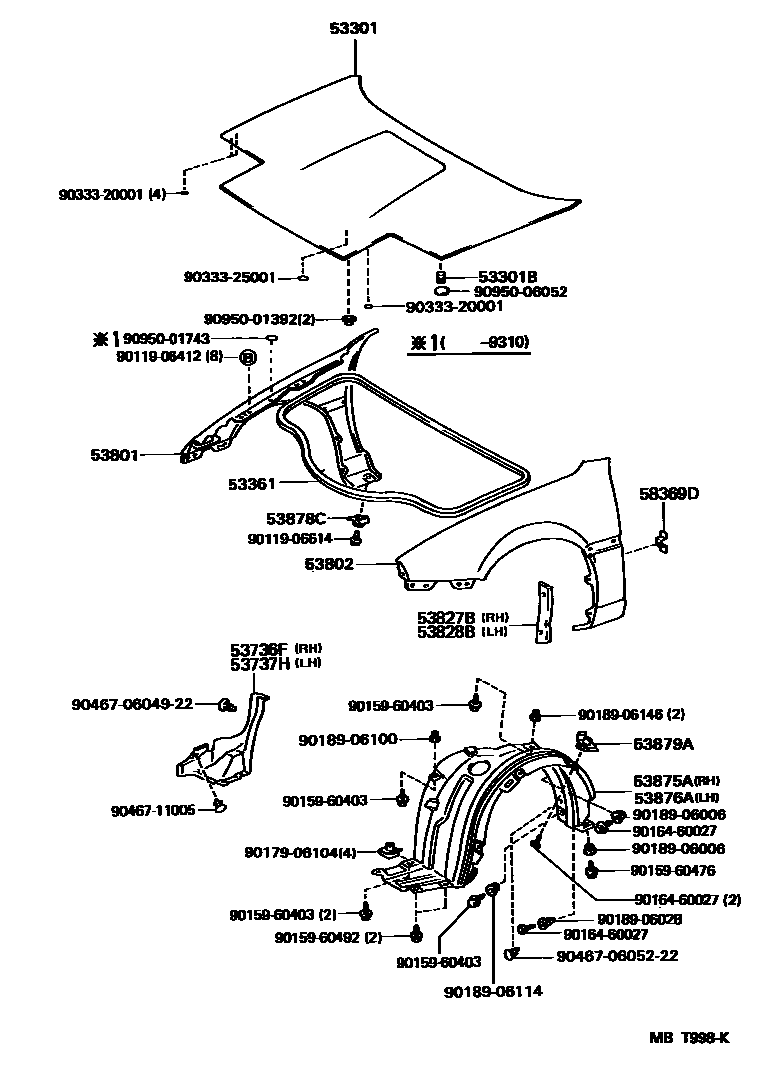

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53301BCUSHION, HOOD BUMPER
53361WEATHERSTRIP, HOOD
53736FSEAL, FRONT FENDER APRON, RH
53737HSEAL, FRONT FENDER APRON, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53827BPROTECTOR, FRONT FENDER SIDE PANEL
53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH
53875ALINER, FRONT FENDER, RH
sub53875-17030
53876ALINER, FRONT FENDER, LH
sub53876-17030
53878CSPACER, FRONT FENDER
53879ARETAINER, FRONT FENDER LINER
58369DBRACKET, FUEL TUBE, NO.3
9011906412
main90119-06412
9011906614
main90119-06614
9015960403
main90159-60403
9015960476
main90159-60476
9015960492
main90159-60492
9016460027
main90164-60027
9017906104
main90179-06104
9018906006
main90189-06006
9018906028
main90189-06028
9018906100
main90189-06100
9018906114
main90189-06114
9018906146
main90189-06146
9033320001
main90333-20001
9033325001
main90333-25001
904670604922
main90467-0604922
904670605222
main90467-0605222
9046711005
main90467-11005
9095001392
main90950-01392
9095001743
main90950-01743
9095006052
main90950-06052
34 parts on this diagram · 1 diagram in section
