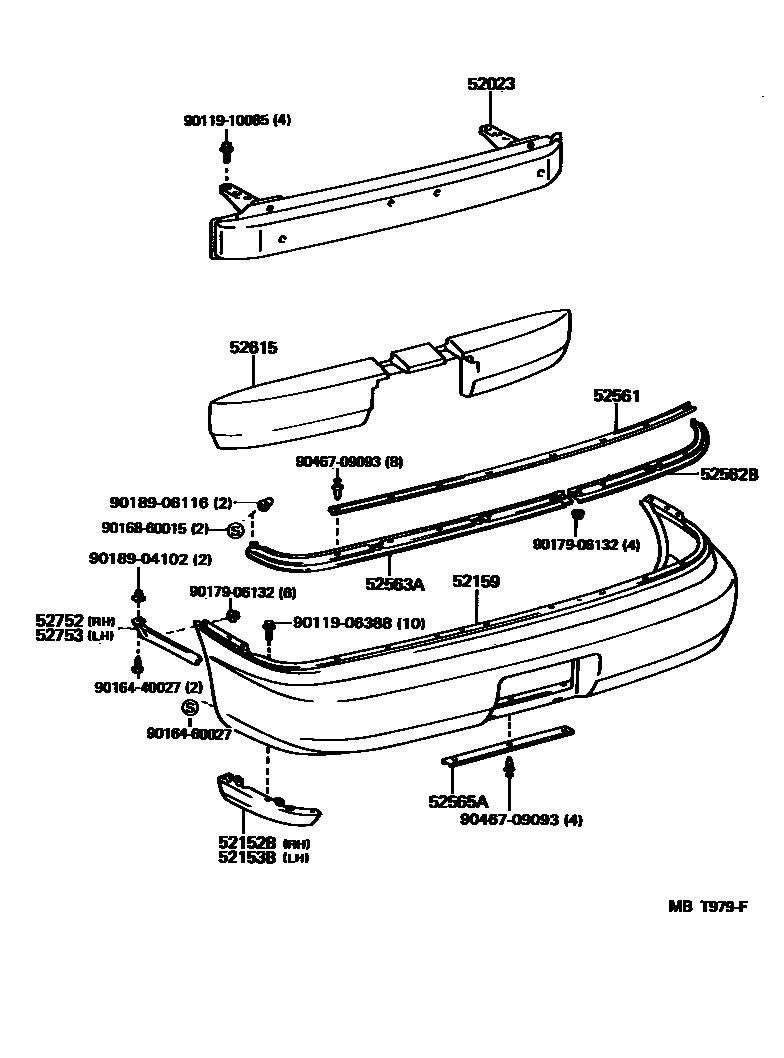

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52152BEXTENSION, REAR BUMPER, RH
52153BEXTENSION, REAR BUMPER, LH
52159COVER, REAR BUMPER
52561RETAINER, REAR BUMPER, UPPER CENTER
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52565ARETAINER, REAR BUMPER, LOWER
52615ABSORBER, REAR BUMPER ENERGY
52752MOULDING, REAR BUMPER SIDE, RH
52753MOULDING, REAR BUMPER SIDE, LH
9011906388
main90119-06388
9011910085
main90119-10085
9016440027
main90164-40027
9016460027
main90164-60027
9016860015
main90168-60015
9017906132
main90179-06132
9018904102
main90189-04102
9018906116
main90189-06116
9046709093
main90467-09093
20 parts on this diagram · 1 diagram in section
