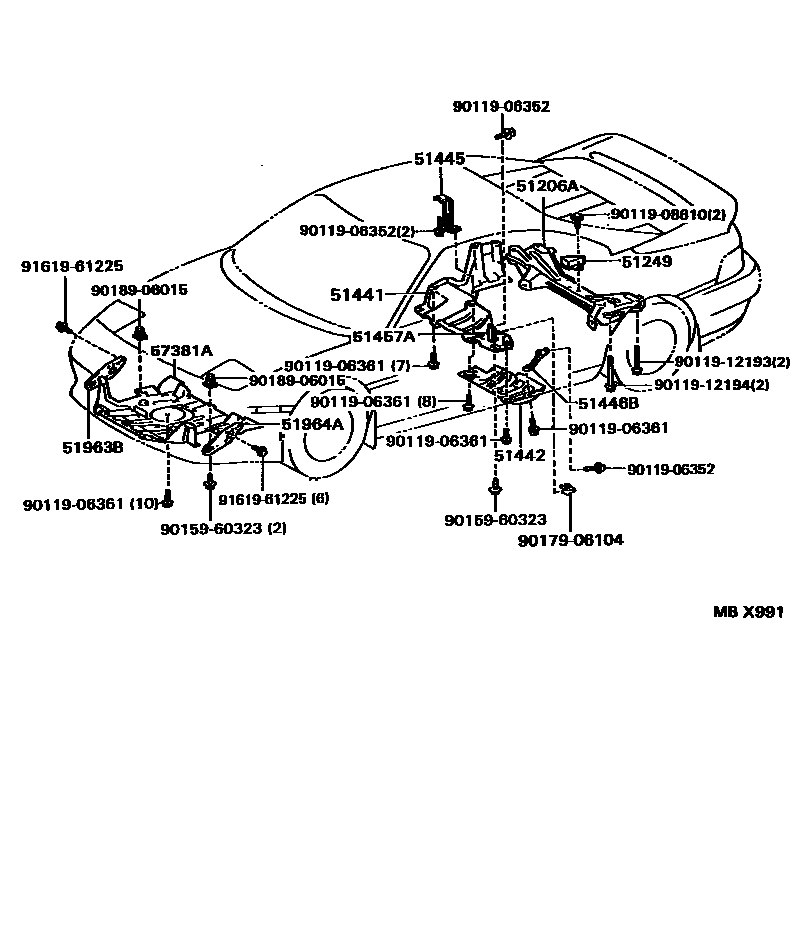

SUSPENSION CROSSMEMBER & UNDER COVER

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-17010iSW2#199001-199201

main51206-17020iSW2#199201-199506

51249DAMPER, REAR SUSPENSION MEMBER

main51249-17010iSW2#199001-199506

51441COVER, ENGINE UNDER, NO.1

main51441-17030iSW2#199001-199506

51442COVER, ENGINE UNDER, NO.2

main51442-17010iSW2#..5F199001-199506

main51442-17020iSW21..4FC199001-199506

sub51442-17010

51445BRACKET, ENGINE UNDER COVER

main51445-17010iSW2#199001-199506

51446BBRACKET, ENGINE UNDER COVER, NO.2

main51446-17010iSW2#199001-199506

51457ABRACKET, ENGINE UNDER COVER, NO.3

main51457-17010iSW2#199001-199506

51963BHOOK, TRANSPORT, FRONT RH

main51963-17030iSW2#199001-199506

51964AHOOK, TRANSPORT, FRONT LH

main51964-17020iSW2#199001-199506

57381ACOVER, FRONT LUGGAGE UNDER

main57381-17010iSW2#199001-199506

9011906352

main90119-06352

9011906361

main90119-06361

9011908610

main90119-08610

9011912193

main90119-12193

9011912194

main90119-12194

9015960323

main90159-60323

9017906104

main90179-06104

9018906015

main90189-06015

9161961225

main91619-61225

19 parts on this diagram · 1 diagram in section
