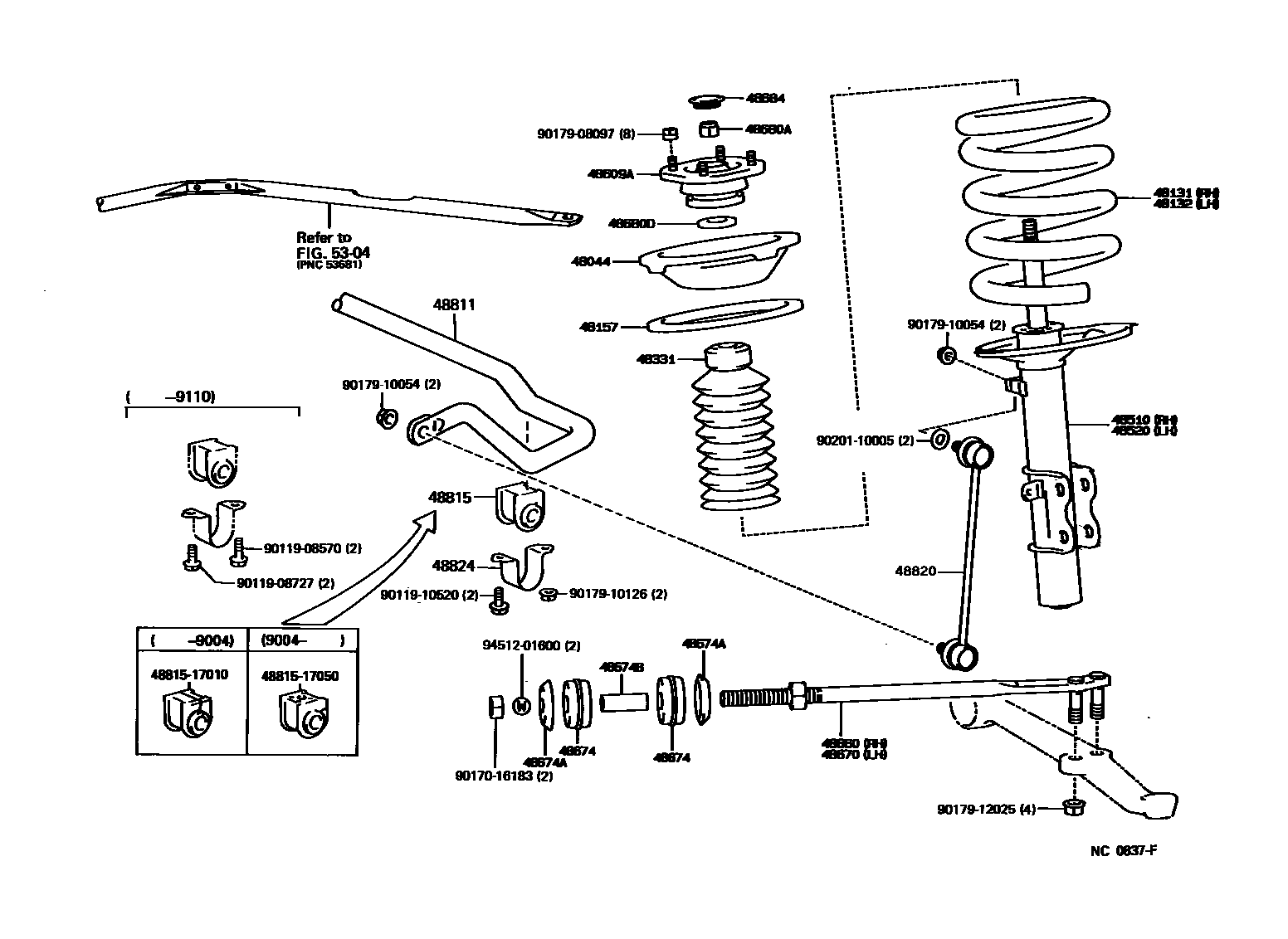

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48044SEAT SUB-ASSY, FRONT SPRING, NO.1

main48044-17020iSW2#199001-199506

48131SPRING, FRONT COIL, RH

main48131-17280iSW21199003-199201

main48131-17310iSW20199001-199201

main48131-17340iSW21199001-199003

main48131-17440iSW21199201-199311

main48131-17470iSW20199201-199311

main48131-17600iSW20199311-199506

main48131-17660iSW21199311-199506

48132SPRING, FRONT COIL, LH

main48131-17280iSW21199003-199201

main48131-17310iSW20199001-199201

main48131-17340iSW21199001-199003

main48131-17440iSW21199201-199311

main48131-17470iSW20199201-199311

main48131-17600iSW20199311-199506

main48131-17660iSW21199311-199506

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-17020iSW2#199001-199506

48331BUMPER, FRONT SPRING, NO.1

main48331-17020iSW2#199001-199201

sub48331-17021

main48331-17030iSW2#199201-199506

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-17050iSW21199001-199201

sub48510-17070

main48510-17060iSW20199001-199201

sub48510-17080

main48510-17070iSW21199001-199201

W(*66)

sub48510-17081

main48510-17080iSW20199001-199201

W(*66)

sub48510-17081

main48510-17090iSW2#199201-199311

sub48510-17110

main48510-17110iSW2#199201-199311

W(*66)

sub48510-17111

main48510-19315iSW2#199311-199506

sub48510-19335

main48510-19335iSW2#199311-199506

W(*66)

sub48510-19336

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-17050iSW21199001-199201

sub48520-17070

main48520-17060iSW20199001-199201

sub48520-17080

main48520-17070iSW21199001-199201

W(*66)

sub48520-17081

main48520-17080iSW20199001-199201

W(*66)

sub48520-17081

main48520-17090iSW2#199201-199311

sub48520-17110

main48520-17110iSW2#199201-199311

W(*66)

sub48520-17111

main48520-19035iSW2#199311-199506

sub48520-19055

main48520-19055iSW2#199311-199506

W(*66)

sub48520-19056

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-17030iSW2#199001-199311

main48609-17040iSW2#199311-199506

48660BAR ASSY, STRUT, RH

main48660-17030iSW2#199001-199201

main48660-17040iSW2#199201-199506

48670BAR ASSY, STRUT, LH

main48670-17030iSW2#199001-199201

main48670-17040iSW2#199201-199506

48674CUSHION, STRUT BAR

main48674-17030iSW2#199001-199201

FR

main48674-17040iSW2#199001-199201

RR

48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)

main90948-02036iSW2#199001-199201

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-16108iSW2#199001-199201

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94182-11400iSW2#199001-199506

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iSW2#199001-199506

48684COVER, BEARING DUST

main48684-14030iSW2#199001-199506

48811BAR, STABILIZER, FRONT

main48811-17050iSW21199001-199003

main48811-17060iSW20199001-199003

W(POWER STEERING)

main48811-17070iSW20199003-199201

W(POWER STEERING)

main48811-17080iSW21199003-199201

main48811-17080iSW20..USA199001-199003

W(POWER STEERING)

main48811-17090iSW20..USA199003-199201

W(POWER STEERING)

main48811-17110iSW21199201-199311

main48811-17120iSW20199201-199506

main48811-17130iSW21199311-199506

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-17010iSW20199001-199003

W(POWER STEERING)

main48815-17010iSW21199003-199004

main48815-17020iSW20199003-199004

W(POWER STEERING)

main48815-17040iSW21199001-199003

main48815-17060iSW21199004-199201

main48815-17070iSW20199004-199201

W(POWER STEERING)

main48815-17080iSW20..USA199004-199201

W(POWER STEERING)

main48815-17100iSW21199201-199311

main48815-17110iSW20199201-199506

main48815-17120iSW21199311-199506

48820LINK ASSY, FRONT STABILIZER

main48820-17020iSW2#199001-199201

sub48820-17030

main48820-17030iSW2#199201-199506

sub48820-17040

main48820-17040iSW20199201-199311

48824BRACKET, STABILIZER, FRONT

main48824-17010iSW2#199001-199004

sub48824-17011

main48824-17011iSW2#199004-199110

main48824-17021iSW2#199201-199506

main48824-17030iSW2#199110-199201

5304

4881517010BUSH, FRONT STABILIZER BAR, NO.1

main48815-17010

4881517050BUSH, FRONT STABILIZER BAR, NO.1

main48815-17050

9011908570

main90119-08570

9011908727

main90119-08727

9011910520

main90119-10520

9017016183

main90170-16183

9017908097

main90179-08097

9017910054

main90179-10054

9017910126

main90179-10126

9017912025

main90179-12025

9020110005

main90201-10005

9451201600

main94512-01600

33 parts on this diagram · 2 diagrams in section
